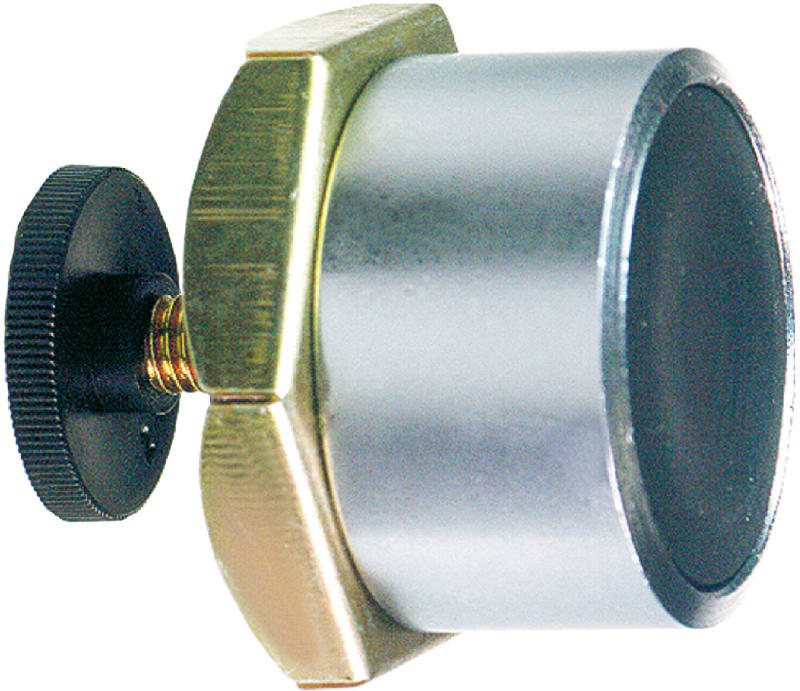

Schneider Electric Manual overload reset push button, Harmony XB4, metal, flush, red, 22mm, 30...130mm actuation distance, unmarked XB4BA941

Schneider Electric XB4BA941 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Resetknapp Mek.Red 30-130 mm.

Manufacturer part number (MPN)

XB4BA941

EAN / GTIN

3389110102154

Sales unit

pcs

Package quantity

80 pcs

Range of product

Harmony XB4

Product or component type

Manual overload reset push-button

Device short name

XB4

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Head type

Standard

Mounting diameter

22.5 mm

Operator profile

Red flush, unmarked

Activating distance

30…130 mm

Product weight

0.058 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Shape of signaling unit head

Round

Operating travel

14 mm

Mechanical durability

5000000 cycles

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-5-5; IEC 60947-1; UL 508; JIS C8201-5-1; CSA C22.2 No 14; IEC 60947-5-4; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Number of Units in Package 1

1

Number of Units in Package 2

80

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/white

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

High

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

No

Country of origin

France

HS Code

8538.90
