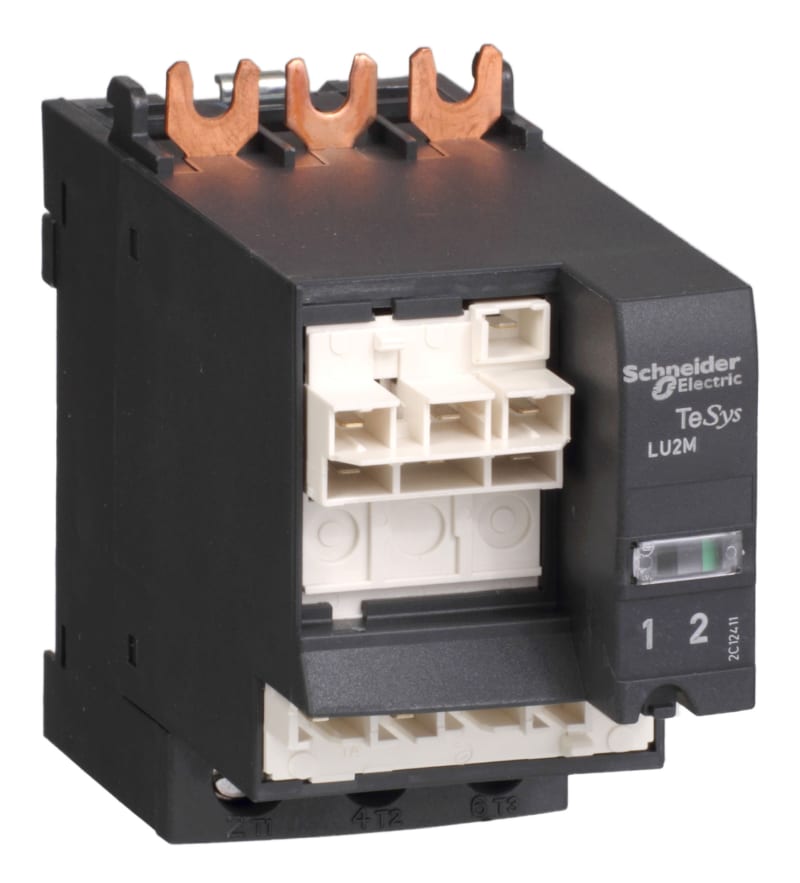

Reversing Switch V. 32A 110-240V (LU2MB0FU)

Schneider Electric LU2MB0FU Direction of rotation angle mod 32A 110-240V.

Manufacturer part number (MPN)

LU2MB0FU

EAN / GTIN

3389110363807

Sales unit

pcs

Package quantity

12 pcs

Voltage

110-240 V

Rated current

32 A

Range

TeSys

Device short name

LU2MB

Product or component type

Reverser block

Device mounting

Direct mounting

Device application

Motor control

[Ie] rated operational current

38 A

[Uc] control circuit voltage

110...240 V AC 50/60 Hz; 110...220 V DC

Current consumption

1000 mA at 110...220 V DC I maximum while closing; 1000 mA at 110...240 V AC I maximum while closing

[Ue] rated operational voltage

690 V AC power circuit

Network frequency

40...60 Hz

Inrush restraint duration

25 ms AC; 15 ms DC

Operating time

150 ms with change of direction; 75 ms without change of direction

Standards

EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier

Product certifications

CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Marine

[Ui] rated insulation voltage

690 V conforming to IEC 60947-6-2; 600 V conforming to UL 60947-4-1; 600 V conforming to CSA C22.2 No 60947-4-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-6-2

Fixing mode

Plug-in

Connections - terminals

Control circuit: screw clamp terminals 1 cable(s) 0.34…1.5 mm² (external diameter: 3 mm) flexible with cable end; Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) flexible without cable end; Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) rigid; Control circuit: screw clamp terminals 2 cable(s) 0.34…1.5 mm² (external diameter: 3 mm) flexible with cable end; Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) flexible without cable end; Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) rigid; Power circuit: screw clamp terminals 1 cable(s) 1…10 mm² (external diameter: 4 mm) rigid; Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² (external diameter: 4 mm) flexible with cable end; Power circuit: screw clamp terminals 1 cable(s) 2.5…10 mm² (external diameter: 4 mm) flexible without cable end; Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² (external diameter: 4 mm) flexible with cable end; Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² (external diameter: 4 mm) rigid; Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm² (external diameter: 4 mm) flexible without cable end

Tightening torque

Control circuit: 0.8…1.2 N.m flat screwdriver 5 mm; Control circuit: 0.8…1.2 N.m Philips No 2 screwdriver 5 mm; Power circuit: 1.9…2.5 N.m flat screwdriver 6 mm; Power circuit: 1.9…2.5 N.m Philips No 2 screwdriver 6 mm

Width

45 mm

Height

80 mm

Depth

105 mm

Product weight

0.4 kg

Compatibility code

LU2MB

IP degree of protection

IP20 conforming to IEC 60947-1 (front panel and wired terminals); IP20 conforming to IEC 60947-1 (other faces); IP40 conforming to IEC 60947-1 (front panel outside connection zone)

Protective treatment

TH conforming to IEC 60068

Ambient air temperature for operation

-25…60 °C with LUCM; -25…70 °C with LUCA, LUCB, LUCC, LUCD

Ambient air temperature for storage

-40…85 °C

Fire resistance

960 °C parts supporting live components conforming to IEC 60695-2-12; 650 °C conforming to IEC 60695-2-12

Operating altitude

2000 m

Shock resistance

10 gn power poles open conforming to IEC 60068-2-27; 15 gn power poles closed conforming to IEC 60068-2-27

Vibration resistance

2 gn (f= 5…300 Hz) power poles open conforming to IEC 60068-2-27; 4 gn (f= 5…300 Hz) power poles closed conforming to IEC 60068-2-27

Resistance to electrostatic discharge

8 kV level 3, in open air conforming to IEC 61000-4-2; 8 kV level 4, on contact conforming to IEC 61000-4-2

Resistance to radiated fields

10 V/m level 3 conforming to IEC 61000-4-3

Resistance to fast transients

2 kV class 3 serial link conforming to IEC 61000-4-4; 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4

Non-dissipating shock wave

1 kV serial mode conforming to IEC 60947-6-2; 2 kV common mode conforming to IEC 60947-6-2

Immunity to radioelectric fields

10 V conforming to IEC 61000-4-6

Country of origin

FR

Warranty (in months)

18

Function

Reversing contactor

Rated operation power at AC-3, 400 V

18.5 kW

Rated operation current Ie at AC-3, 400 V

38 A

Suitable for rail mounting

Yes

Rated control supply voltage AC 50 Hz

110–240 V

Rated control supply voltage AC 60 Hz

110–240 V

Rated control supply voltage DC

110–240 V

Voltage type (operating voltage)

AC/DC

Degree of protection (IP)

IP20

Type of electrical connection of main circuit

Screw connection

Operating voltage AC 50 Hz

690 V

Operating voltage AC 60 Hz

690 V

Voltage type for actuating

AC/DC

Rated operation power NEMA

14.9 kW

HS Code

8536.20
