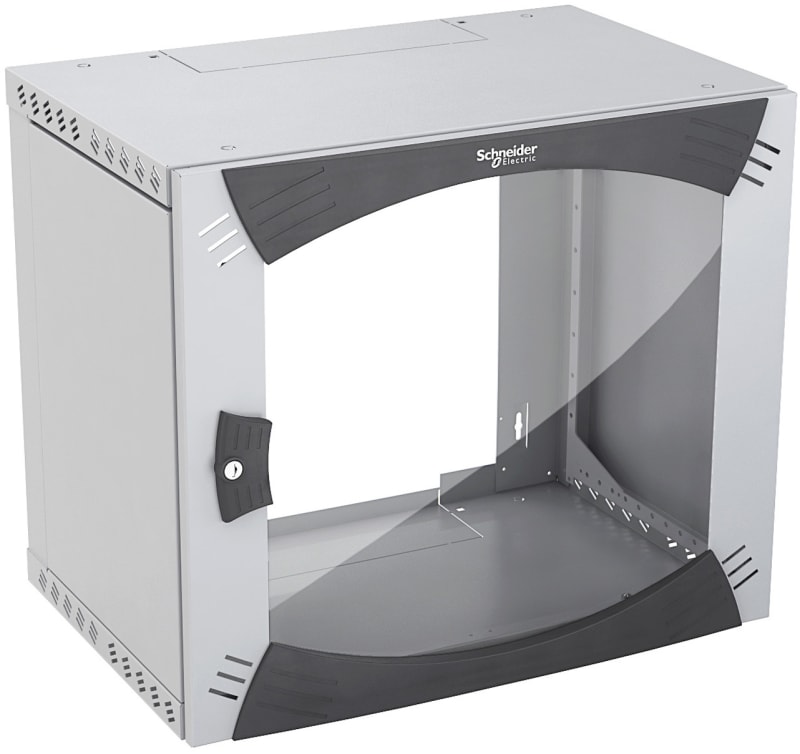

Schneider Actassi OPB 18U Wall-Mount Cabinet, W600 x D500, Glazed Door

Schneider Electric NSYOPB18U5F Actassi 19-inch wall-mount cabinet, 18U height (915 mm) x 600 mm width x 500 mm depth, light-grey RAL 7035 sheet steel with a sekurit-glass front door. Two fixed 19-inch uprights recessed 120 mm from the front on a 25 mm pitch; top, bottom, rear and side panels removable tool-free, 50 kg static load capacity. IP20 / IK08 to EIA-310D and IEC 60297-3-100.

Manufacturer part number (MPN)

NSYOPB18U5F

EAN / GTIN

3606480169878

Sales unit

pcs

Package quantity

2 pcs

Range

Actassi

Product name

Actassi OPB

Product or component type

19" enclosure

Device application

Cabling

applications

To protect network connectivity equipment; To mount 19" equipment

enclosure type

Open box

support equipment

2 x fixed 19" uprights recessed of 120 mm from the front (pitch 25 mm)

front face

Glazed door

Door type

Front glazed door - with 1 point locking system (key: 333) - reversible opening at 180 °

Accessibility for operation

Rear; Front; Side

Removable parts

Front door removable toolless; Top blanking plate; Bottom blanking plate; Rear blanking plate; Side panels removable toolless

colour

Light grey (RAL 7035)

Device composition

3 x cable entries; 1 x glazed door front; 2 x panels side; 2 x 19" uprights front; 1 x open structure

load rating

50 kg static; 3 kg by unit

back face

Cut-out

side face

Panel

Number of cut-out

1 cut-outside; 1 cut-outbottom; 1 cut-outtop

installation mode

Wall mounted

Material

Sheet steel: structure; Sheet steel: door; Sekurit glass: door; Galvanized steel: upright

Surface finish

Epoxy-polyester powder

Width

600 mm

Height

915 mm

Depth

500 mm

Product weight

31.72 kg

Number of rack unit

18U

Targeted region

Europe

IK degree of protection

IK08 conforming to IEC 62262

IP degree of protection

IP20 conforming to IEC 60529

Standards

EIA-310D; IEC 60297-3-100

Number of Units in Package 1

1

Number of Units in Package 2

2

Warranty (in months)

18

Mounting level

Front side

Model

With permanent frame

Type of profile rail

None

Number of doors

1

Type of ventilation

None

Number of height units

18

Max. load capacity

50 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

Yes

Demountable

Yes

Surface finishing

Powder coating

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Romania

HS Code

9403.20
