DIN sk.forsenket PrismaSeT G B600MM
Pricing
Request a quote
We reply within 24 hours
Product Description

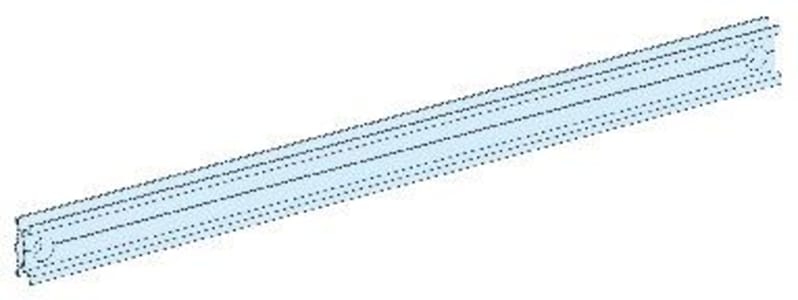

Schneider Electric LVS03003 Mounting Rail-DIN-forsenket-for modular products -PrismaSeT G-B600mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03003
- EAN / GTIN
- 3606481875433
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Rail
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G
- Type of rail
- Rear; Modular
- Installed device
- Altistart: ATS01N
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Pack enclosure - width 555 mm
- Number of vertical modules [50 mm]
- 5 module(s): ATS01N in 600 mm Widefloor-standing enclosure; 5 module(s): ATS01N in 600 mm Widewall-mounted enclosure; 6 module(s): ATS01N in 600 mm Widefloor-standing enclosure; 6 module(s): ATS01N in 600 mm Widewall-mounted enclosure; 5 module(s): ATS01N in 555 mm WidePack enclosure; 6 module(s): ATS01N in 555 mm WidePack enclosure
- 9 mm pitches
- 48
- Quantity per set
- Set of 1
- Height
- 35 mm
- Width
- 464 mm
- Depth
- 31 mm
- Product weight
- 0.18 kg
- Colour
- Natural
- Material
- Metal
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 3.600 cm
- Package 1 Length
- 46.500 cm
- Package 1 Weight
- 156.400 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 60
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 10.084 kg
- Country of origin
- FR
- Warranty (in months)
- 18
