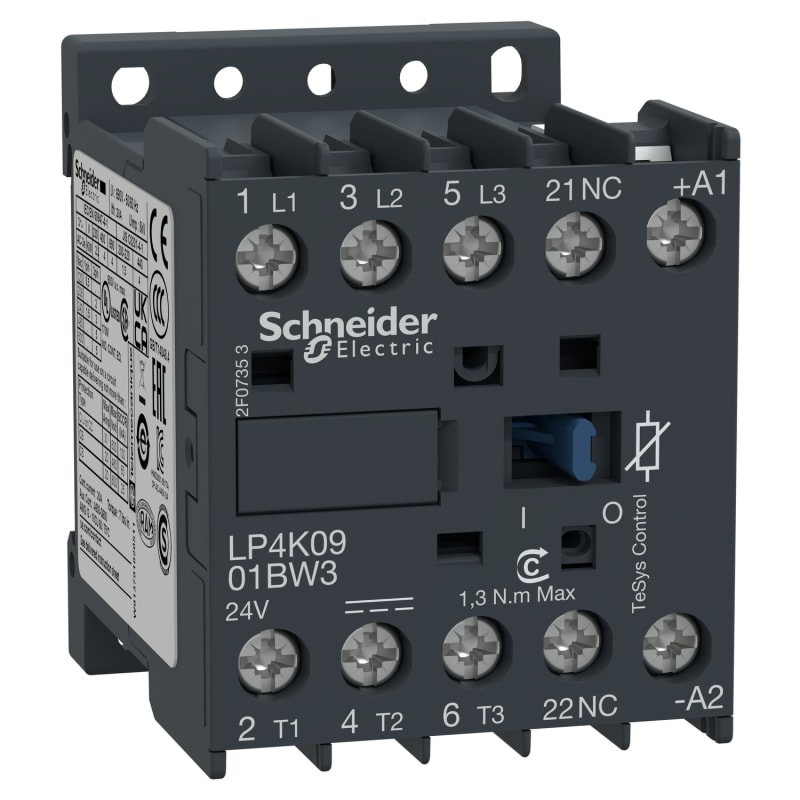

Schneider Electric TeSys K contactor - 3P - AC-3 <= 440 V 9 A - 1 NC aux. - 24 V DC coil LP4K0901BW3

Schneider Electric LP4K0901BW3 Contactor 9A, 3P+1Br.

Manufacturer part number (MPN)

LP4K0901BW3 EAN / GTIN: 3389110428575 HS code: 8536.90 Sales unit: pcs Package quantity: 40 pcs Number of poles: 3 Range: TeSys Product or component type: Contactor Device short name: LP4K Contactor application: Motor control; Resistive load Utilisation category: AC-3; AC-3e; AC-1; AC-4 Poles description: 3P power pole contact composition: 3 NO [Ue] rated operational voltage: Power circuit: <= 690 V AC <= 400 Hz; Signalling circuit: <= 690 V AC <= 400 Hz [Ie] rated operational current: 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit; 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit Control circuit type: DC wide range [Uc] control circuit voltage: 24 V DC Motor power kW: 2.2 kW at 220...230 V AC 50/60 Hz AC-3; 4 kW at 380...415 V AC 50/60 Hz AC-3; 4 kW at 440/690 V AC 50/60 Hz AC-3; 2.2 kW at 220...230 V AC 50/60 Hz AC-3e; 4 kW at 380...415 V AC 50/60 Hz AC-3e; 4 kW at 440/690 V AC 50/60 Hz AC-3e; 2.2 kW at 220...230 V AC 50/60 Hz AC-4; 4 kW at 380...415 V AC 50/60 Hz AC-4; 4 kW at 440/690 V AC 50/60 Hz AC-4 Auxiliary contact composition: 1 NC [Uimp] rated impulse withstand voltage: 8 kV Overvoltage category: III [Ith] conventional free air thermal current: 20 A (at 60 °C) for power circuit; 10 A (at 50 °C) for signalling circuit Irms rated making capacity: 110 A AC for power circuit conforming to IEC 60947; 110 A AC for signalling circuit conforming to IEC 60947 Rated breaking capacity: 110 A at 220...230 V conforming to IEC 60947; 110 A at 380...400 V conforming to IEC 60947; 110 A at 415 V conforming to IEC 60947; 110 A at 440 V conforming to IEC 60947; 80 A at 500 V conforming to IEC 60947; 70 A at 660...690 V conforming to IEC 60947 [Icw] rated short-time withstand current: 90 A 50 °C - 1 s for power circuit; 85 A 50 °C - 5 s for power circuit; 80 A 50 °C - 10 s for power circuit; 60 A 50 °C - 30 s for power circuit; 45 A 50 °C - 1 min for power circuit; 40 A 50 °C - 3 min for power circuit; 20 A 50 °C - >= 15 min for power circuit; 80 A - 1 s for signalling circuit; 90 A - 500 ms for signalling circuit; 110 A - 100 ms for signalling circuit Associated fuse rating: 25 A gG at <= 440 V for power circuit; 25 A aM for power circuit; 10 A gG for signalling circuit conforming to IEC 60947; 10 A gG for signalling circuit conforming to VDE 0660 Average impedance: 3 mOhm - Ith 20 A 50 Hz for power circuit [Ui] rated insulation voltage: Power circuit: 600 V conforming to UL 508; Power circuit: 690 V conforming to IEC 60947-4-1; Signalling circuit: 690 V conforming to IEC 60947-4-1; Signalling circuit: 690 V conforming to IEC 60947-5-1; Signalling circuit: 600 V conforming to UL 508; Power circuit: 600 V conforming to CSA C22.2 No 14; Signalling circuit: 600 V conforming to CSA C22.2 No 14 Insulation resistance: > 10 MOhm for signalling circuit Inrush power in W: 1.8 W (at 20 °C) Hold-in power consumption in W: 1.8 W at 20 °C Heat dissipation: 1.8 W Control circuit voltage limits: Operational: 0.7...1.3 Uc (at = 0.10 Uc (at <50 °C) Connections - terminals: Screw clamp terminals 1 cable(s) 1.5…4 mm²solid; Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 1.5…4 mm²solid; Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end; Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end Maximum operating rate: 3600 cyc/h Coil technology: With integral suppression device Auxiliary contacts type: type instantaneous 1 NC minimum switching current: 5 mA for signalling circuit minimum switching voltage: 17 V for signalling circuit Mounting support: Rail; Plate Tightening torque: 0.8…1.3 N.m - on screw clamp terminals Philips No 2; 0.8…1.3 N.m - on screw clamp terminals flat Ø 6 mm; 0.8…1.3 N.m - on screw clamp terminals pozidriv No 2 Operating time: 10...20 ms coil de-energisation and NO opening; 30...40 ms coil energisation and NO closing Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 30 Mcycles Electrical durability: 1.3 Mcycles 9 A AC-3 at Ue <= 440 V; 1.3 Mcycles 9 A AC-3e at Ue <= 440 V; 0.16 Mcycles 20 A AC-1 at Ue <= 690 V; 0.02 Mcycles 54 A AC-4 at Ue <= 440 V Height: 58 mm Width: 45 mm Depth: 57 mm Product weight: 0.235 kg Standards: EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4 Product certifications: CB Scheme; CCC; UL; CSA; EAC; CE; UKCA IP degree of protection: IP2X Ambient air temperature for operation: -25…50 °C Ambient air temperature for storage: -50…80 °C Operating altitude: 2000 m without derating Flame retardance: V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102 Country of origin: FR Warranty (in months): 18

HS Code

8536.90

• EAN 3389110428575
• SAP 1000053726
• Code 8878788
