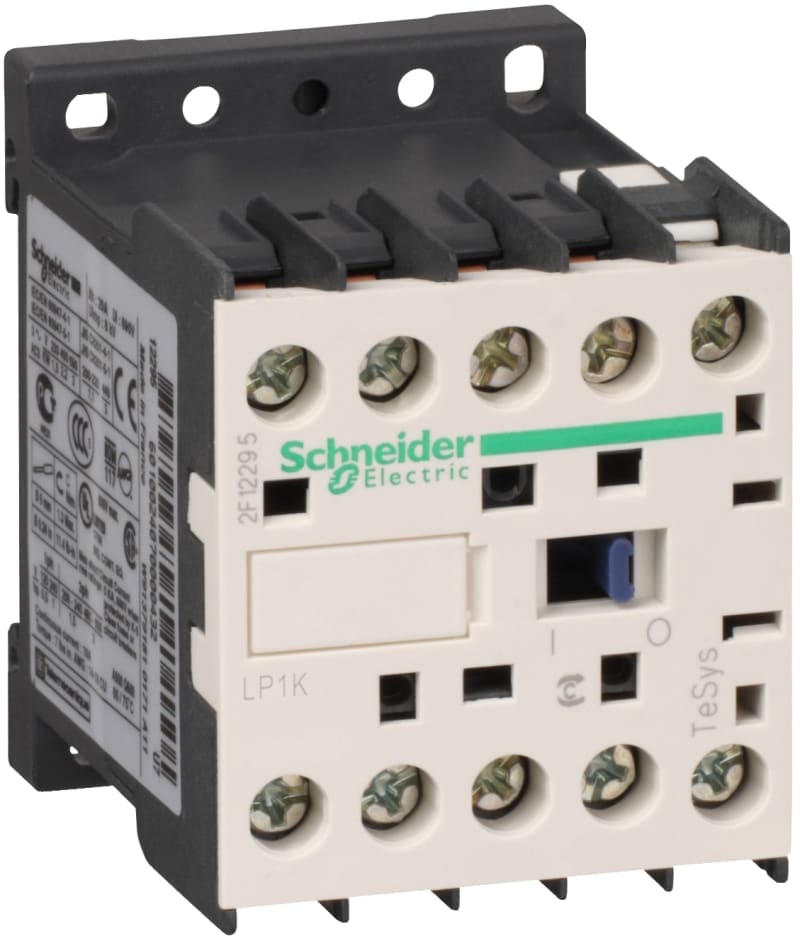

Schneider Electric TeSys K contactor - 4P (2 NO + 2 NC) - AC-1 <= 440 V 20 A - 24 V DC coil LP1K09008BD

Schneider Electric LP1K09008BD "Mini Contactors. Screw Mounting or DIN-rail 35 mm. ""Snap-on"" auxiliary contactak.

Manufacturer part number (MPN)

LP1K09008BD

EAN / GTIN

3389110495836

HS code

8536.90

Sales unit

pcs

Package quantity

40 pcs

Voltage

24 V DC

Contact configuration

2 NO / 2 NC

Range

TeSys

Product or component type

Contactor

Device short name

LP1K

Contactor application

Resistive load

Utilisation category

AC-1

Poles description

4P

power pole contact composition

2 NO + 2 NC

[Ue] rated operational voltage

Power circuit: <= 690 V AC <= 400 Hz; Signalling circuit: <= 690 V AC <= 400 Hz

[Ie] rated operational current

20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit

Control circuit type

DC standard

[Uc] control circuit voltage

24 V DC

[Uimp] rated impulse withstand voltage

8 kV

Overvoltage category

III

[Ith] conventional free air thermal current

20 A (at 60 °C) for power circuit; 10 A (at 50 °C) for signalling circuit

Irms rated making capacity

110 A AC for power circuit conforming to IEC 60947

Rated breaking capacity

110 A at 220...230 V conforming to IEC 60947; 110 A at 380...400 V conforming to IEC 60947; 110 A at 415 V conforming to IEC 60947; 110 A at 440 V conforming to IEC 60947; 80 A at 500 V conforming to IEC 60947; 70 A at 660...690 V conforming to IEC 60947

[Icw] rated short-time withstand current

90 A 50 °C - 1 s for power circuit; 85 A 50 °C - 5 s for power circuit; 80 A 50 °C - 10 s for power circuit; 60 A 50 °C - 30 s for power circuit; 45 A 50 °C - 1 min for power circuit; 40 A 50 °C - 3 min for power circuit; 20 A 50 °C - >= 15 min for power circuit

Associated fuse rating

25 A gG at <= 440 V for power circuit; 25 A aM for power circuit

Average impedance

3 mOhm - Ith 20 A 50 Hz for power circuit

[Ui] rated insulation voltage

Power circuit: 600 V conforming to UL 508; Power circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 600 V conforming to CSA C22.2 No 14

Inrush power in W

3 W (at 20 °C)

Hold-in power consumption in W

3 W at 20 °C

Heat dissipation

1.3 W

Control circuit voltage limits

Operational: 0.8...1.15 Uc (at = 0.10 Uc (at <50 °C)

Connections - terminals

Screw clamp terminals 1 cable(s) 1.5…4 mm²solid; Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 1.5…4 mm²solid; Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end; Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end

Maximum operating rate

3600 cyc/h

Coil technology

Without built-in suppressor module

Mounting support

Rail; Plate

Tightening torque

0.8…1.3 N.m - on screw clamp terminals Philips No 2; 0.8…1.3 N.m - on screw clamp terminals flat Ø 6 mm

Operating time

30...40 ms coil energisation and NO closing; 10 ms coil de-energisation and NO opening; 25...35 ms coil energisation and NC opening; 15 ms coil de-energisation and NC closing

Safety reliability level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Mechanical durability

10 Mcycles

Electrical durability

0.16 Mcycles 20 A AC-1 at Ue <= 690 V

Height

58 mm

Width

45 mm

Depth

57 mm

Product weight

0.225 kg

Standards

EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4

Product certifications

CB Scheme; CCC; UL; CSA; EAC; CE; UKCA

IP degree of protection

IP2X

Ambient air temperature for operation

-25…50 °C

Ambient air temperature for storage

-50…80 °C

Operating altitude

2000 m without derating

Flame retardance

V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110495836
• SAP 1000254185
• Code 8115583
