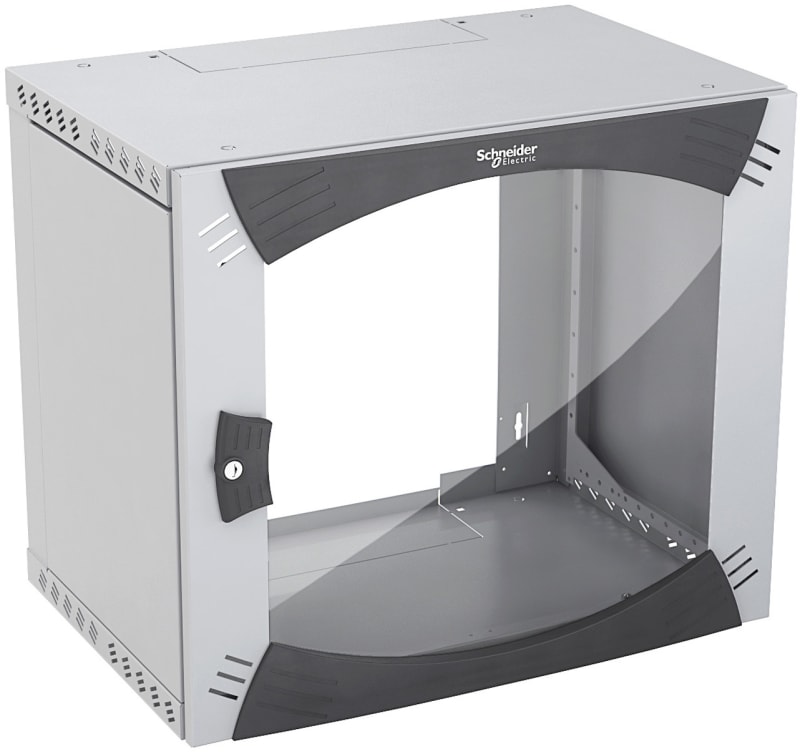

Schneider Electric Wall-Mounted Open Box 12U W600 D400 Fixed 19" Glazed Door R7035 NSYOPB12U4F
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYOPB12U4F Actassi 19" wall-mount cabinet 12U B600 D400 with glass door R7035.
Technical Specifications
- Manufacturer part number (MPN)
- NSYOPB12U4F
- EAN / GTIN
- 3606480169786
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- Actassi
- Product name
- Actassi OPB
- Product or component type
- 19" enclosure
- Device application
- Cabling
- applications
- To protect network connectivity equipment; To mount 19" equipment
- enclosure type
- Open box
- support equipment
- 2 x fixed 19" uprights recessed of 120 mm from the front (pitch 25 mm)
- front face
- Glazed door
- Door type
- Front glazed door - with 1 point locking system (key: 333) - reversible opening at 180 °
- Accessibility for operation
- Side; Rear; Front
- Removable parts
- Front door removable toolless; Top blanking plate; Bottom blanking plate; Rear blanking plate; Side panels removable toolless
- colour
- Light grey (RAL 7035)
- Device composition
- 3 x cable entries; 1 x glazed door front; 2 x panels side; 2 x 19" uprights front; 1 x open structure
- load rating
- 50 kg static; 3 kg by unit
- back face
- Cut-out
- side face
- Panel
- Number of cut-out
- 1 cut-outside; 1 cut-outbottom; 1 cut-outtop
- installation mode
- Wall mounted
- Material
- Sheet steel: structure; Sheet steel: door; Sekurit glass: door; Galvanized steel: upright
- Surface finish
- Epoxy-polyester powder
- Width
- 600 mm
- Height
- 650 mm
- Depth
- 400 mm
- Product weight
- 23 kg
- Number of rack unit
- 12U
- Targeted region
- Europe
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP20 conforming to IEC 60529
- Standards
- EIA-310D; IEC 60297-3-100
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Warranty (in months)
- 18
- Mounting level
- Front side
- Model
- With permanent frame
- Type of profile rail
- None
- Number of doors
- 1
- Type of ventilation
- None
- Number of height units
- 12
- Max. load capacity
- 50 kg
- With roof plate
- Yes
- With earthing
- No
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- Yes
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480169786
- SAP 1000396441
- Code 81091958
