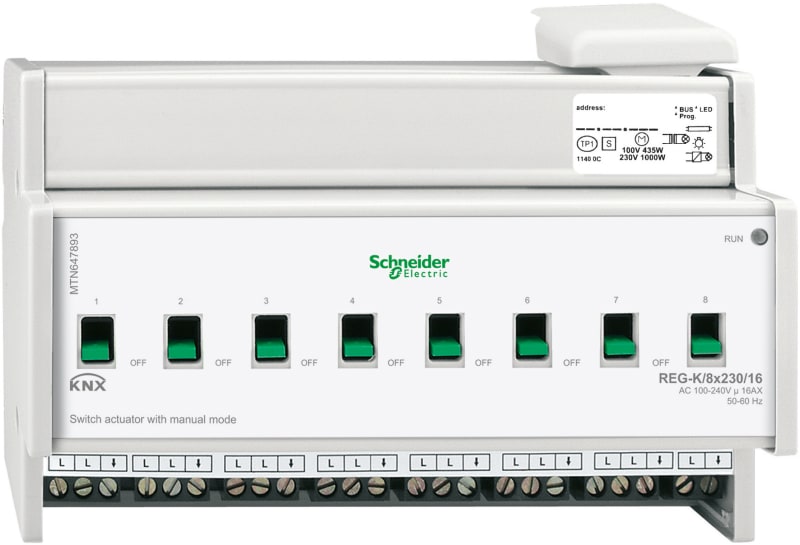

Schneider Electric Switch actuator REG-K/8X230/16 with manual mode, light grey MTN647893

KNX binary output 8X230V/16A.

Manufacturer part number (MPN)

MTN647893

EAN / GTIN

3606485011790

Sales unit

pcs

Package quantity

6 pcs

Range of product

KNX

Product or component type

Switch actuator

Operating mode

Manual

Bus type

KNX

Modular device additional info

Connectable with different phases

Number of contacts

8

Switching current

16 A

Colour tint

Light grey

Power supply input current

10 mA

Total number of 18 mm modules

8

Mounting support

DIN rail

Device mounting

DIN rail

[Ue] rated operational voltage

100...240 V

Network frequency

50...60 Hz

[In] rated current

16 A

Load type

Incandescent lamps: <= 3600 W, 230 V AC; Halogen lamps: <= 2500 W, 230 V AC; Incandescent lamps: <= 1600 W, 100 V AC; Incandescent lamps: <= 3840 W, 240 V AC; Halogen lamps: <= 1086 W, 100 V AC; Halogen lamps: <= 2608 W, 240 V AC; Parallel compensated fluorescent lamp: <= 1086 VA, 100 V AC; Parallel compensated fluorescent lamp: <= 2500 VA, 230 V AC; Parallel compensated fluorescent lamp: <= 2608 VA, 240 V AC; Capacitive: , 16 A, 200 µF, 100...240 V AC

Device presentation

Complete product

Main colour tint

Light grey

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.300 cm

Package 1 Width

13.000 cm

Package 1 Length

28.000 cm

Package 1 Weight

626.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

6

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.148 kg

Country of origin

LV

Warranty (in months)

18

Width in number of modular spacings

8

Max. switching power

3600 W

Output power

3600 W

Max. number of switching contacts

8

Max. switching current

16 A

Rated current

16 A

Degree of protection (IP)

IP20

HS Code

8537.10
