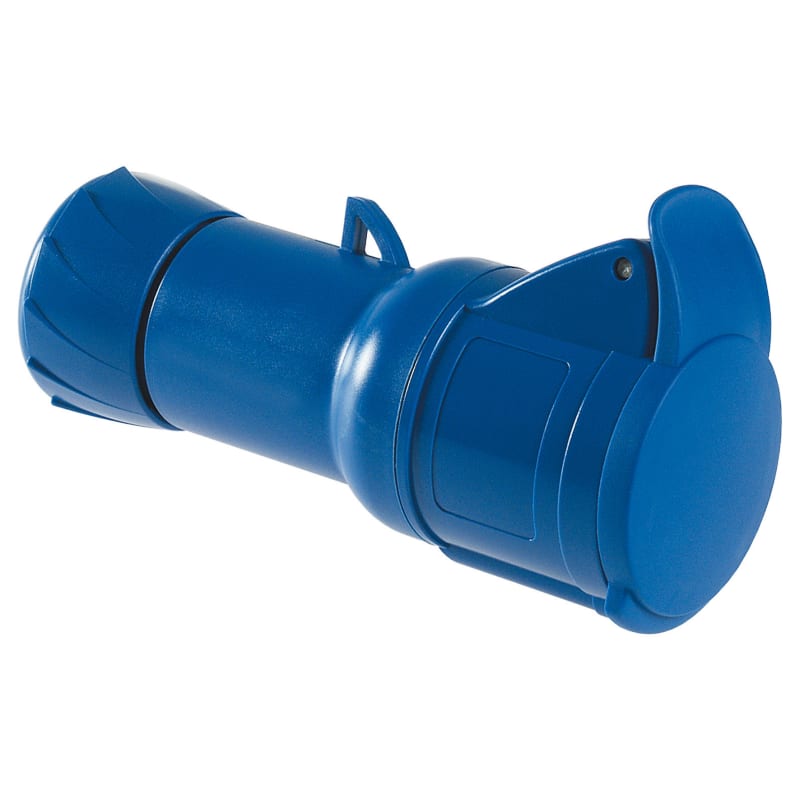

Schneider Electric Wander socket outlet, Mureva PK, Fast connection, 32A, 2P+E, 220V, IP44 PKY32M423

Schneider Electric PKY32M423 PratiKa coupler socket - straight - 32 A - 2P + E - 200.250 V AC - IP44.

Manufacturer part number (MPN)

PKY32M423

EAN / GTIN

3303432010348

Sales unit

pcs

Package quantity

10 pcs

Voltage

230 V

IP rating

IP44

Rated current

32 A

Range

Mureva

Product or component type

Wander socket

Device short name

Mureva fast

Plug, socket category

Low voltage

Poles description

2P + E

Network type

AC

Outlet standard

Industrial

Plug, socket, control station shape

Straight

[In] rated current

32 A

[Ue] rated operational voltage

200...250 V

Network frequency

50/60 Hz

Ground lug clockwise position

6 h

Plug, socket material

Housing: self-extinguishing engineering polymer

Contacts material

Sleeves: brass

Connections - terminals

Fast connection

Cable cross section

2.5…6 mm²

Cable outer diameter

11.5…21 mm

cable entry

Fair lead; Cable gland

Thread type

Pg 21

Product weight

0.244 kg

Height

98 mm

Width

98 mm

Depth

165 mm

Colour

Grey (RAL 7035)

Voltage colour

Blue

Standards

IEC 60309-1; IEC 60309-2

IP degree of protection

IP44 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 62262

Fire resistance

850 °C conforming to IEC 60695-2-1

Relative humidity

50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C

Ambient air temperature for operation

35 °C ( 86400 s ) ; -25…40 °C

Warranty (in months)

18

IEC-amperage

32 A

Number of poles

3

Voltage according to EN 60309-2

200-250 V (50+60 Hz) blue

Clock hour position

6 h

Identification colour

Blue

RAL-number

7035

Degree of protection (IP)

IP44

Connection system

Screwless terminal

Insert direction

Straight

Material

Plastic

Military model

No

Country of origin

Italy

HS Code

8536.69

• EAN 3303432010348
• SAP 1200199617
• Code 82176567
