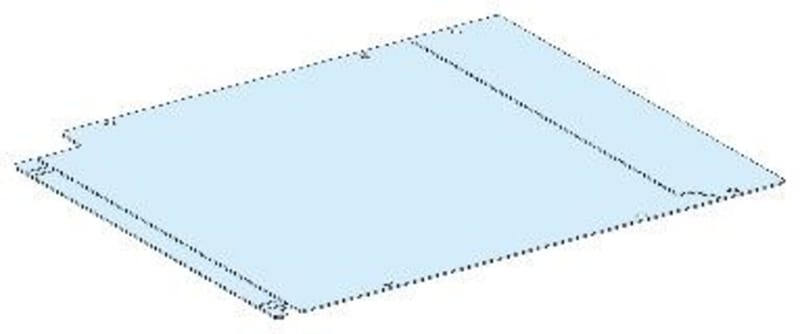

Schneider Electric LVS04919 Plain barrier for bottom horizontal busbars, W = 800 mm, D = 400 mm
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LVS04919 Plain barrier for bottom horizontal busbars, W = 800 mm, D = 400 mm is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Package quantity: 10 pcs; Range: PrismaSeT; Range of product: PrismaSeT P; Product or component type: Plain barrier; Range compatibility: PrismaSeT PrismaSeT P framework.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04919
- EAN / GTIN
- 3606481880284
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Plain barrier
- Accessory / separate part category
- Insulation accessory
- Range compatibility
- PrismaSeT PrismaSeT P framework
- Cubicle partitioning form
- Form 2
- installation description
- Cubicle - width 800 mm, depth 400 mm; Cubicle - width 650 + 150 mm, depth 400 mm
- Installed device
- Horizontal busbar
- Quantity per set
- Set of 1
- Width
- 400 mm
- Depth
- 466 mm
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Product weight
- 1.14 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 35.000 cm
- Package 1 Length
- 47.000 cm
- Package 1 Weight
- 2.109 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 10
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 21.793 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 800 mm
- Suitable for enclosure building depth
- 400 mm
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- With lock
- No
- Construction type
- Individual part
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606481880284
- SAP 1200547177
- Code 82879146
Product Documentation
