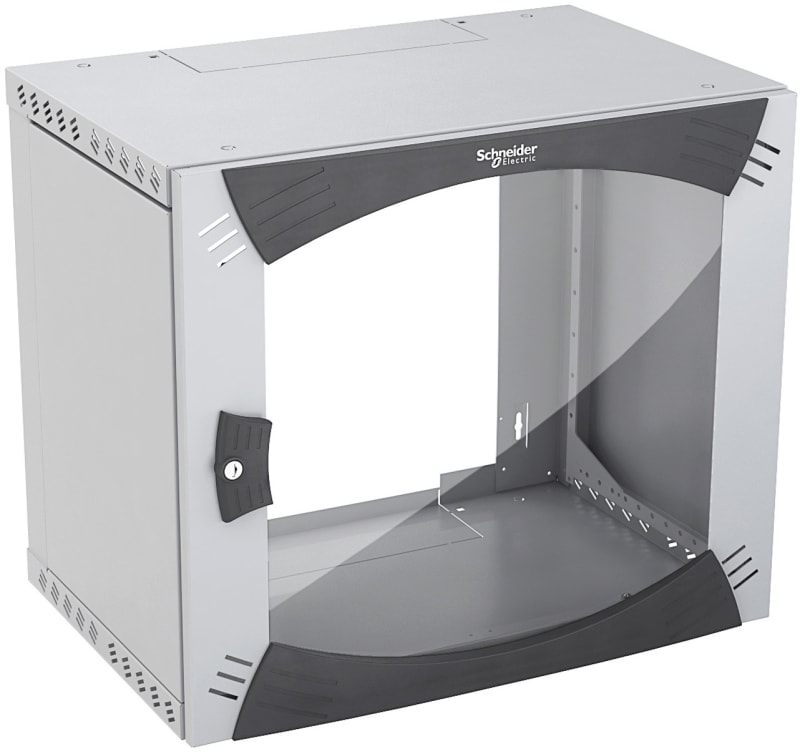

Schneider Electric Actassi OPB Wall-Mount 19-inch Cabinet 9U, W600 D400, Glazed Door
Pricing
Request a quote
We reply within 24 hours
Product Description
Nine-rack-unit wall-mounted open-box 19-inch cabinet from the Actassi OPB range, 600 mm wide by 400 mm deep in light grey (RAL 7035) with a sekurit-glass glazed front door and 333-key locking. Two fixed 19-inch uprights recessed 120 mm from the front carry active and passive network equipment up to 50 kg static load. IP20 and IK08 rated with front, side and rear accessibility for structured cabling in offices and telecom rooms.
Technical Specifications
- Manufacturer part number (MPN)
- NSYOPB9U4F
- EAN / GTIN
- 3606480169779
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Range
- Actassi
- Product name
- Actassi OPB
- Product or component type
- 19" enclosure
- Device application
- Cabling
- applications
- To mount 19" equipment; To protect network connectivity equipment
- enclosure type
- Open box
- support equipment
- 2 x fixed 19" uprights recessed of 120 mm from the front (pitch 25 mm)
- front face
- Glazed door
- Door type
- Front glazed door - with 1 point locking system (key: 333) - reversible opening at 180 °
- Accessibility for operation
- Rear; Front; Side
- Removable parts
- Front door removable toolless; Top blanking plate; Bottom blanking plate; Rear blanking plate; Side panels removable toolless
- colour
- Light grey (RAL 7035)
- Device composition
- 3 x cable entries; 1 x glazed door front; 2 x panels side; 2 x 19" uprights front; 1 x open structure
- load rating
- 50 kg static; 3 kg by unit
- back face
- Cut-out
- side face
- Panel
- Number of cut-out
- 1 cut-outside; 1 cut-outbottom; 1 cut-outtop
- installation mode
- Wall mounted
- Material
- Sheet steel: structure; Sheet steel: door; Sekurit glass: door; Galvanized steel: upright
- Surface finish
- Epoxy-polyester powder
- Width
- 600 mm
- Height
- 515 mm
- Depth
- 400 mm
- Product weight
- 19.85 kg
- Number of rack unit
- 9U
- Targeted region
- Europe
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP20 conforming to IEC 60529
- Standards
- EIA-310D; IEC 60297-3-100
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Warranty (in months)
- 18
- Mounting level
- Front side
- Model
- With permanent frame
- Type of profile rail
- None
- Number of doors
- 1
- Type of ventilation
- None
- Number of height units
- 9
- Max. load capacity
- 50 kg
- With roof plate
- Yes
- With earthing
- No
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- Yes
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480169779
- SAP 1000396440
- Code 8466933
Product Documentation
More from Schneider Electric
Schneider Electric
Mounting Screw TST 4,2X13
3780210
Schneider Electric
Selector switch with LIGHT 3ST.WHITE LED (ZB5AK1313)
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 80 A, 230V AC 50/60Hz coil, screw clamp terminal LC1D65008P7
Schneider Electric
Schneider Electric ZB5AA334 Push button head, plastic, flush, white, Ø22, spring return, marked UP ARROW
Schneider Electric
Schneider Electric INKA-ES101 end piece grey Pv-Inka Es
5504161
Schneider Electric
Schneider Electric Trip unit TM160D, ComPacT NSX160, 3 poles, thermal magnetic protections, 160A rating C163TM160
Schneider Electric
Schneider Electric Trip unit MA12.5, ComPacT NSX100, 3 poles, magnetic protections, motor protection, 12.5A rating C103MA013
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 25 A, magnetic, toggle control, screw clamp terminals GV2LE22
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYOPB9U4F?
- NSYOPB9U4F can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYOPB9U4F.
- What is the HS code for NSYOPB9U4F?
- The customs tariff (HS) code for NSYOPB9U4F is 9403.20.
- Who manufactures NSYOPB9U4F?
- NSYOPB9U4F is a Schneider Electric product in the Office & Onboard Equipment range.
- Is a datasheet available for NSYOPB9U4F?
- Yes — the NSYOPB9U4F datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYOPB9U4F?
- The minimum order quantity is 1.
- Is NSYOPB9U4F available?
- Yes — NSYOPB9U4F is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
