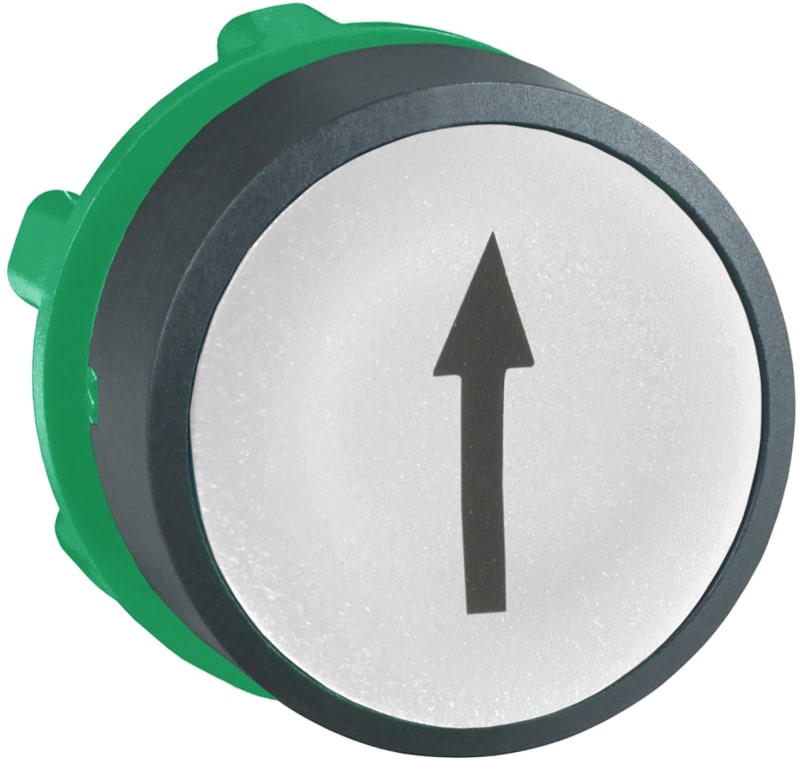

Schneider Electric ZB5AA334 Push button head, plastic, flush, white, Ø22, spring return, marked UP ARROW

Schneider Electric ZB5AA334 Push button head, plastic, flush, white, Ø22, spring return, marked UP ARROW is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Range of product: Harmony XB5; Harmony XALF; Product or component type: Head for non-illuminated push-button; Device short name: ZB5; Bezel material: Dark grey plastic.

Manufacturer part number (MPN)

ZB5AA334

EAN / GTIN

3389110134582

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5; Harmony XALF

Product or component type

Head for non-illuminated push-button

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

White flush, up arrow (black)

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

28 mm

Product weight

0.018 kg

Mechanical durability

10000000 cycles

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Electrical composition code

C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

JIS C8201-5-1; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-1; UL 508; JIS C8201-1

Product certifications

DNV; CSA; BV; LROS (Lloyds register of shipping); UL listed

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

3.400 cm

Package 1 Length

5.400 cm

Package 1 Weight

17.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

4.500 cm

Package 2 Width

3.400 cm

Package 2 Length

26.500 cm

Package 2 Weight

87.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

300

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

5.613 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

White

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Labelled

Yes

Type of button

Flat

Colour front ring

Black

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90
