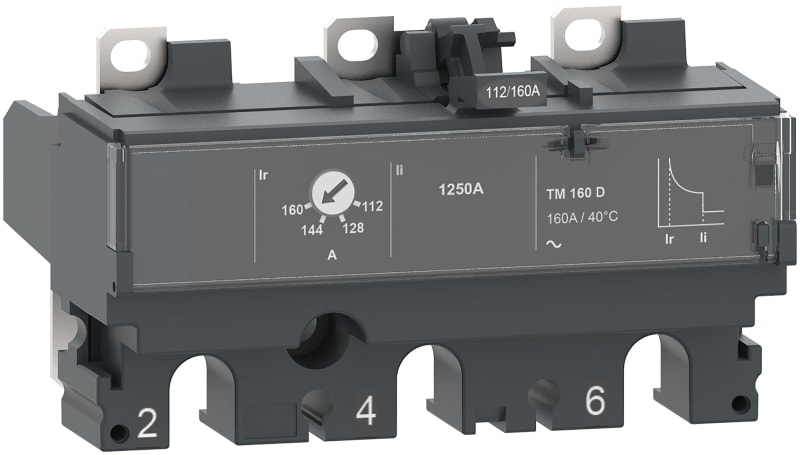

Schneider Electric Trip unit TM160D, ComPacT NSX160, 3 poles, thermal magnetic protections, 160A rating C163TM160

Schneider Electric C163TM160 Thermomagnetic protection for ComPacT NSX circuit breaker-TM160D for NSX160 3P3T 160A.

Manufacturer part number (MPN)

C163TM160

EAN / GTIN

3606481999580

HS code

8536.90

Sales unit

pcs

Package quantity

28 pcs

Trip unit

TM160D

Range

ComPacT

Range of product

ComPacT NSX100...250

Product or component type

Trip unit

Trip unit name

TM-D

Trip unit technology

Thermal-magnetic

Range compatibility

ComPacT NSX160

Device application

Distribution

Poles description

3P

Protected poles description

3D

Trip unit protection functions

LI

Protection type

L : for overload protection (thermal); I : for short-circuit protection (magnetic)

Trip unit rating

160 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable

[Ir] long-time protection pick-up adjustment range

0.7...1 x In

Long-time protection delay adjustment type tr

Fixed

[tr] long-time protection delay adjustment range

120…400 s at 1.5 x In; 15 s at 6 x Ir

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

1250 A

Earth-leakage protection

Without

Standards

EN/IEC 60947-2

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60947-1

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481999580
• SAP 1200533516
• Code 82686547
