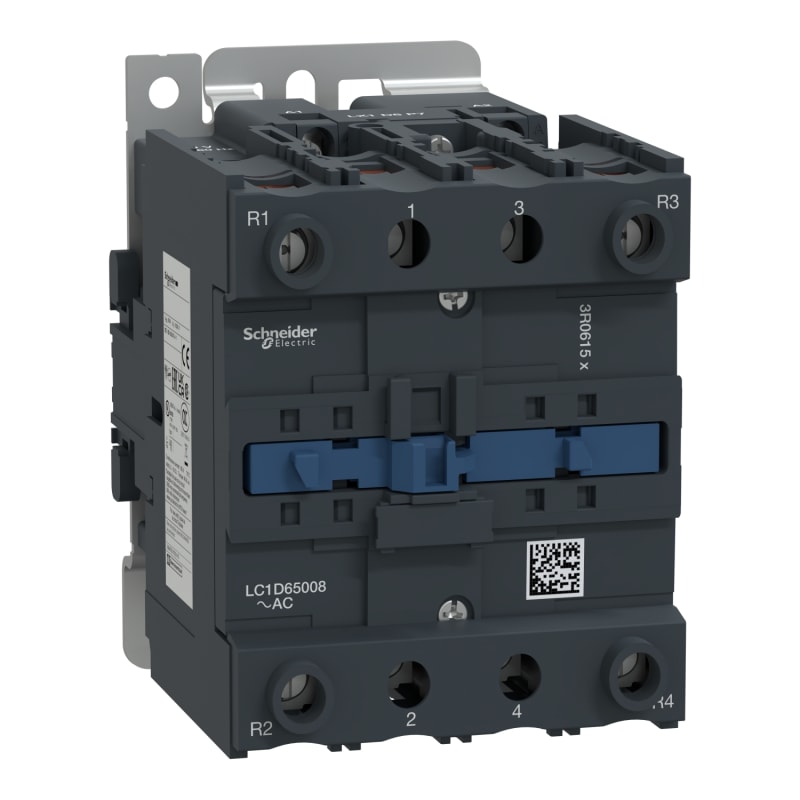

Schneider Electric Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 80 A, 230V AC 50/60Hz coil, screw clamp terminal LC1D65008P7

Schneider Electric LC1D65008P7 — TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. 4-pole contactors with AC coil for motor operation and for non-inductive loads.

Manufacturer part number (MPN)

LC1D65008P7

EAN / GTIN

3389110073119

HS code

8536.90

Sales unit

pcs

Package quantity

5 pcs

Rated current

80 A

Contact configuration

2 NO / 2 NC

Range

TeSys

Range of product

TeSys Deca

Product or component type

Contactor

Device short name

LC1D

Contactor application

Resistive load

Utilisation category

AC-1

Poles description

4P

[Ue] rated operational voltage

Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC

[Ie] rated operational current

80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

[Uc] control circuit voltage

230 V AC 50/60 Hz

Compatibility code

LC1D

Pole contact composition

2 NO + 2 NC

Protective cover

With

[Ith] conventional free air thermal current

80 A (at 60 °C) for power circuit

Irms rated making capacity

1000 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

1000 A at 440 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current

640 A 40 °C - 10 s

HS Code

8536.90

• EAN 3389110073119
• SAP 1000253433
• Code 81140403
