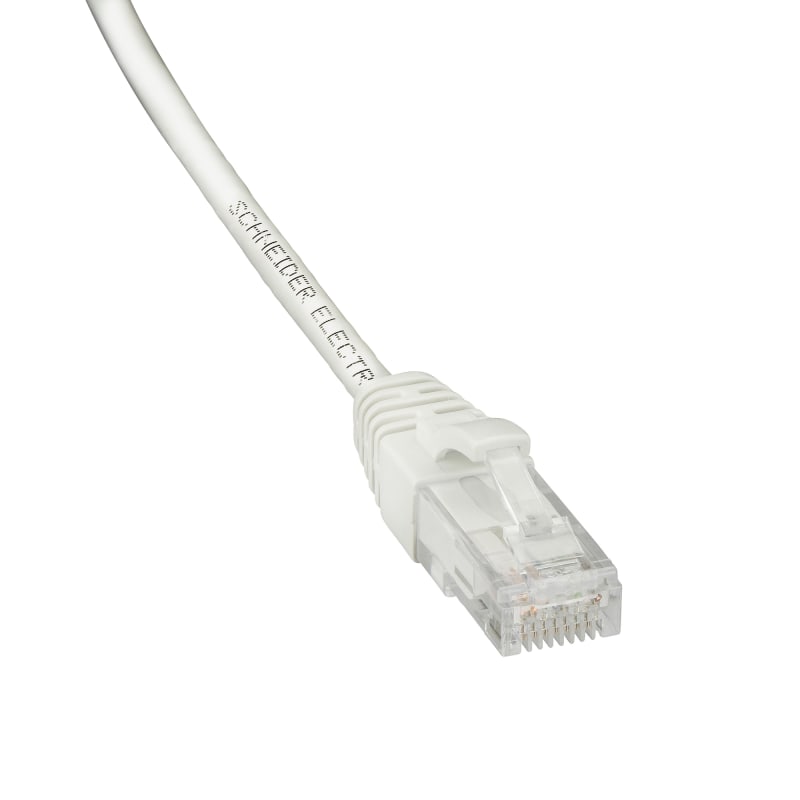

Schneider Electric Patch cord, Actassi, Category 6, U/UTP, LSZH, 1 m, white ACTPC6UULS10WE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ACTPC6UULS10WE Actassi patch cord Cat 6 U/UTP AWG28 halogen-free LSZH, 1 meter, white.
Technical Specifications
- Manufacturer part number (MPN)
- ACTPC6UULS10WE EAN / GTIN: 3606481052179 HS code: 8544.42 Sales unit: pcs Package quantity: 120 pcs range: Actassi product: Patch cord Device application: Communication Colour: White Cable shielding type: U/UTP Type of cable: 4 pair cables length (customizable value in configurator): 1 m Communication network category: 6 Transmission frequency: 250 MHz Contacts material: Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel AWG gauge: 28 AWG Maximum number of cord per bundle: 24 in cabinet for 4PPoE Type 3 (up to 60 W); 12 in cabinet for 4PPoE Type 4 (up to 90 W) Maximum patch cord cumulated length: 10 m with 84 m 2-point permanent link at 20 °C; 7 m with 90 m 2-point permanent link at 20 °C minimum number of matings: 750 cycles Cable outer diameter: 3.8 mm +/- 0.2 mm material: Copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tin plated copper: braid shield; PE (polyethylene): sheath Flame retardance: LSZH Standards: ISO/IEC 11081-2017 performance; TIA/EIA-568-C.2 performance; EN 50173-2018 performance; IEC 61935-2 performance Number of Units in Package 1: 1 Number of Units in Package 2: 120 Warranty (in months): 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481052179
- SAP 1200537717
- Code 82699901
Product Documentation
More from Schneider Electric
Schneider Electric
Busbar for ICV60 ARC 3P+N 24 mod
A9XNW524
Schneider Electric
Ceiling Box, 50 mm, 8+2 entries
IMT36340
Schneider Electric
Standard bend Plastic 20mm
IMT36061
Schneider Electric
Metal Clamp TKK 7-10 nail 2.1X18MM
IMT23610
Schneider Electric
Schneider Electric A9F06306 ACTI9 IC60H Miniature Circuit Breaker 3P 6 A, Curve B
Schneider Electric
Schneider Electric ZBZ33 legend holder 30 x 50 mm with legend 18 x 27 mm unmarked
Schneider Electric
Schneider Electric Auxiliary contact, ACTI9 A9A, iOF/SD+OF, 2 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection A9A26909
Schneider Electric
Thermostat 0-60 C 1NO
NSYCCOTHO
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ACTPC6UULS10WE?
- ACTPC6UULS10WE can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ACTPC6UULS10WE.
- What is the HS code for ACTPC6UULS10WE?
- The customs tariff (HS) code for ACTPC6UULS10WE is 8544.42.
- Who manufactures ACTPC6UULS10WE?
- ACTPC6UULS10WE is a Schneider Electric product in the Cables & Wiring range.
- Is a datasheet available for ACTPC6UULS10WE?
- Yes — the ACTPC6UULS10WE datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ACTPC6UULS10WE?
- The minimum order quantity is 1.
- Is ACTPC6UULS10WE available?
- Yes — ACTPC6UULS10WE is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
