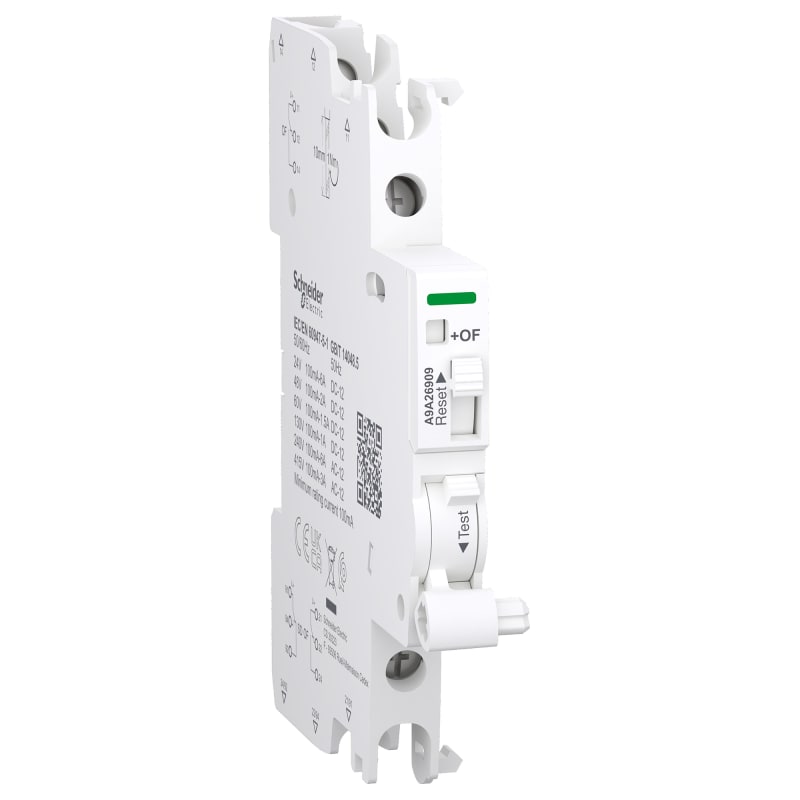

Schneider Electric Auxiliary contact, ACTI9 A9A, iOF/SD+OF, 2 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection A9A26909

Acti9 auxiliary contact – 2 changeover contacts – optional iOF+iOF or iOF+iSD function – for double terminal.

Manufacturer part number (MPN)

A9A26909

EAN / GTIN

3606486115152

Sales unit

pcs

Package quantity

12 pcs

Rated current

6 A

range of product

Acti9

Product or component type

Double OC or fault contact

Device short name

iOF/SD+OF

Signal contacts composition

2 C/O

[In] rated current

0.1…6 A at 24...240 V, AC 50/60 Hz; 0.1…3 A at 415 V, AC 50/60 Hz; 0.1…6 A at 24 V, DC; 0.1…2 A at 48 V, DC; 0.1…1.5 A at 60 V, DC; 0.1…1 A at 130 V, DC

9 mm pitches

1

Standards

EN/IEC 60947-5-1; GB/T 14048.5

Product certifications

CE; UKCA

Quality labels

EAC; CCC; CMIM

Range compatibility

Acti9 iC60; Acti9 iID; Acti9 ARA; Acti9 RCA; Acti9 iDPN Vigi; Acti9 iC40; Acti9 iSW-NA; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

[Ui] rated insulation voltage

500 V

[Uimp] rated impulse withstand voltage

4 kV

Local signalling

Mechanical indicator

mounting mode

Clip-on

Mounting location

Left side of circuit-breaker

Mounting support

DIN rail

Comb busbar and distribution block compatibility

NO

Height

90 mm

Width

9 mm

Depth

73 mm

Product weight

43 g

Colour

White

Connections - terminals

Screw clamp terminal (top and bottom): 1 cable(s) 0.5…2.5 mm² - flexible; Screw clamp terminal (top and bottom): 1 cable(s) 1…4 mm² - rigid; Screw clamp terminal (top and bottom): 2 cable(s) 2.5 mm² - rigid; Screw clamp terminal (top and bottom): 2 cable(s) 1.5 mm² - flexible with ferrule

Wire stripping length

10 mm

Tightening torque

1 N.m top and bottom

IP degree of protection

IP20

Pollution degree

3

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

120

Country of origin

IN

Warranty (in months)

18

Function

Auxiliary switch/fault-signal switch

Voltage type

AC/DC

Rated voltage

240 V

Installed at the factory

No

Width in number of modular spacings

0.5

Rated switch current

0.1 A

Number of fault-signal switches

1

Device fitting

Earth leakage circuit breaker and miniature circuit breaker (MCB)

Additional equipment

Auxiliary switch/fault-signal switch

Voltage type for actuating

AC/DC

Number of contacts as change-over contact

2

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

HS Code

8536.50
