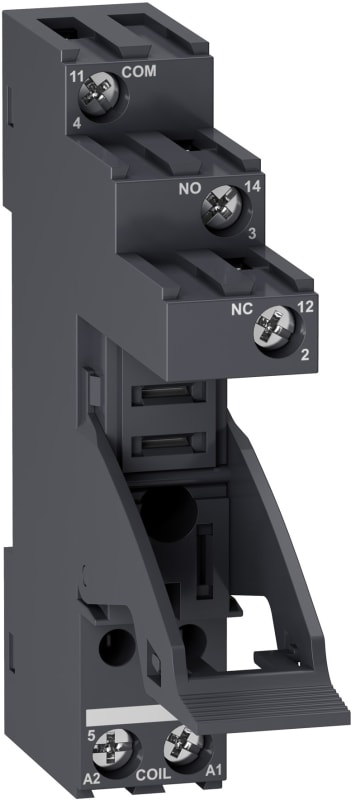

Schneider Electric RGZE1S35M Socket, separate contact, 10 A, relay type RXG1, screw connector, 250 V AC

Schneider Electric RGZE1S35M Socket, separate contact, 10 A, relay type RXG1, screw connector, 250 V AC is listed under Control & Automation / Relay Modules. Sales unit: pcs; Package quantity: 10 pcs; Range of product: Harmony Electromechanical Relays; Product or component type: Socket; Product compatibility: Plug-in relay RXG with 1 C/O contact; Contacts type and composition: 1 C/O.

Manufacturer part number (MPN)

RGZE1S35M

EAN / GTIN

3606480689437

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays

Product or component type

Socket

Product compatibility

Plug-in relay RXG with 1 C/O contact

Contacts type and composition

1 C/O

[Ui] rated insulation voltage

250 V

[Uimp] rated impulse withstand voltage

6 kV between coil and contact with reinforced insulation; 4 kV between terminals and DIN rail with basic insulation

[Ue] rated operational voltage

250 V conforming to IEC; 300 V conforming to UL

Dielectric strength

5 kV between coil and contact with reinforced insulation; 3 kV between terminals and DIN rail with basic insulation

Connections - terminals

Screw terminals, 1 x 0.34...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.34...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Screw terminals, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end; Screw terminals, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end

Fixing mode

Screw (panel); Clip-on (35 mm symmetrical DIN rail)

Wire stripping length

6…7 mm

Contact terminal arrangement

Separate

screw type

M3

Overvoltage category

III

Pollution degree

3

Standards

UL 508; CSA C22.2 No 14; IEC 61984

Product certifications

CE; EAC; UL; CSA; DNV-GL

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20

Relative humidity

10…85 %

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.600 cm

Package 1 Width

7.000 cm

Package 1 Length

7.900 cm

Package 1 Weight

36.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

8.600 cm

Package 2 Width

8.900 cm

Package 2 Length

16.600 cm

Package 2 Weight

382.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

180

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

7.350 kg

Country of origin

CN

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Width

15.8 mm

Height

77.5 mm

Depth

73 mm

With detachable clamps

Yes

Function extension possible

Yes

Type of electric connection

Screw connection

Number of pins

5

HS Code

8536.49
