Busbar for ICV60 ARC 3P+N 24 mod
Pricing
Request a quote
We reply within 24 hours
Product Description

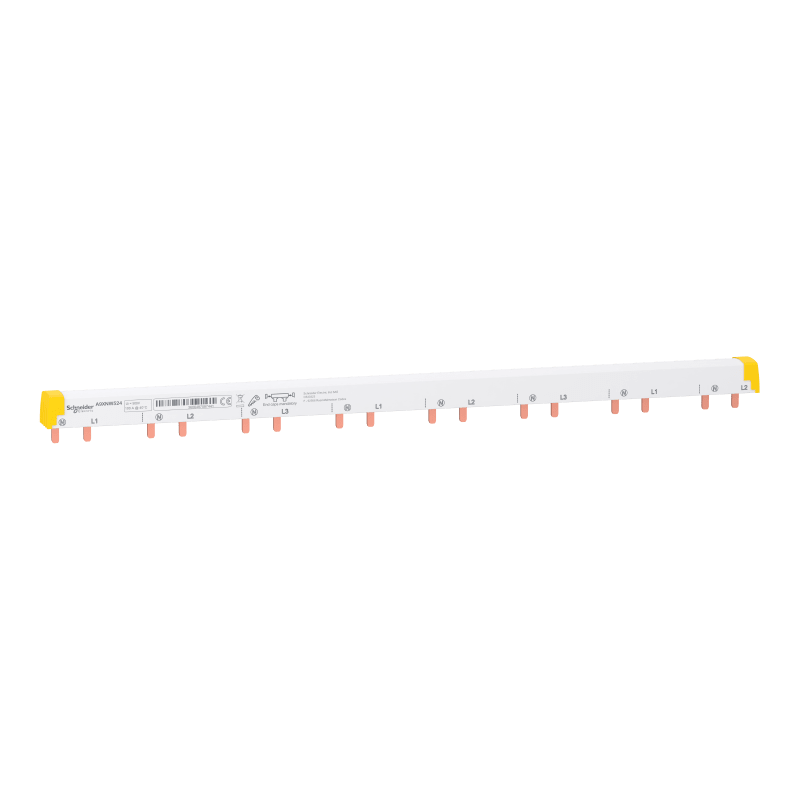

Schneider Electric A9XNW524 Busbar, Acti9, 3P+N for iCV60, 100A, 24 modules.
Technical Specifications
- Manufacturer part number (MPN)
- A9XNW524
- EAN / GTIN
- 3606487087427
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Number of poles
- 3P+N
- Colour
- White
- Insulated
- Yes
- Number of phases
- 3
- Rated permanent current Iu
- 100 A
- Length
- 410 mm
- Width in number of modular spacings
- 24
- Type of electric connection
- Pin
- Suitable for devices with auxiliary switch
- Yes
- Suitable for devices with N-conductor
- Yes
- Suitable for number of devices
- 8
- Max. rated operation voltage Ue
- 415 V
- Module width
- 18 mm
- Can be cut to size
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606487087427
- SAP 1200768948
- Code 83924226
Product Documentation
