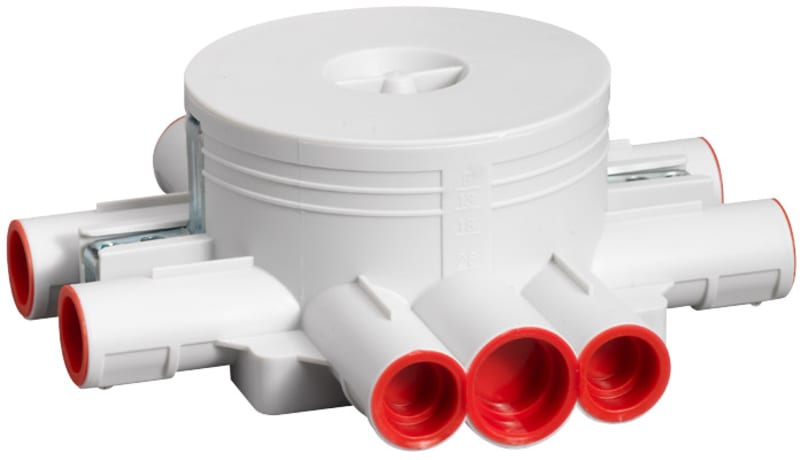

Ceiling Box, 50 mm, 8+2 entries
Pricing
Request a quote
We reply within 24 hours
Product Description
Ceiling box TB50, height 50 mm, with 8×16 mm + 2×20 mm entries. Halogen-free and approved for the 850 °C glow-wire test.
Technical Specifications
- Manufacturer part number (MPN)
- IMT36340
- EAN / GTIN
- 3606480160547
- Sales unit
- pcs
- Package quantity
- 50 pcs
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Cable junction box
- Model
- Single
- Provided with revolving ring
- No
- Couplable
- Yes
- Diameter
- 83 mm
- Length
- 145 mm
- Width
- 145 mm
- Depth
- 52 mm
- Inner depth
- 49 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- No
- Housing feed-through by break-out opening
- No
- Housing feed-through by seal membrane
- Yes
- Housing feed-through by nozzle
- Yes
- Housing feed-through by step membrane
- No
- For tube diameter
- 16/20 mm
- Pipe locking
- No
- Pipe locking optional
- No
- Inlet from the rear
- Yes
- Number of inlets
- 14
- Number of included spouts
- 10
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP20
- Transparent cover
- Yes
- Cover attachment
- Snapped on
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Max. conductor cross section
- 2.5 mm²
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- None
- With nail lugs
- No
- Special application
- None
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480160547
- SAP 1000032960
- Code 8259464
Product Documentation
More from Schneider Electric
Schneider Electric
Standard bend Plastic 20mm
IMT36061
Schneider Electric
Metal Clamp TKK 7-10 nail 2.1X18MM
IMT23610
Schneider Electric
Schneider Electric A9F06306 ACTI9 IC60H Miniature Circuit Breaker 3P 6 A, Curve B
Schneider Electric
Schneider Electric ZBZ33 legend holder 30 x 50 mm with legend 18 x 27 mm unmarked
Schneider Electric
Schneider Electric Auxiliary contact, ACTI9 A9A, iOF/SD+OF, 2 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection A9A26909
Schneider Electric
Thermostat 0-60 C 1NO
NSYCCOTHO
Schneider Electric
Schneider Electric ISM14600 OptiLine - minitrunking - 25 x 60 mm - PVC - white
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX630N, 50KA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A C63N32D630
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
