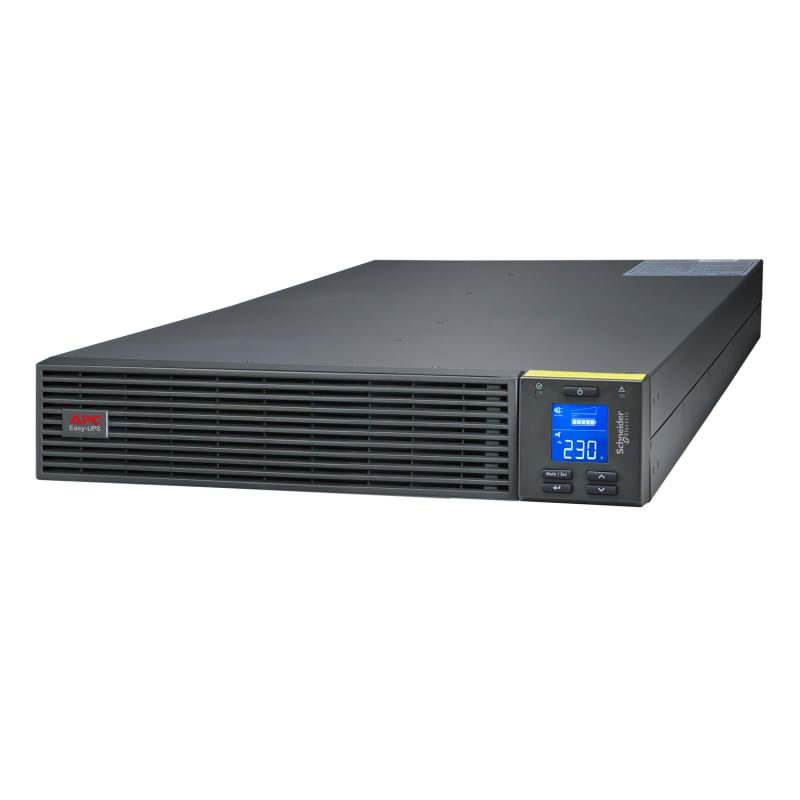

APC Easy UPS SRV RM 6000VA 230 (SRVPM6KRIL)

Schneider Electric SRVPM6KRIL APC Easy UPS On-Line, 6kVA, rack, 230V, 3-led. utt, smartkortplass, external. driftstid, without batt + rail.

Manufacturer part number (MPN)

SRVPM6KRIL

EAN / GTIN

0731304343844

Sales unit

pcs

Presentation

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Main input voltage

230 V AC 1 phase

Other input voltage

220 V; 240 V

Efficiency at full load

110...300 V 60 % load; 176...300 V full load

Input connection

1 hard wire 3-wire (1P + N + E)

Input frequency

40...70 Hz auto sensing

Output voltage

230 V AC 1 phase

Other output voltage

220 V; 240 V

Rated power in W

6000 W

Rated power in VA

6000 VA

Output connection

Hard wire 3-wire (1P + N + E) for 1 zone(s)

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

1 %

Maximum configurable power in VA

6000 VA

Maximum configurable power in W

6000 W

UPS topology

On-Line

Waveform type

Its wave

Efficiency

94 % (full load)

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Battery type

Lead-acid external sold separately

Emergency power off

Yes

Free slot

1

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

Serial port; USB port; Available expansion slot

Surge energy rating

600 J

Number of rack unit

2U

Color

Black (RAL 7010)

Height

86.5 mm

Width

438 mm

Depth

615 mm

Product weight

14 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted with kit

USB compatible

No

Mounting position

Horizontal

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Range of product

Easy UPS On-Line

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; EAC

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…60 °C

Storage altitude

0…15000 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

55 dBA

Heat dissipation

1172 Btu/h

Operating altitude

0...3000 m

Battery voltage

240 V

Extendable runtime

1

Included battery module

0

Empty battery slot

0

Battery charging power

1170 W rated

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

24 cm

Package 1 Width

60 cm

Package 1 Length

76 cm

Package 1 Weight

18 kg

Country of origin

CN

Warranty (in months)

24

HS Code

8504.40

• EAN 0731304343844
• SAP 1200960924
• Code 84257185
