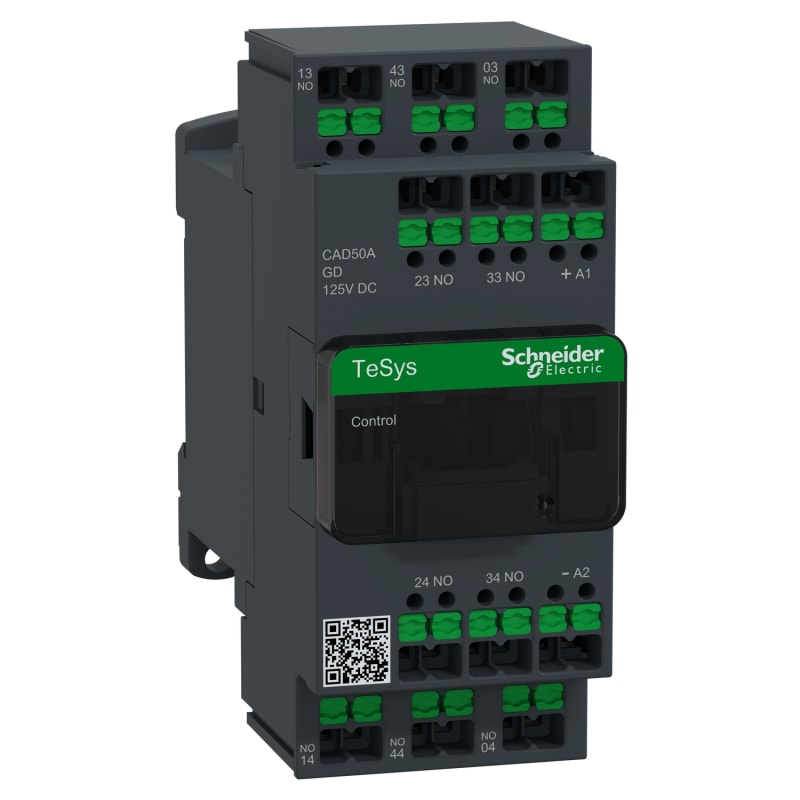

Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 125 VDC standard coil, snap-in terminals CAD50AGD

Schneider Electric CAD50AGD Auxiliary contactor, TeSys Deca, 5NO, <=690V, 125 VDC standard coil, Snap-In terminals.

Manufacturer part number (MPN)

CAD50AGD EAN / GTIN: 3606487541417 HS code: 8536.90 Sales unit: pcs Package quantity: 15 pcs Number of poles: 3P Contact configuration: 5 NO + 0 NC Range: TeSys Product name: TeSys CAD Product or component type: Control relay Device short name: CAD Contactor application: Control circuit Utilisation category: AC-15; AC-14; DC-13 Pole contact composition: 5 NO [Ue] rated operational voltage: <= 690 V AC 25...400 Hz Control circuit type: DC standard [Uc] control circuit voltage: 125 V DC [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 [Ith] conventional free air thermal current: 10 A (at 60 °C) Irms rated making capacity: 140 A AC; 250 A DC [Icw] rated short-time withstand current: 100 A - 1 s; 120 A - 500 ms; 140 A - 100 ms Associated fuse rating: 10 A gG conforming to IEC 60947-5-1 [Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1 Mounting support: Rail; Plate Connections - terminals: Snap-in terminal 1 cable(s) 0.5…4 mm²flexible without cable end; Snap-in terminal 2 cable(s) 0.5…4 mm²flexible without cable end; Snap-in terminal 1 cable(s) 0.5…2.5 mm²flexible with cable end; Snap-in terminal 2 cable(s) 0.5…2.5 mm²flexible with cable end; Snap-in terminal 1 cable(s) 0.5…2.5 mm²solid without cable end; Snap-in terminal 2 cable(s) 0.5…2.5 mm²solid without cable end Control circuit voltage limits: 0.1...0.25 Uc (-40…70 °C):drop-out DC; 0.7...1.25 Uc (-40…60 °C):operational DC; 1...1.25 Uc (60…70 °C):operational DC Operating time: 53...72 ms coil energisation and NO closing; 16...24 ms coil de-energisation and NO opening Mechanical durability: 30 Mcycles Maximum operating rate: 180 cyc/mn Time constant: 28 ms Inrush power in W: 5.4 W (at 20 °C) Hold-in power consumption in W: 5.4 W at 20 °C minimum switching voltage: 17 V minimum switching current: 5 mA Non-overlap time: 1.5 ms on energisation between NC and NO contact; 1.5 ms on de-energisation between NC and NO contact Insulation resistance: > 10 MOhm Mechanical robustness: Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27; Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27; Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6; Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Height: 107 mm Width: 45 mm Depth: 93 mm Product weight: 562 g Standards: EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5; JIS C8201-5-1 Product certifications: CB Scheme; CCC; cULus; CE; UKCA; EU-RO-MR by DNV IP degree of protection: IP2X front face conforming to VDE 0106 Protective treatment: TH conforming to IEC 60068 Ambient air temperature for operation: -40…60 °C; 60…70 °C with derating Ambient air temperature for storage: -60…80 °C Operating altitude: 0...3000 m Warranty (in months): 18
