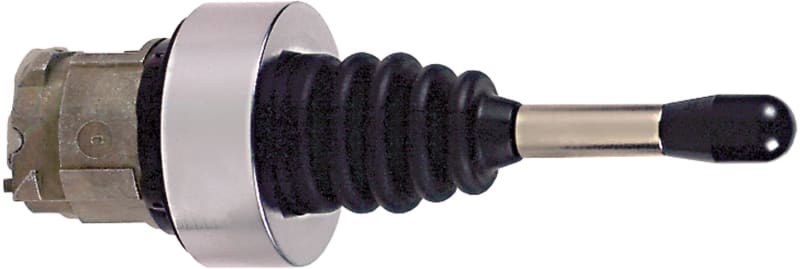

Head for XD4PA24 (ZD4PA24)

Schneider Electric ZD4PA24 Head For XD4Pa24.

Manufacturer part number (MPN)

ZD4PA24

EAN / GTIN

3389110120042

Sales unit

pcs

Package quantity

100 pcs

Range of product

Harmony XB4

Product or component type

Head for joystick controller

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

To zero position spring return

Operator profile

54 mm long operating shaft

Operator direction information

4 directions

Product weight

0.022 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Operator position information

5 positions

Mechanical durability

1000000 cycles

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-5-5; IEC 60947-1; UL 508; JIS C8201-5-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-5-4; JIS C8201-1

Product certifications

CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

100

Number of Units in Package 3

800

Country of origin

FR

Warranty (in months)

18

Number of switch positions

4

Rated operation current Ie at AC-21, 400 V

10 A

Centre mounting, hole diameter

22.5 mm

Number of actuation directions

4

Number of normally open contacts per actuation direction

4

With retraction in 0-position

Yes

Colour front ring

Chrome

Analogue output signal configurable

No

Degree of protection (IP)

IP66

Coder

No

Material front ring

Metal

With front ring

Yes

Locking in 0-position

No

Joy stick length

54 mm

HS Code

8538.90

• EAN 3389110120042
• SAP 1000056396
• Code 8540716
