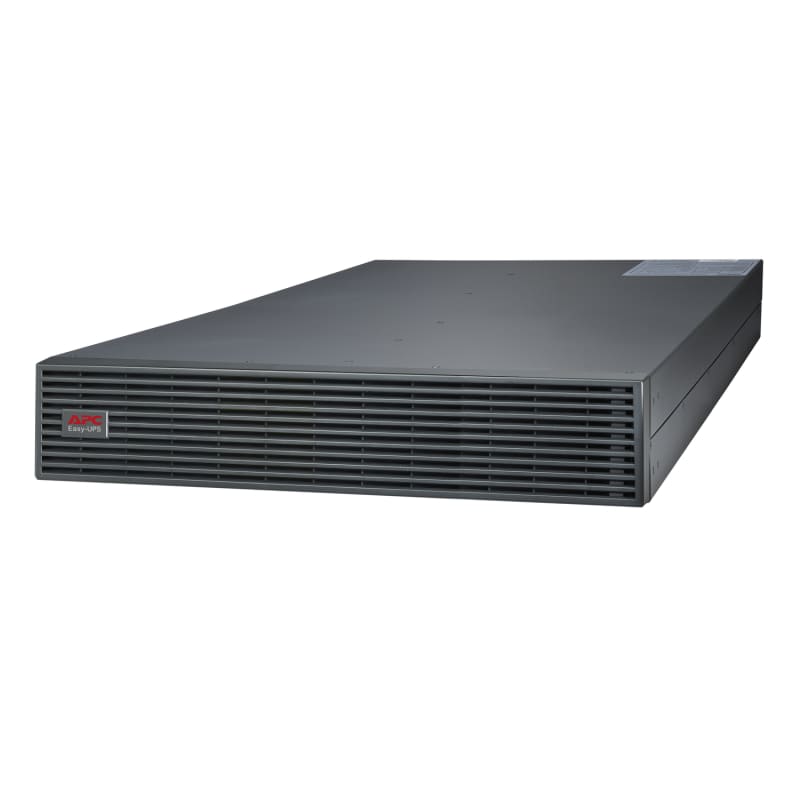

APC EasyUPS SRV 192VRM Bat pack (SRV192RBP-7A)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRV192RBP-7A APC Easy UPS On-Line SRV Batt.pk.5V6kVA for stand. driftstidmod. 192V, 1344VAh, rackmont. with set, 2U.
Technical Specifications
- Manufacturer part number (MPN)
- SRV192RBP-7A
- EAN / GTIN
- 0731304343325
- Sales unit
- pcs
- Product or component type
- External battery pack
- Number of rack unit
- 2U
- battery type
- Lead-acid battery
- Provided equipment
- User manual; Rack mounting brackets; Battery cable
- Range of product
- Smart-UPS Battery Systems
- Number of battery blocks per string
- 16
- Device mounting
- Rack mount
- Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery voltage
- 192 V
- Colour
- Black
- Height
- 86.5 mm
- Width
- 438 mm
- Depth
- 710 mm
- Product weight
- 47 kg
- mounting mode
- Rack-mounted with kit
- USB compatible
- No
- Product certifications
- CE; UKCA; EAC; EN/IEC 62040-1
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3000 m
- Ambient air temperature for storage
- -15…40 °C
- Storage Relative Humidity
- 0…95 % non-condensing
- Storage altitude
- 0…15000 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 24.5 cm
- Package 1 Width
- 56.5 cm
- Package 1 Length
- 83.6 cm
- Package 1 Weight
- 53 kg
- Country of origin
- CN
- Warranty (in months)
- 24
- Nominal voltage
- 192 V
- Weight
- 60000 g
- Size indication
- Block
- Capacity
- 7000 mAh
- Plastic housing
- Yes
- Length
- 485 mm
- Suitable for EX-applications
- No
- Ambient temperature
- -15–40 °C
- Suitable for rapid charger
- No
- Height including pole
- 368 mm
- Battery pack
- Yes
- Number of cells
- 16
Standards & Compliance
- HS Code
- 8507.20
Cross References
- EAN 0731304343325
- SAP 1200960900
- Code 84257155
Product Documentation
