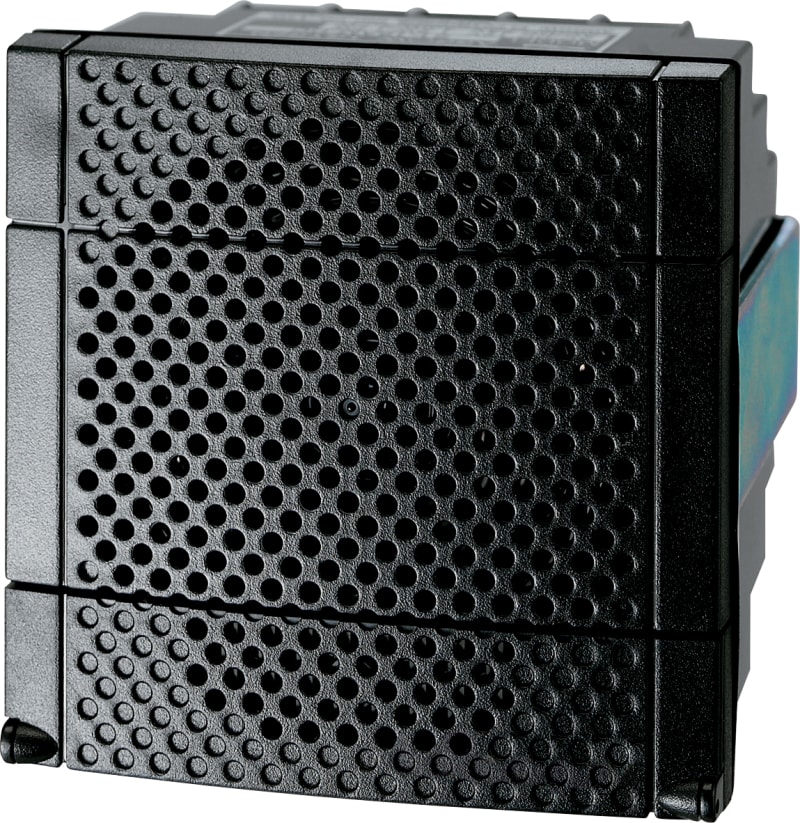

Schneider Electric Electronic Alarm PNP Black XVS72BMBP

Schneider Electric XVS72BMBP E.al. 90dB PNP 12/24V DIN72 sv.

Manufacturer part number (MPN)

XVS72BMBP

EAN / GTIN

3606480032905

Sales unit

pcs

Package quantity

16 pcs

Voltage

12/24 V

Range of product

Harmony XVS

Product or component type

Electronic alarm

Device short name

XVS

Colour

Black

Material

ABS (acrylonitrile butadiene-styrene): body; PC (polycarbonate): terminal cover

Marking

CE

Overvoltage category

Class II conforming to IEC 61140

Mounting support

72 mm DIN rail

[Us] rated supply voltage

12...24 V DC

[Uimp] rated impulse withstand voltage

0.8 kV

Current consumption

117 mA at 12 V; 125 mA at 24 V; 158 mA at 12 V; 200 mA at 24 V

Clamping connection capacity

<= 1 x 1.5 mm²

Width

72 mm

Height

72 mm

Depth

69.3 mm

Product weight

0.18 kg

Discrete output type

PNP

Signalling type

16 tones alarm

Standards

UL 464; IEC 61000-6-3; IEC 61000-6-2

Product certifications

UR

Protective treatment

TC

Ambient air temperature for storage

-35…70 °C

Ambient air temperature for operation

-10…50 °C

IP degree of protection

Panel mounted: IP54 conforming to IEC 60529

Noise level

0…90 dB (continuous or intermittent tone) at 1 m

Number of Units in Package 1

1

Number of Units in Package 2

16

Country of origin

ID

Warranty (in months)

18

Nominal voltage

24 V

Mounting method

Surface mounting

Power

1.9 W

Housing colour

Black

Type of current

AC/DC

Loudness

90 dB

Electricity consumption

0.2 A

Type of acoustic signal

Programmable

Degree of protection (IP)

IP54

For Ex-zone gas

None

Suitable for wall mounting

No

For Ex-zone dust

None

Type of acoustic signal device

Sound generator

HS Code

8538.90

• EAN 3606480032905
• SAP 1000707734
• Code 8665951
