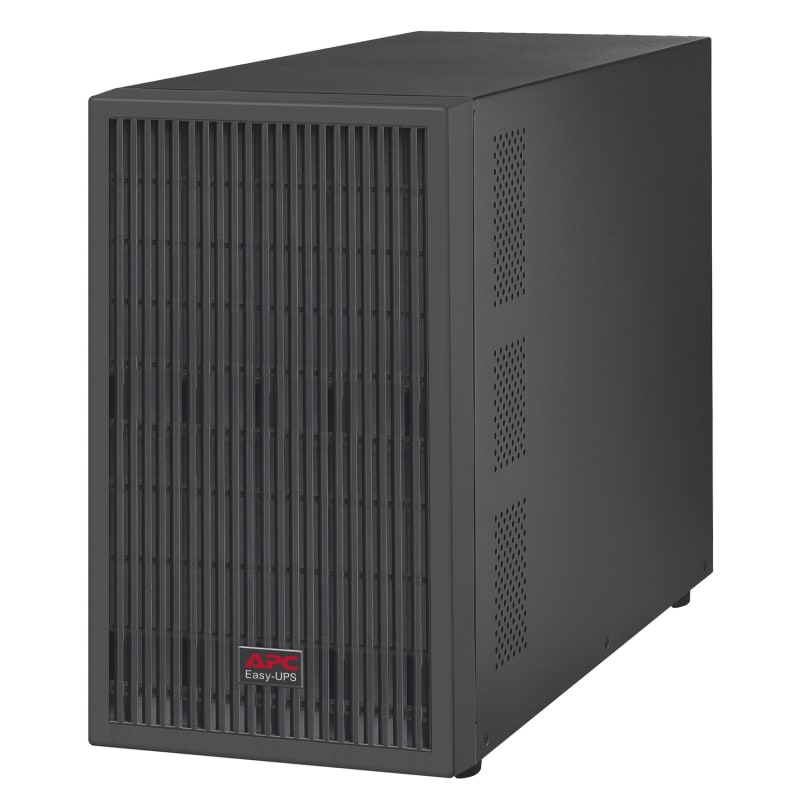

APC Easy UPS SRV 72V Battery pack
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRV72BP-9A APC Easy UPS On-Line SRV battery pack for 2/3 kVA extended-runtime models, 72 V.
Technical Specifications
- Manufacturer part number (MPN)
- SRV72BP-9A
- EAN / GTIN
- 0731304343370
- Sales unit
- pcs
- Product or component type
- External battery pack
- battery type
- Lead-acid battery
- Provided equipment
- User manual; Battery cable
- Range of product
- Easy UPS On-Line
- Number of battery blocks per string
- 6
- Device mounting
- Floor mounted
- Number of battery filled slots
- 1
- Number of battery free slots
- 0
- Battery voltage
- 72 V
- Colour
- Black
- Height
- 336 mm
- Width
- 190 mm
- Depth
- 425 mm
- Product weight
- 38 kg
- mounting mode
- Not rack-mountable
- USB compatible
- No
- Product certifications
- CE; UKCA; EAC; EN/IEC 62040-1
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3000 m
- Ambient air temperature for storage
- -15…40 °C
- Storage Relative Humidity
- 0…95 % non-condensing
- Storage altitude
- 0…15000 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 46.500 cm
- Package 1 Width
- 56.500 cm
- Package 1 Length
- 32.500 cm
- Package 1 Weight
- 40.200 kg
- Country of origin
- CN
- Warranty (in months)
- 24
- Nominal voltage
- 72 V
- Weight
- 38000 g
- Capacity
- 1008000 mAh
- Plastic housing
- Yes
- Length
- 425 mm
- Suitable for EX-applications
- No
- Ambient temperature
- 0–40 °C
- Suitable for rapid charger
- No
- Height including pole
- 336 mm
- Battery pack
- No
- Number of cells
- 12
Standards & Compliance
- HS Code
- 8507.20
Cross References
- EAN 0731304343370
- SAP 1200960908
- Code 84257158
