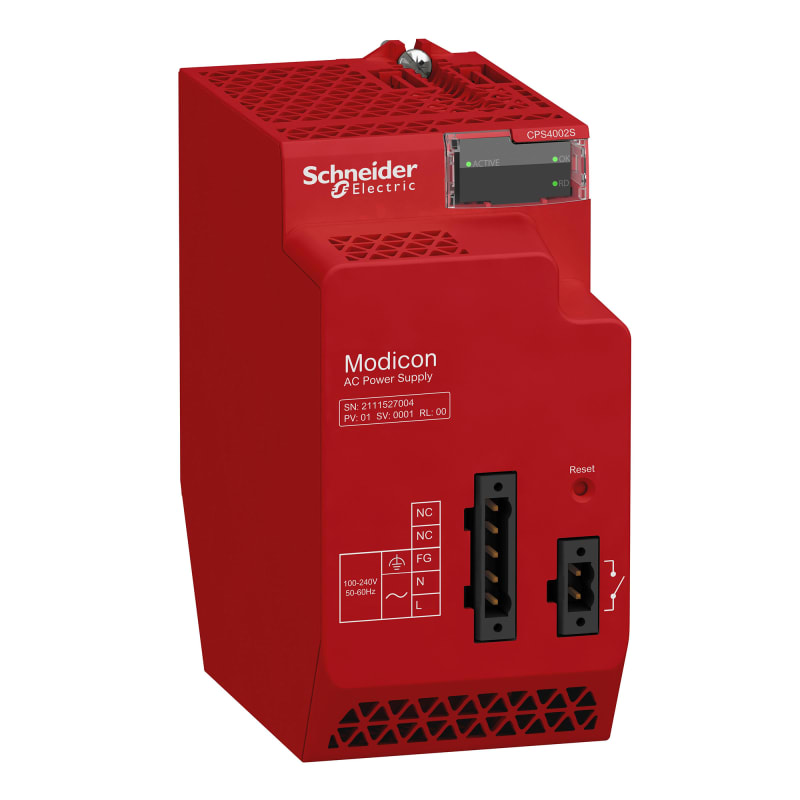

Schneider Electric redundant power supply module X80 - 100..240 V AC - Safety BMXCPS4002S

Schneider Electric BMXCPS4002S Modicon X80 - alim sécurité redondante - 40W 110/220Vac - fonctions prédictive.

Manufacturer part number (MPN)

BMXCPS4002S

EAN / GTIN

3606481204950

Sales unit

pcs

Package quantity

6 pcs

Range of product

Modicon X80

Product or component type

Power supply module

backplane compatibility

All backplane

advanced diagnostics available via network

Redundancy information; Redundancy test; Temperature sensing; Remaining lifetime; Uptime duration

Primary voltage

100...240 V

Supply circuit type

AC

Secondary power

15 W 3.3 V DC at -25…60 °C I/O module logic power supply; 40 W 24 V DC at -25…60 °C I/O module power supply and processor if 3.3 V not loaded

Primary voltage limit

85...264 V

Network frequency

50/60 Hz

Network frequency limits

47…63 Hz

Apparent power

0.13 kVA

Input current

0.55 A 230 V; 1.1 A 115 V

Inrush current

30 A 115 V; 60 A 230 V

I²t on activation

1 A².s 115 V; 4 A².s 230 V

It on activation

0.1 A.s 115 V; 0.15 A.s 230 V

MTBF reliability

792000 H

Protection type

Internal fuse not accessible for primary circuit; Overload protection for secondary circuit; Overvoltage protection for secondary circuit; Short-circuit protection for secondary circuit

Current at secondary voltage

4.5 A 3.3 V DC I/O module logic power supply; 1.67 A 24 V DC I/O module power supply and processor

Maximum power dissipation in W

8.5 W

Status LED

1 LED (green) presence of voltages (OK); 1 LED (green) redundancy OK; 1 LED (green) power supply status

Control type

RESET push-button cold restart

Electrical connection

1 connector 2 pin(s)alarm relay; 1 connector 5 pin(s)line supply, protective earth

Insulation resistance

>= 100 MOhm primary/ground; >= 100 MOhm primary/secondary

Product weight

0.51 kg

Immunity to microbreaks

10 ms

Dielectric strength

1500 V primary/secondary I/O module logic power supply; 1500 V primary/secondary I/O module power supply and processor; 2300 V primary/secondary sensor power supply; 1500 V primary/ground; 500 V 24 V sensor output/ground

Vibration resistance

3 gn

Shock resistance

15 gn

IP degree of protection

IP20

Directives

2014/30/EU - electromagnetic compatibility; 2006/42/EC - machinery; 2014/34/EU - ATEX directive

Product certifications

CE; UL; CSA; RCM; EAC; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22; TÜV

Standards

IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G; IEC 60079-0

Environmental characteristic

Hazardous location class I division 2; Gas resistant class Gx conforming to ISA S71.04; Gas resistant class 3C4 conforming to IEC 60721-3-3; Dust resistant class 3S4 conforming to IEC 60721-3-3; Sand resistant class 3S4 conforming to IEC 60721-3-3; Salt resistant level 2 conforming to IEC 68252; Mold growth resistant class 3B2 conforming to IEC 60721-3-3; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-25…60 °C

Relative humidity

5…95 % at 55 °C without condensation

Protective treatment

Conformal coating

Operating altitude

0...2000 m; 2000...5000 m with derating factor

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

ID

Warranty (in months)

18

Width

68 mm

Height

100 mm

Depth

150 mm

Suitable for safety functions

Yes

Type of voltage (input voltage)

AC/DC

Power output

40 W

Redundancy

Yes

Output voltage AC 50 Hz

3.3–24 V

Output voltage AC 60 Hz

3.3–24 V

Input voltage AC 50 Hz

100–240 V

Input voltage AC 60 Hz

100–240 V

Max. output current AC 50 Hz

4.5 A

Max. output current AC 60 Hz

4.5 A

Max. output current DC

4.5 A

Max. input current AC 50 Hz

1.1 A

Max. input current AC 60 Hz

1.1 A

Type of output voltage

AC/DC

HS Code

8504.40
