BOX M/CE-Socket 3L+PE/3L+N+PE
Pricing
Request a quote
We reply within 24 hours
Product Description

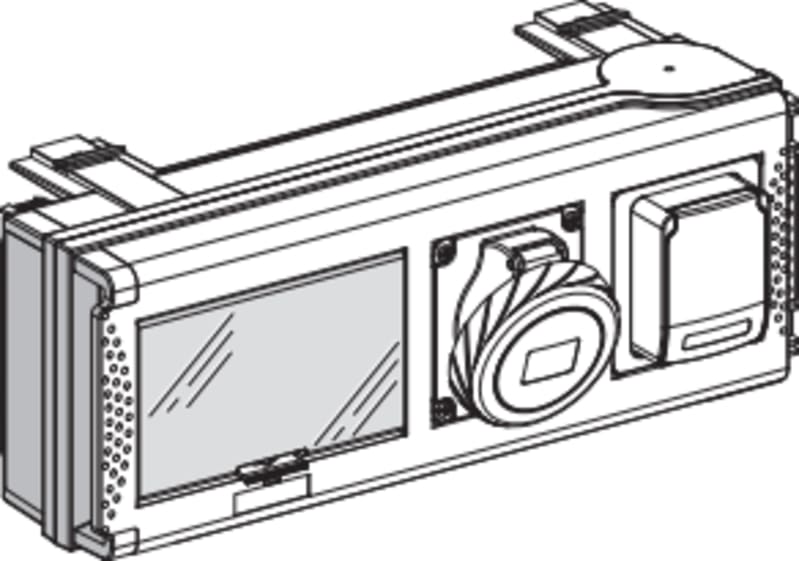

Schneider Electric KSB32CP35 Box M/Ce-Socket 3L+Pe/3L+N+Pe.
Technical Specifications
- Manufacturer part number (MPN)
- KSB32CP35
- EAN / GTIN
- 3606480006036
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 29 pcs
- Range of product
- Canalis
- Product name
- KS
- Product or component type
- Tap-off unit
- Product compatibility
- Modular device
- [Ie] rated operational current
- 32 A at 35 °C
- Tap-off unit socket description
- Industrial 16A 2P+T 230V
- Tap-off unit 2nd socket description
- Industrial 16A 3P+N+T 415V
- Tap-off unit polarity
- 3L+N+PE
- Provided equipment
- Blanking plate
- Colour
- White (RAL 9001)
- Device application
- Power socket distribution; Low power distribution
- [Ue] rated operational voltage
- 230...690 V depending on protective device
- [Uimp] rated impulse withstand voltage
- 6.8 kV
- [Ui] rated insulation voltage
- 400 V depending on protective device; 500 V depending on protective device; 690 V depending on protective device
- Network frequency
- 50/60 Hz
- Protection type
- Without protection
- Tap-off unit disconnection mode
- By drawing out
- Tap-off unit connector type
- With phase selection
- Standards
- IEC 60439-2; IEC 61439-6
- Body material
- Plastic
- number of 18mm modules
- 8
- Width
- 437.5 mm
- Depth
- 108 mm
- Height
- 165 mm
- Product weight
- 3.1 kg
- Earthing system
- TT - busbar trunking; TN-S - busbar trunking; TN-C - busbar trunking; TT - tap-off unit; TN-S - tap-off unit
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 29
- Country of origin
- IT
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480006036
- SAP 1200721830
- Code 83845682
Product Documentation
