Schneider Electric

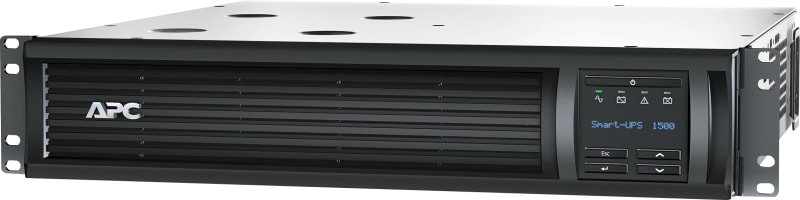

Schneider Electric APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 230V, 4X IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD SMT1500RMI2UC
Part numberSMT1500RMI2UCEAN / GTIN0731304333005HS code8504.40
Electrical Components
UPS Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SMT1500RMI2UC APC -UPS SMT 1,5kVA, Rack 2U, 230V, out: 4x C13, SmartConnect Port.
Technical Specifications
- Manufacturer part number (MPN)
- SMT1500RMI2UC
- EAN / GTIN
- 0731304333005
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Voltage
- 230 V
- Presentation
- Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- IEC 320 C14
- Efficiency at full load
- 151...302 V adjustable; 160...286 V
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 1000 W
- Rated power in VA
- 1500 VA
- Output connection
- 4 IEC 320 C13; 2 IEC Jumpers C13
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 1500 VA
- Maximum configurable power in W
- 1000 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC159
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Emergency power off
- Optional
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- UPS connectivity
- Serial port; USB port; SmartConnect port; Available expansion slot
- Communication port support
- SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
- Software package
- SmartConnect software for remote power monitoring feature availability varies by terms of use
- Surge energy rating
- 459 J
- Noise filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449
- Number of rack unit
- 2U
- Color
- Black
- Height
- 86 mm
- Width
- 432 mm
- Depth
- 477 mm
- Product weight
- 26.1 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- Yes
- Provided equipment
- Installation guide; Rack mounting support rails; USB cable
- Number of power modules
- 0
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Additional specification
- Cloud-enabled monitoring
- Redundant
- No
- Range of product
- Smart-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; RCM; TÜV; VDE; UK PSTI
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 46 dBA
- Heat dissipation
- 90 Btu/h
- Operating altitude
- 0...10000 ft
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 3 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 144 W rated
- Number of Units in Package 1
- 1
- Country of origin
- VN
- Warranty (in months)
- 36 UPS|24 Battery
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304333005
- SAP 1200108099
- Code 81958404
Product Documentation
Document preview: Schneider Electric SMT1500RMI2UC — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys thermal overload relay 30-40A, class 20
LRD340L
Schneider Electric
Cable LUG FOR CU 150 mm² 4 pcs
LV429257
Schneider Electric
DIN-rail terminal knife 4mm² orang 2P
NSYTRV42STAR
Schneider Electric
Inf App.intk 32A 2P+J 230 IP67
83866
Schneider Electric
Schneider Electric Active arc fault detection RCBO, ACTI9 Active ICV40N ARC, 1P+N, 25A, C curve, 30MA, type A-SI, 6000A A9TDFC625
Schneider Electric
Plinth 200 underl box W
FFS06715496
Schneider Electric
Black fastening plate with 400mm column
XVUZ400
Schneider Electric
Schneider Electric ClimaSys forced vent. IP54, 38M3/h, 115V, with outlet grille and filter G2 NSYCVF38M115PF
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SMT1500RMI2UC?
- SMT1500RMI2UC can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is SMT1500RMI2UC.
- What is the HS code for SMT1500RMI2UC?
- The customs tariff (HS) code for SMT1500RMI2UC is 8504.40.
- Who manufactures SMT1500RMI2UC?
- SMT1500RMI2UC is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for SMT1500RMI2UC?
- Yes — the SMT1500RMI2UC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SMT1500RMI2UC?
- The minimum order quantity is 1.
- Is SMT1500RMI2UC available?
- Yes — SMT1500RMI2UC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
