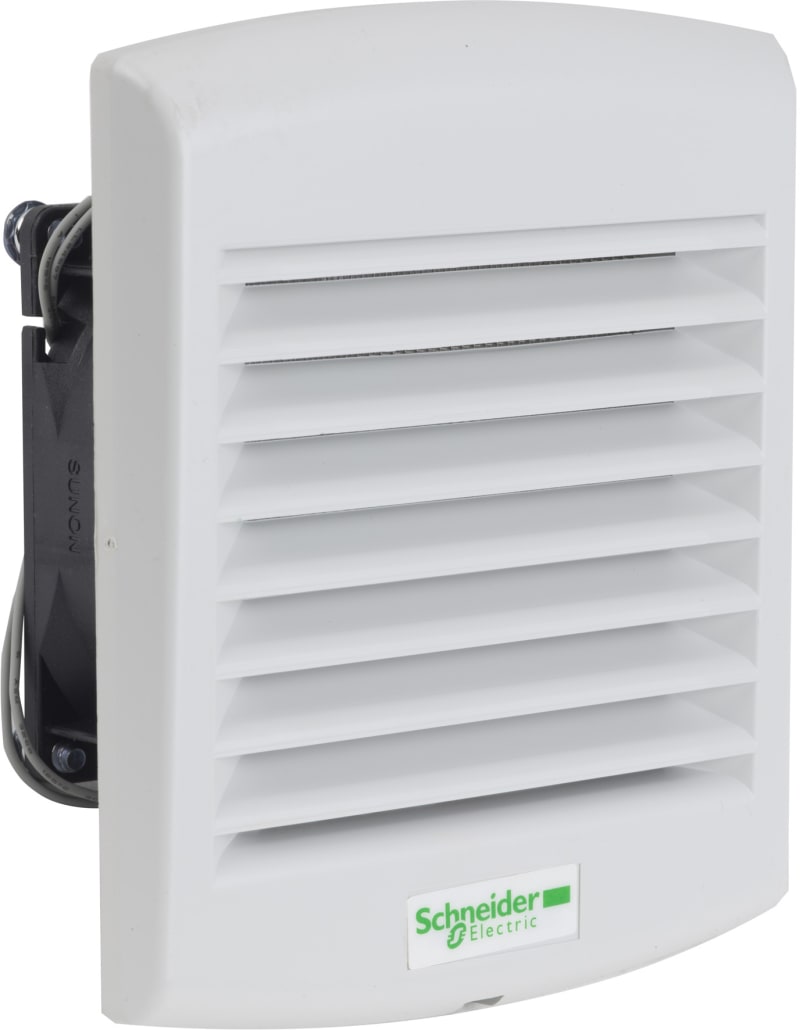

Schneider Electric ClimaSys forced vent. IP54, 38M3/h, 115V, with outlet grille and filter G2 NSYCVF38M115PF

Schneider Electric NSYCVF38M115PF Fan 38M3/H 115V IP54, ClimaSys.

Manufacturer part number (MPN)

NSYCVF38M115PF

EAN / GTIN

3606480151170

Sales unit

pcs

Package quantity

34 pcs

Voltage

115 V

IP rating

IP54

Flow rate

38 m³/h

Range

ClimaSys

Product name

ClimaSys CV

Product or component type

Fan

Type of filter

Standard

[Us] rated supply voltage

75...125 V

Input voltage

115 V 50/60 Hz

Absorbed power

3.3 W 50 Hz; 3.5 W 60 Hz

[In] rated current

0.16 A 50 Hz; 0.16 A 60 Hz

Noise level < at

40…41 dB

Bearing type

Ball

Height

External: 137 mm

Width

External: 117 mm

Depth

External : 49 mm

Cut-out dimensions

92 x 92 mm

Product weight

0.22 kg

Material

Outlet grille: injected thermoplastic (ASA PC)

Colour

Outlet grille: grey (RAL 7035)

Ambient air temperature for operation

-10…70 °C

Ambient air temperature for storage

-40…70 °C

Maximum pressure

29 Pa flow rate 0 m³/h

Connections - terminals

Cable

IP degree of protection

IP54

Device composition

1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 outlet grille: front; 1 cut-out template

Condition of use

Outside temperature must be 5 °C lower than inside temperature; Flow rates depends on the work point, see ProClima software; Overfrequent filter replacement should be avoided; Surrounding environment must be relatively clean; Filter must be cleaned and replaced regularly

Country of origin

FR

Warranty (in months)

18

Mounting method

Snap mounting

RAL-number

7035

Voltage type

AC

Suitable for 19 inch rack mounting

No

Number of fans

1

EMC-version

No

Degree of protection (IP)

IP54

With protective cover

Yes

With filter

Yes

Rated power

3.3 W

Roof fan

No

Built as slide-in fan

Yes

Volume flow, freeblowing

38 m³/h

Air circulator

Yes

Suitable for wall built-in

No

Noise emission

41 dB(A)

Operating voltage AC 50 Hz

115 V

Operating voltage AC 60 Hz

115 V

HS Code

8414.59

• EAN 3606480151170
• SAP 1000090341
• Code 8925148
