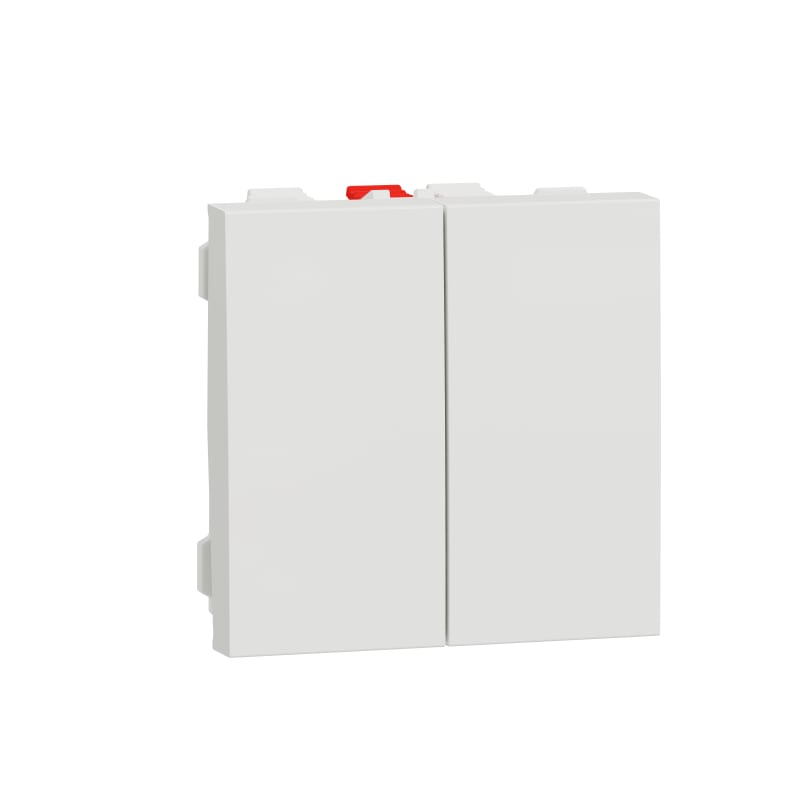

Schneider Electric 2 Switch, New Unica, 1-Pole 2-Way, 10AX, 2 modules, screwless terminals, untreated, IP4X, white NU321318

Schneider Electric NU321318 Double limit switch - 10A quick-connect terminal 2 module - white.

Manufacturer part number (MPN)

NU321318 EAN / GTIN: 3606489455507 Sales unit: pcs Package quantity: 10 pcs Rated current: 10 A Range of product: New Unica Product or component type: Switch Device presentation: Mechanism with cover plate Technology type: Electromechanical Switch function: 1-pole 2-way Number of rocker: 2 Device application: Light control Colour tint: White (RAL 9003) Type of packing: Flow-pack [Ue] rated operational voltage: 250 V Network type: AC Network frequency: 50/60 Hz Electrical durability: 20000 cycles, cos phi = 0.6 Insulation resistance: > 5 MOhm at 500 V Dielectric strength: 2000 V minimum load breaking capacity: 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 Opening distance: > 3 mm Actuator: Rocker Number of modules: 2 modules Connections - terminals: Screwless terminals Cable cross section: 0…2.5 mm² rigid cable ; 0…2.5 mm² flexible cable material: Thermoplastic ABS-UV stabilised: mechanism rocker; PC (polycarbonate) GF10 FR: casing; CuZn37: terminals; PBT (polybutylene terephthalate) GF30: release button Marking: Without marking Surface finish: Glossy specific treatment - integrated within the material: Untreated Device mounting: Flush fixing mode: Clip-in Width: 45 mm Height: 45 mm Depth: 34.25 mm Embedding depth: 21.15 mm Product weight: 0.0315 kg Ambient air temperature for operation: -5…40 °C Ambient air temperature for storage: -5…50 °C Standards: IEC 60669-1; LV directive Product certifications: CE; AENOR; EAC; NF; VDE resistance to chemical agents: Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane IP degree of protection: IP4X IK degree of protection: IK04 Environmental characteristic: Oil; UV resistant; Acetone; Liquid soap; Window-cleaning fluid; Petrol; Alcohol; Bleach Number of Units in Package 1: 1 Number of Units in Package 2: 10 Number of Units in Package 3: 80 Warranty (in months): 18 Wiring system: Two-way switch Method of operation: Rocker/button Assembly arrangement: Basic element with central cover plate Push button switch: No Mounting method: Flush-mounted Type of fastening: Engage (snap) With mounting plate: No material quality: Thermoplastic Halogen free: Yes Anti-bacterial treatment: No Surface protection: Untreated Surface finishing: Glossy Colour: White RAL-number (similar): 9003 Label space/information surface: No Lighting: No Impact strength: IK04 Nominal voltage: 250 V Switching current for fluorescent lamps: 10 AX Monitoring contact: No Connection type: Push-in clamp Heating switch: No Washing machine switch: No Device width: 45 mm Device height: 45 mm Device depth: 34.25 mm Built-in depth: 21.15 mm Compatible with Apple HomeKit: No Compatible with Google Assistant: No Min. depth of built-in installation box: 30 mm Compatible with Amazon Alexa: No IFTTT support available: No Imprint/indication: None Country of origin: Spain

HS Code

8536.50

• EAN 3606489455507
• SAP 1200495918
• Code 82624811
