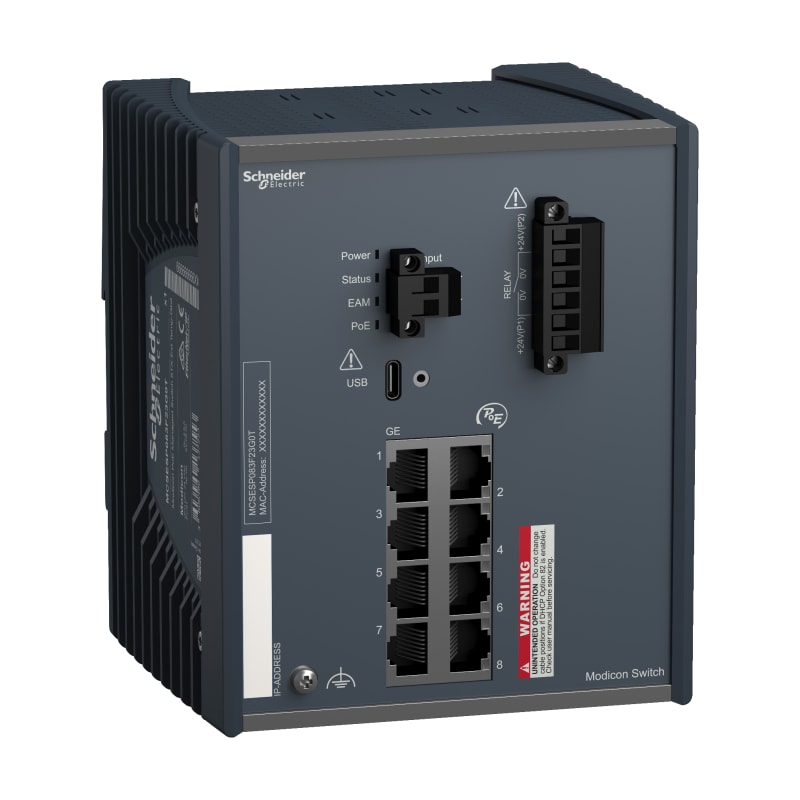

Eth PoE Managed Switch 8TX-T

Schneider Electric MCSESP083F23G0T Modicon Ethernet PoE Managed Switch 8TX for environment with high ambient temperature.

Manufacturer part number (MPN)

MCSESP083F23G0T EAN / GTIN: 3606481813817 HS code: 8536.90 Sales unit: pcs Range of product: Modicon Networking Product or component type: Ethernet TCP/IP managed switch Communication port protocol: Ethernet TCP/IP; SSH; HTTP; HTTPS; SNMP; SFTP; SCP; LLDP; Telnet; SNTP; Modbus TCP; OPC UA; IEC 61850 MMS Server Port Ethernet: 10/100/1000 BASE-TX - 8 port(s) copper cable Maximum number of switches in cascade: Unlimited Cybersecurity: Port hardening; IP-based port security; MAC-based port security; Port-based access control; Role-based access control; RADIUS assignment; HTTPS; DoS prevention; VLAN-based ACL; Audit trail; SNMP logging; Pre-login banner; TACACS+ Integrated connection type: Shielded RJ45 copper (Gbit) Transmission support medium: Twisted shielded pairs cable CAT 5E for copper (Gbit) Maximum cable distance between devices: 100 m copper (Gbit) Ethernet service: Configuration via web server; VLAN; Multicast filtering; Data stream control; IGMP Snooping; SNMP-Traps and SYSLOG Communication service: TFTP; Quality of Service (QoS); Port monitoring; Port mirroring; Address conflict detection Diagnostics run time: Signal contact; Self test; MAC notification; RSPAN; SFLOW Maximum number of switches in a ring: 50 Redundancy: HiPER ring; RSTP; Link aggregation; Link backup; Redundant network coupling; MRP; Redundant coupling protocol; MSTP Supply voltage: 24 V Supply voltage limits: 18…30 V DC SELV Power consumption in W: 106 W Electrical connection: Removable connector 6 ways power supply Mounting support: 35 mm symmetrical DIN rail Marking: CE; CULus; RCM Function available: Security status; Alarms (Traps); System information; Report Local signalling: 1 dual colour LED (green/yellow) for P1 P2 power supplies; 1 dual colour LED (green/red) for device status; 1 dual colour LED (green/yellow) for memory key status; 1 dual colour LED (green/yellow) for PoE power supply; 1 dual colour LED (green/yellow) for channel diagnostic Alarm output: 1 voltfree contact 1 A Alarm function: Power supply fault; Data link status; Switch fault; Temperature threshold; Redundancy ring fault; Incorrect configuration; External memory removed Ethernet cabling system: TF switches Width: 122.4 mm Height: 144.2 mm Depth: 117.15 mm Product weight: 1.4 kg Ambient air temperature for operation: -40…70 °C Relative humidity: 1…95 % non-condensing IP degree of protection: IP30 Directives: 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility Standards: UL 61010-2-201; EN/IEC 61131-2; IEC 62443-4-2; EN 50121-4 Product certifications: CE; UL; RCM; DNV; ATEX; EAC; UKCA; UKEX; CSA C22-2 No 213; FCC part 15 class A; CCC Ex Number of Units in Package 1: 1 Warranty (in months): 18

HS Code

8536.90

• EAN 3606481813817
• SAP 1200723094
• Code 83853230
