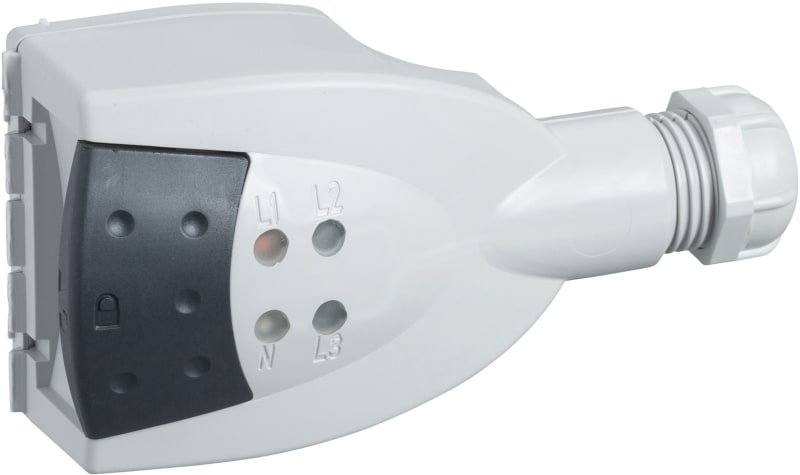

PLUG 4P+PE Fasevalg (KBC10DCB40)

Schneider Electric KBC10DCB40 Canalis KBC outlet plugs 10-16A. with or without fasevalg is used for light and st.

Manufacturer part number (MPN)

KBC10DCB40

EAN / GTIN

3606480002083

Sales unit

pcs

Package quantity

10 pcs

Range

Canalis

Offer type

Classic; Control system

Product or component type

Connector

Device application

Lighting; Power socket distribution

Range compatibility

Canalis KBA busbar trunking; Canalis KBB busbar trunking

[Ie] rated operational current

10 A at 35 °C

[Ue] rated operational voltage

230...240 V

Network frequency

50/60 Hz

Communication port protocol

DALI

Tap-off unit polarity

3L+N+PE

Tap-off unit connector type

With phase selection

Colour

Cream (RAL 9001)

[Uimp] rated impulse withstand voltage

4 kV

[Ui] rated insulation voltage

690 V

Protection type

Without protection

Width

1 m

Depth

62 mm

Height

60 mm

Product weight

65 g

Quantity per set

Set of 10

Standards

EN/IEC 61439-1; EN/IEC 61439-6

IP degree of protection

IP55 conforming to EN/IEC 60529

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

300

Country of origin

PL

Warranty (in months)

18

RAL-number

9001

With locking

Yes

Protection

None

Number of conductors (without earthing)

4

Phase selection

Yes

Number of poles

5

Length

1000 mm

Degree of protection (IP)

IP55

Branch off type

Pipe in-lead

Rated voltage AC 50 Hz

230–400 V

Rated current AC 50 Hz

10 A

HS Code

8536.90

• EAN 3606480002083
• SAP 1000285146
• Code 873652
