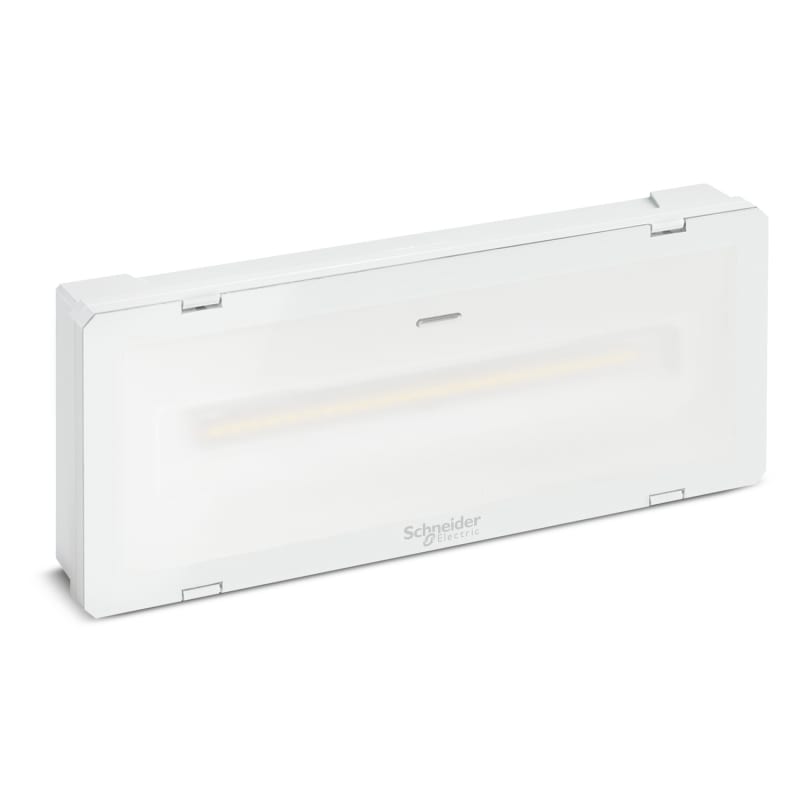

Schneider Electric Emergency luminaire, Exiway Smartled, Activa/Dicube, selectable duration, 500LM, maintained/non maintained, IP65, white OVA48525
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric OVA48525 Exiway Smartled emergency lighting Dicube/Activa/Dardo, 500lm, 1-3 t, M/NM, IP65.
Technical Specifications
- Manufacturer part number (MPN)
- OVA48525
- EAN / GTIN
- 3606487197874
- Sales unit
- pcs
- Luminous flux
- 500 lm
- Range
- Exiway
- Product name
- Exiway Smartled Dicube
- Product or component type
- Emergency luminaire
- Device application
- Anti-panic lighting
- Function
- Addressable; Self-test
- Operational mode
- Non-maintained; Maintained
- Number of batteries
- 1 x 6.4 V 1.5 Ah LiFePO4
- Colour tint
- White
- Light source
- LED
- Visibility distance
- 24 m; 30 m
- Mounting support
- Wall; Ceiling; False ceiling
- [Ue] rated operational voltage
- 230 V AC 50/60 Hz
- Power consumption in VA
- 3.9 VA non-maintained; 8.1 VA maintained
- Power consumption in W
- 0.4 W non-maintained; 3.2 W maintained
- Electrical insulation class
- Class II
- LED lifespan
- 100000 h
- Test function
- Automatic periodical functional & duration test
- Autonomy
- 1 h; 1.5 h; 2 h; 3 h
- Charging time
- 12 h
- Type of glass
- Serigraphed transparent glass
- Local signalling
- LED
- Material
- Polycarbonate self-extinguishing
- Height
- 127 mm
- Depth
- 45.5 mm
- Width
- 300 mm
- Product weight
- 620 g
- IP degree of protection
- IP65
- IK degree of protection
- IK07
- fire resistance
- 850 °C
- Ambient air temperature for operation
- 0…40 °C
- Standards
- EN 60598-2-22: II; EN 62471; EN 62034; EN 60598-1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Warranty (in months)
- 18
- Mounting method
- Surface mounting/recessed mounting
- Type of indicator
- Single/double-sided
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Light distributor
- Diffuser lens/optic/panel
- Luminous flux in emergency mode
- 500 lm
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Degree of protection (IP)
- IP65
- Impact strength
- IK07
- Protection class according to IEC 61140
- II
- Max. system power
- 3.6 W
- Rated luminous flux according to IEC 62722-2-1
- 500 lm
- Height/depth
- 45.5 mm
- Length
- 127 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Power consumption in emergency mode
- 3.2 W
- Type of lithium-ion battery
- Lithium iron phosphate (LiFePO4)
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 3606487197874
- SAP 1200931230
- Code 84218880
Product Documentation
More from Schneider Electric
Schneider Electric
PLUG 4P+PE Fasevalg (KBC10DCB40)
Schneider Electric
Schneider Electric redundant power supply module X80 - 100..240 V AC - Safety BMXCPS4002S
Schneider Electric
Schneider Electric discrete output module X80 - 32 outputs - 24 V DC positive BMXDDO3202K
Schneider Electric
Schneider Electric PratiKa plug - screw - angled - 16A - 3P + N + E - 380...415 V AC - wall PKE16W435
Schneider Electric
Schneider Electric Motion controller, Modicon M262, 3NS/instruction, 8 axes, Ethernet, Sercos TM262M25MESS8T
Schneider Electric
2 avgan. LF busbar GV2 63A Snap-In
GV2G2LA
Schneider Electric

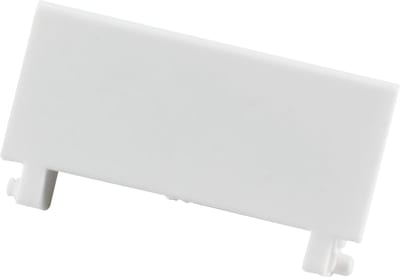

Marking Tag RX-Plinth - 10 PCS
RXZL420
Schneider Electric

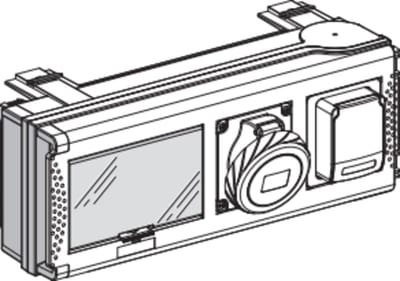

BOX M/CE-Socket 3L+PE/3L+N+PE
