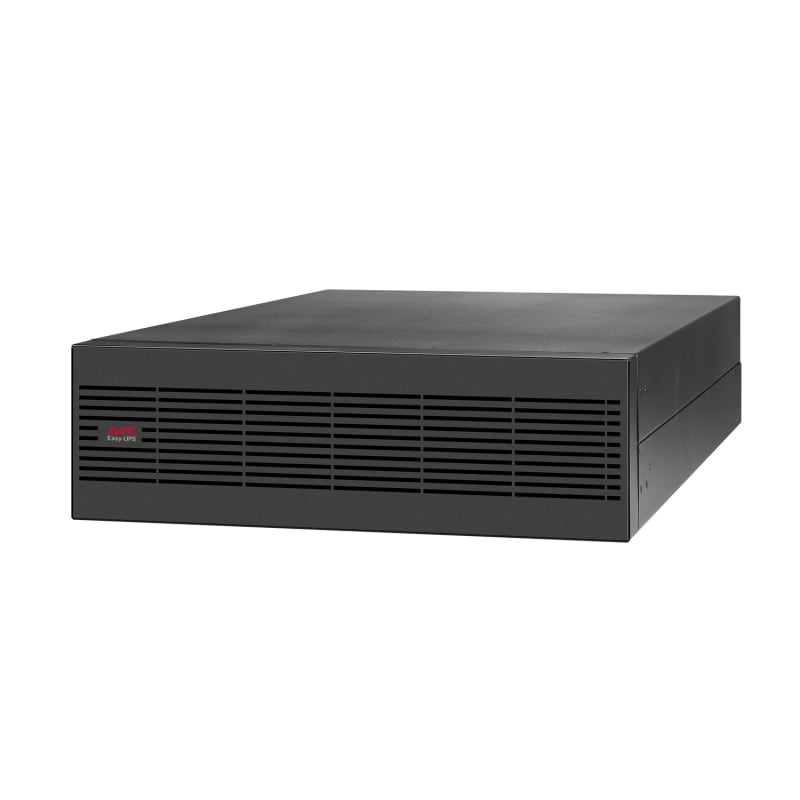

APC EasyUPS SRV 240VRM Bat pack
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRV240RLBP-9A APC Easy UPS On-Line SRV Batt.pack 6/10kVA for utvi.driftstidmod. 240V, 2160VAh, rackmont.with set, 3U.
Technical Specifications
- Manufacturer part number (MPN)
- SRV240RLBP-9A
- EAN / GTIN
- 0731304343356
- Sales unit
- pcs
- Product or component type
- External battery pack
- Number of rack unit
- 3U
- battery type
- Lead-acid battery
- Provided equipment
- User manual; Battery cable; Rack mounting brackets
- Range of product
- Easy UPS On-Line
- Number of battery blocks per string
- 20
- Device mounting
- Rack mount
- Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery voltage
- 240 V
- Colour
- Black
- Height
- 133 mm
- Width
- 438 mm
- Depth
- 606 mm
- Product weight
- 63 kg
- mounting mode
- Rack-mounted with kit
- USB compatible
- No
- Product certifications
- CE; UKCA; EAC; EN/IEC 62040-1
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3000 m
- Ambient air temperature for storage
- -15…40 °C
- Storage Relative Humidity
- 0…95 % non-condensing
- Storage altitude
- 0…15000 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 25 cm
- Package 1 Width
- 87 cm
- Package 1 Length
- 58 cm
- Package 1 Weight
- 70 kg
- Country of origin
- CN
- Warranty (in months)
- 24
- Nominal voltage
- 240 V
- Weight
- 60000 g
- Size indication
- Block
- Capacity
- 9000 mAh
- Plastic housing
- No
- Length
- 606 mm
- Suitable for EX-applications
- No
- Ambient temperature
- 0–40 °C
- Suitable for rapid charger
- No
- Height including pole
- 133 mm
- Battery pack
- Yes
- Number of cells
- 20
Standards & Compliance
- HS Code
- 8507.20
Cross References
- EAN 0731304343356
- SAP 1200960904
- Code 84257164
Product Documentation
More from Schneider Electric
Schneider Electric

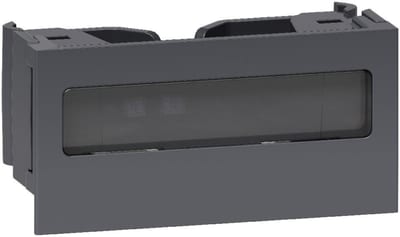

Schneider Electric ISM10921 New Unica Label Holder, Anthracite
Schneider Electric

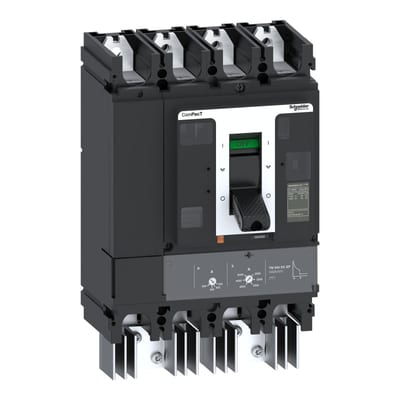

Schneider Electric Circuit breaker, ComPacT NSX500 TM DC EP, 50KA/1500VDC, 4 poles, TM-DC trip unit 400A C50F4TM400D3
Schneider Electric

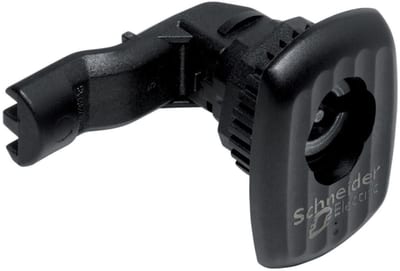

Lock insert, triangle 8 mm
NSYAEDLT8S3D
Schneider Electric

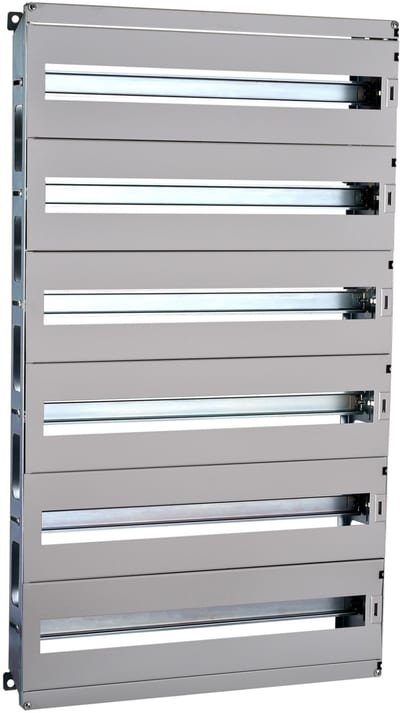

Modular frame 240M H1000XW800
NSYDLM240
Schneider Electric

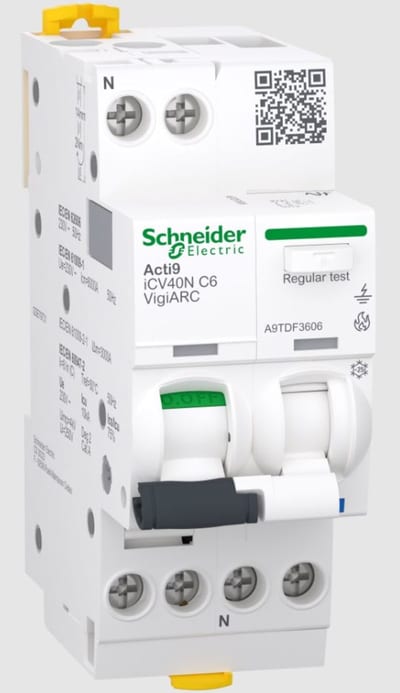

Schneider Electric Arc fault detection RCBO, ACTI9 ICV40N ARC, 1P+N, 6A, C curve, 30MA, type A-SI, 6000A A9TDF3606
Schneider Electric

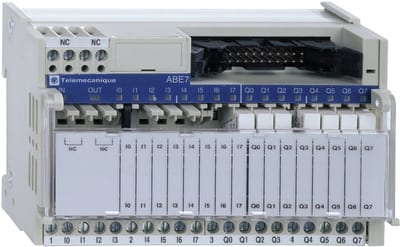

Schneider Electric Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm ABE7R16T111
Schneider Electric

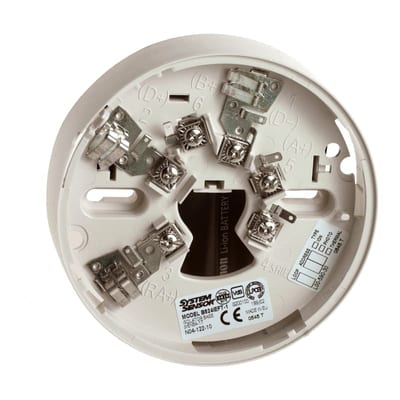

Plinth AP200 B524IEFT-1
FFS06711600
Schneider Electric

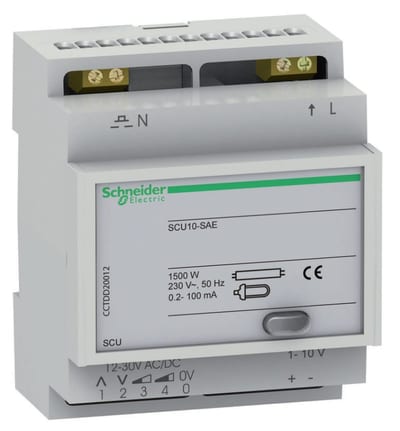

Schneider Electric SCU - DIN - remote control dimmer - 1..10 V CCTDD20011
