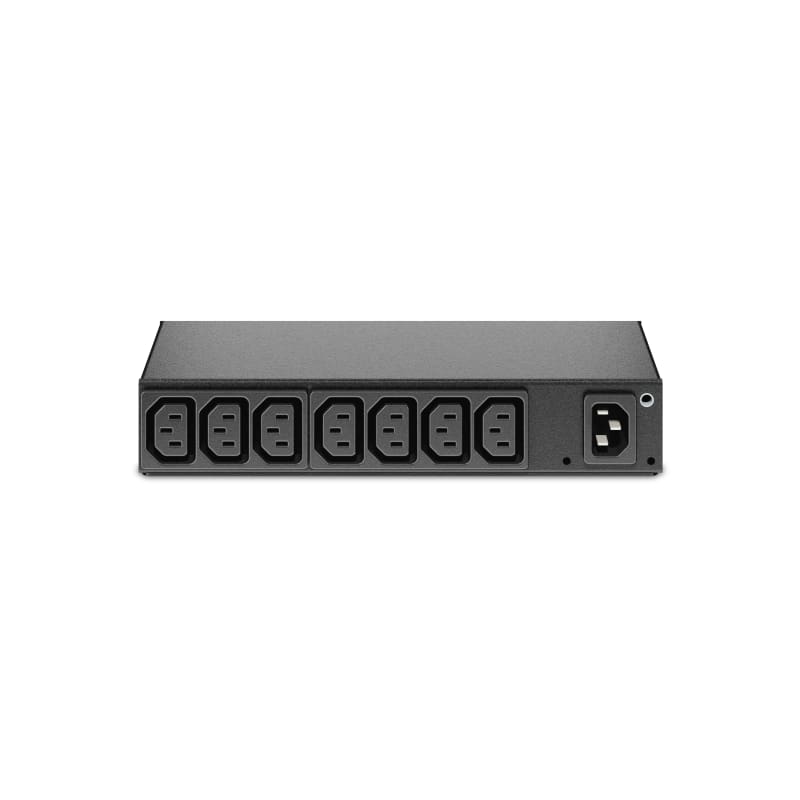

RACK PDU, Basic (AP6015A)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP6015A RACK PDU, BASIC, 0U/1U, 120-240V/15A, 220-240V/10A, (8) C13.
Technical Specifications
- Manufacturer part number (MPN)
- AP6015A
- EAN / GTIN
- 0731304327790
- Sales unit
- pcs
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Basic
- Provided equipment
- Installation guide; Safety guide
- Input Voltage
- 100 V; 120 V; 200 V; 208 V; 230 V; 240 V
- Height
- 237 mm
- Width
- 44 mm
- Output Voltage
- 100 V; 120 V; 200 V; 208 V; 230 V; 240 V
- Depth
- 76 mm
- Product weight
- 0.91 kg
- Mounting location
- Front; Rear
- Mounting preference
- No preference
- Input Plug Type
- IEC 60320 C14
- mounting mode
- Not rack-mountable
- Rack units
- 1U
- Mounting position
- Horizontal
- [In] rated current
- 12 A
- permissible voltage
- 100…240 V
- Max line current
- 15 A
- Input current limits
- 15 A
- Load capacity
- 2300 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 8 IEC 60320 C13
- Product certifications
- cUL listed; CE; EAC; IRAM; UL listed; VDE
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 28.6 cm
- Package 1 Width
- 13 cm
- Package 1 Length
- 21 cm
- Package 1 Weight
- 1.37 kg
- SCC14
- 10731304327797
- Country of origin
- IN
- Warranty (in months)
- 24
- Nominal current
- 15 A
- Mounting direction
- Horizontal
- Electrical connection
- Connection cable with plug
- Number of C13 socket outlets
- 8
- Number of height units
- 1
- Length
- 93 mm
- Supply voltage
- 240 V
- Overvoltage category
- 1
- Interface ethernet
- Yes
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 0731304327790
- SAP 1200723266
- Code 83845737
Product Documentation
More from Schneider Electric
Schneider Electric

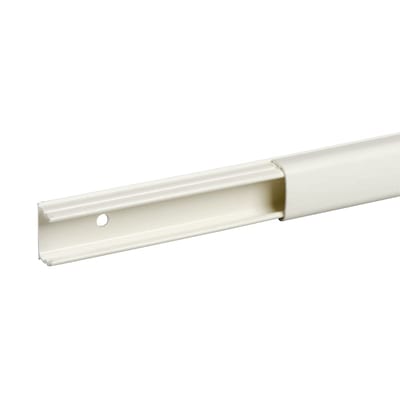

Schneider Electric OptiLine - minitrunking - 12 x 20 mm - PC/ABS - polar white ISM14130P
Schneider Electric
Schneider Electric LV429370T Toggle Padlocking Device, ComPacT NSX100/160/250, OFF-Only
Schneider Electric

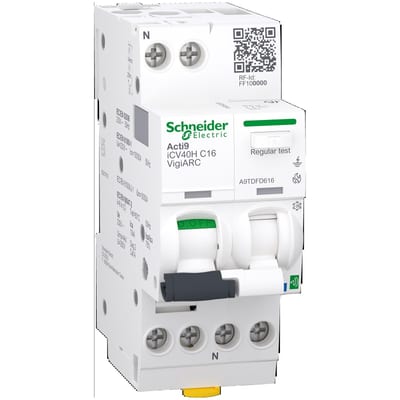

Schneider Electric Active arc fault detection RCBO, ACTI9 Active ICV40H ARC, 1P+N, 16A, C curve, 30MA, type A-SI, 10000A A9TDFD616
Schneider Electric

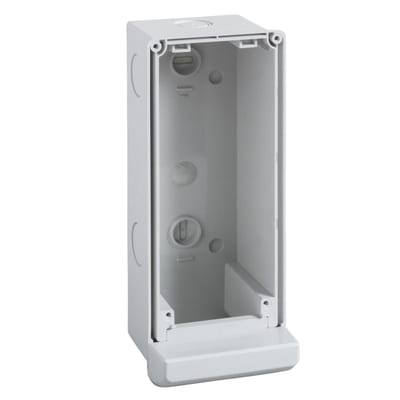

Wall box for PK Unika with svekk.
83920
Schneider Electric
APC Easy UPS SRV RM 72V EBP for 2/3 kVA
SRV72RLBP-9A
Schneider Electric

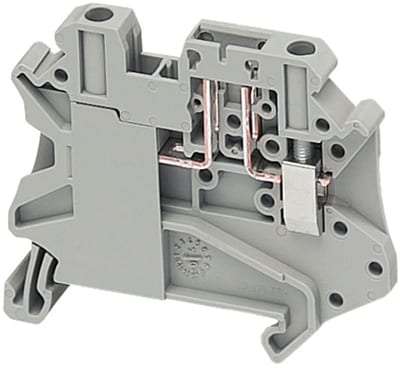

DIN-rail terminal knife 4mm² grey 2P (NSYTRV42TB)
Schneider Electric

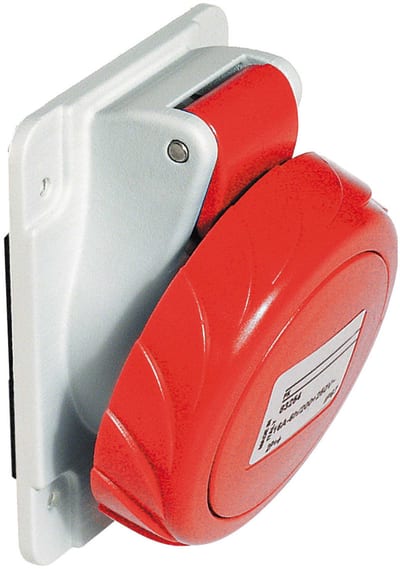

PratiKa Panel Socket Outlet, Angled, 63 A
81283
Schneider Electric

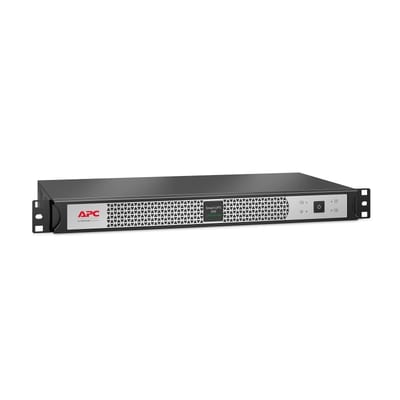

Schneider Electric APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4X IEC C13 outlets, SmartConnect Port, Short Depth SCL500RMI1UC
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AP6015A?
- AP6015A can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is AP6015A.
- What is the HS code for AP6015A?
- The customs tariff (HS) code for AP6015A is 8537.10.
- Who manufactures AP6015A?
- AP6015A is a Schneider Electric product in the Office & Onboard Equipment range.
- Is a datasheet available for AP6015A?
- Yes — the AP6015A datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AP6015A?
- The minimum order quantity is 1.
- Is AP6015A available?
- Yes — AP6015A is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
