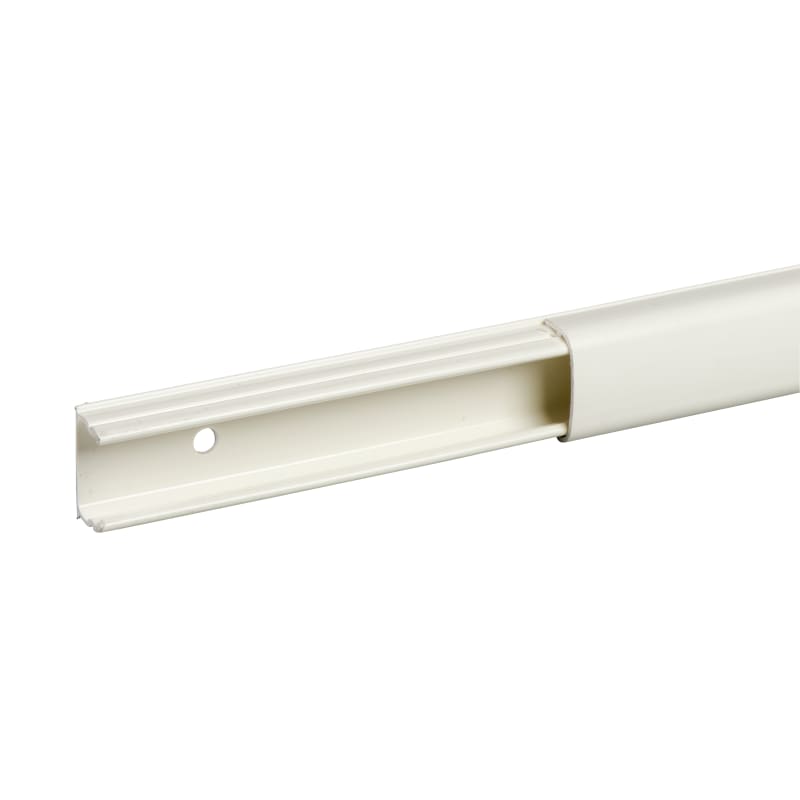

Schneider Electric OptiLine - minitrunking - 12 x 20 mm - PC/ABS - polar white ISM14130P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM14130P OptiLine Mini Trunking 12x20mm Halogen-free, 1 Rooms, PC/ABS, Pure white.
Technical Specifications
- Manufacturer part number (MPN)
- ISM14130P
- EAN / GTIN
- 3606480682957
- Sales unit
- m
- Package quantity
- 10 m
- Range of product
- Optiline
- Cabling installation system
- Trunking
- product type
- Mini trunking
- trunking type
- Mini trunking
- Trunking material
- Plastic
- Compartment partitioning
- 1 compartment
- colour
- White (RAL 9003)
- trunking dimension
- 12 x 20 mm
- Fixing mode
- Pre-punched fixing hole 100 mm; Power cable: screw-fixed
- Material
- PC/ABS
- quantity per package
- 42 m
- operating temperature
- -5…60 °C
- Length
- 2100 mm
- Height
- 12 mm
- Width
- 20 mm
- Standards
- 73/23/EEC; EN 50085-1:2005; EN 50085-2-1:2006
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Halogen free
- Yes
- RAL-number
- 9003
- Surface protection
- Untreated
- Pre-stamping
- No
- Type of fastening
- Bottom perforation
- Impact strength
- IK07
- With cable fixing clip
- No
- With duct connector
- No
- Usable cross section
- 148 mm²
- With protective foil
- No
- Degree of protection (IP)
- IP40
- Delivery on roll
- No
- Transparent
- No
- Suitable for circuit integrity
- No
- Cover model
- Loose
- Anti-bacterial treatment
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480682957
- SAP 1000623417
- Code 8336790
Product Documentation
