APC Easy UPS SRV RM 72V EBP for 2/3 kVA
Pricing
Request a quote
We reply within 24 hours
Product Description

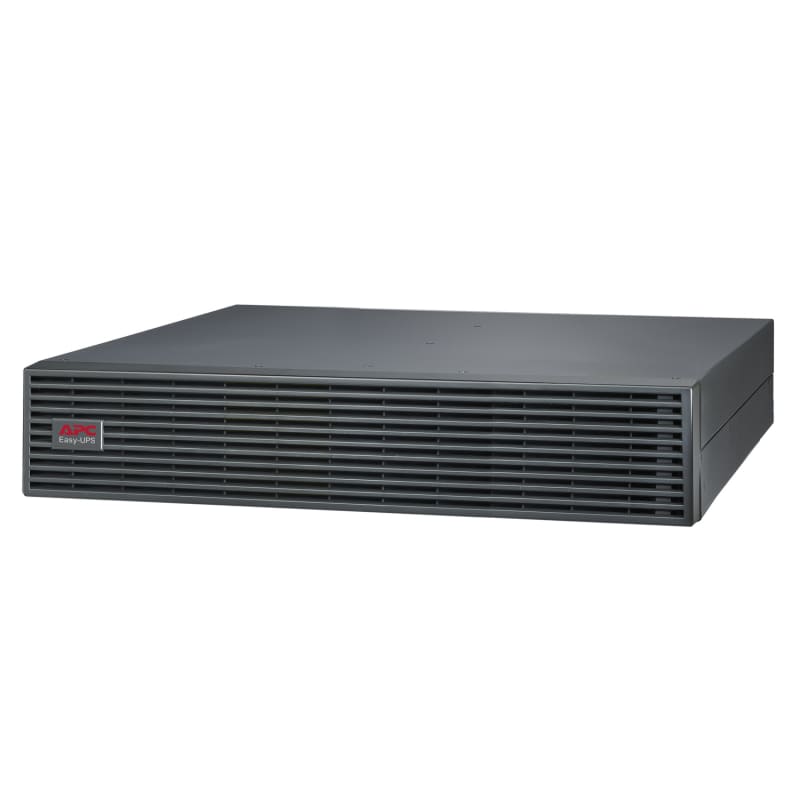

Schneider Electric SRV72RLBP-9A APC Easy UPS On-Line SRV 72 V rack-mount battery pack for 2/3 kVA extended-runtime models.
Technical Specifications
- Manufacturer part number (MPN)
- SRV72RLBP-9A
- EAN / GTIN
- 0731304403067
- Sales unit
- pcs
- Product or component type
- External battery pack
- Number of rack unit
- 2U
- battery type
- Lead-acid battery
- Provided equipment
- User manual; Battery cable; Rack mounting brackets
- Range of product
- Easy UPS On-Line
- Number of battery blocks per string
- 6
- Device mounting
- Rack mount
- Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery voltage
- 72 V
- Colour
- Black
- Height
- 86 mm
- Width
- 438 mm
- Depth
- 632 mm
- Product weight
- 42.5 kg
- mounting mode
- Rack-mounted with kit
- USB compatible
- No
- Product certifications
- CE; UKCA; EAC; EN/IEC 62040-1
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3000 m
- Ambient air temperature for storage
- -15…40 °C
- Storage Relative Humidity
- 0…95 % non-condensing
- Storage altitude
- 0…15000 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 24 cm
- Package 1 Width
- 80 cm
- Package 1 Length
- 60 cm
- Package 1 Weight
- 53.1 kg
- Country of origin
- CN
- Warranty (in months)
- 24
- Nominal voltage
- 72 V
- Weight
- 42500 g
- Size indication
- Block
- Capacity
- 18000 mAh
- Plastic housing
- No
- Length
- 632 mm
- Suitable for EX-applications
- No
- Ambient temperature
- 0–40 °C
- Suitable for rapid charger
- No
- Height including pole
- 86 mm
- Battery pack
- Yes
- Number of cells
- 12
Standards & Compliance
- HS Code
- 8507.20
Cross References
- EAN 0731304403067
- SAP 1200476754
- Code 82548420
