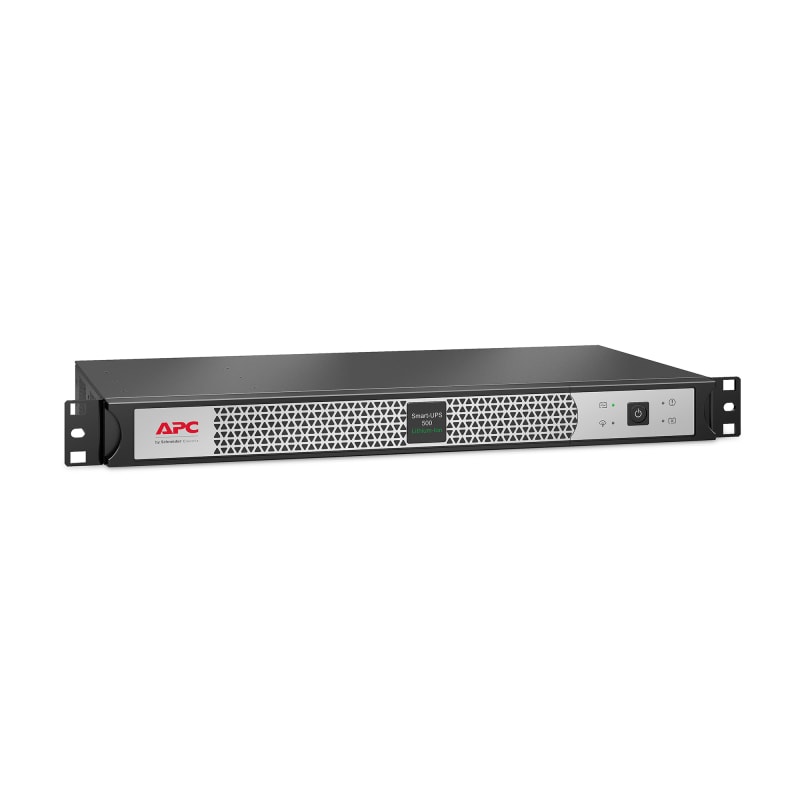

Schneider Electric APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4X IEC C13 outlets, SmartConnect Port, Short Depth SCL500RMI1UC

Schneider Electric SCL500RMI1UC SCL -UPS, Line Interactive, 500VA, Li-ion, RM 1U, 230V, 4x IEC C13-outlet, SmartConnect-port, short depth.

Manufacturer part number (MPN)

SCL500RMI1UC

EAN / GTIN

0731304402558

Sales unit

pcs

Voltage

230 V

Presentation

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Main input voltage

230 V AC 1 phase

Input connection

IEC 60320 C14

Input protection

Circuit breaker

Efficiency at full load

208...253 V

Input frequency

50/60 Hz +/- 3 Hz auto sensing

Output voltage

230 V AC 1 phase

Rated power in W

400 W

Rated power in VA

500 VA

Output connection

4 IEC 60320 C13

Harmonic distortion

Less than 5 %

Maximum configurable power in VA

500 VA

Maximum configurable power in W

400 W

Transfer time

6 ms typical : 10 ms maximum

UPS topology

Line interactive

Waveform type

Its wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Li-Ion (Lithium-Ion) internal included

Control panel

LED status display with on line : on battery : replace battery and building wiring fault

Free slot

0

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Software compatibility

SmartConnect; IT Expert; PowerChute Serial Shutdown

UPS connectivity

Serial port; USB port; SmartConnect port

Communication port support

SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use

Software package

SmartConnect software for remote power monitoring feature availability varies by terms of use

Surge energy rating

510 J

Noise filtering

Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449

Number of rack unit

1U

Color

Black with silver front bezel

Height

44 mm

Width

432 mm

Depth

232 mm

Product weight

4.06 kg

Mounting preference

No preference

Mounting mode

Rack-mounted

USB compatible

Yes

Provided equipment

Installation guide; Rack mounting support rails; USB cable

Additional specification

Cloud-enabled monitoring

Redundant

No

Range of product

Smart-UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

C-Tick; CE; EAC; RCM; UK PSTI

Equipment protection policy

Lifetime : $150000

Standard

EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…7620 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

45 dBA

Heat dissipation

41.61 Btu/h

Operating altitude

0...10000 ft

Battery graph comment

This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v

Extendable runtime

0

Battery design life

8…10 year(s)

Battery charging power

10 W rated

Number of Units in Package 1

1

Country of origin

PH

Warranty (in months)

60

HS Code

8504.40

• EAN 0731304402558
• SAP 1200477956
• Code 82551917
