Schneider Electric

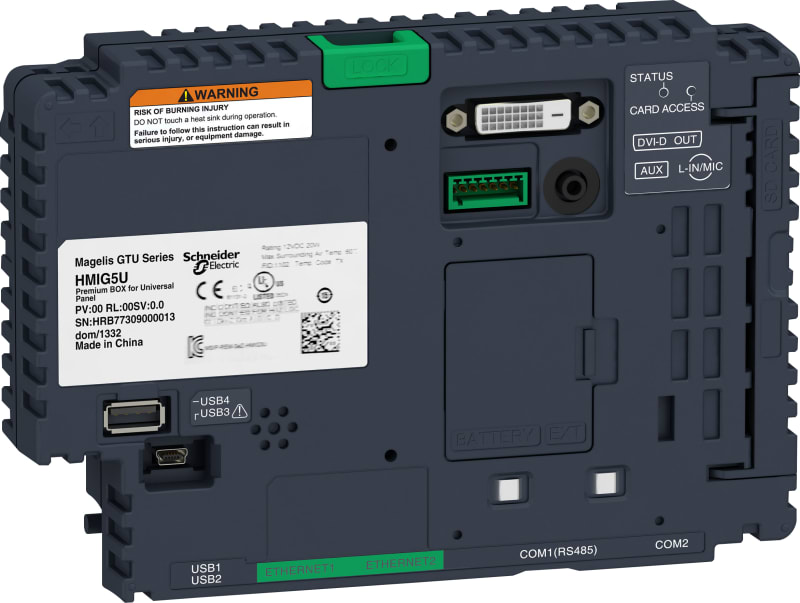

HMIGTU Open BOX, Univ. Panel
Part numberHMIG5UEAN / GTIN3606480687211HS code8538.90
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric HMIG5U HMIGTU Open BOX, Universal Panel, Win7e.
Technical Specifications
- Manufacturer part number (MPN)
- HMIG5U
- EAN / GTIN
- 3606480687211
- Sales unit
- pcs
- Range of product
- Harmony GTU
- Product or component type
- Base unit
- Device short name
- Open Box
- Range compatibility
- Harmony GTU
- [Us] rated supply voltage
- 12...24 V DC power supply
- Integrated connection type
- Ethernet TCP/IP with 2 RJ45; COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s; COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s; Auxiliary port terminal block; Expansion unit fieldbus card; USB 2.0 port mini B USB; DVI-D video port DVI-D; Microphone mini-jack; USB 2.0 port with 3 USB type A
- Operating system
- Windows Embedded 7
- Software package
- Internet Explorer; Vijeo Citect web client; Vijeo Designer run time; .NET framework 4.0; Adobe PDF reader; CAD viewer; Multimedia player; Office reader; VNC client/server
- Processor name
- Intel X86 1.3 GHz
- Data storage equipment
- 16 GB CFast card
- Port Ethernet
- 10BASE-T/100BASE-TX/1000BASE-T
- Memory description
- 512 KB NVRAM backup memory; 2 GB RAM internal
- Width
- 188 mm
- Height
- 131 mm
- Product weight
- 0.9 kg
- Standards
- CSA C22.2 No 142; ANSI/ISA 12-12-01; UL 508; Class I division 2 CSA C22.2 No 213; IEC 61132-2
- Ambient air temperature for operation
- 0…60 °C
- Ambient air temperature for storage
- -20…60 °C
- Pollution degree
- 2 conforming to IEC 61131-2 ed.3
- Relative humidity
- 10…90 % non-condensing
- Operating altitude
- 2000 m
- Vibration resistance
- 3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2; 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2
- Electromagnetic compatibility
- Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 13.5 cm
- Package 1 Width
- 21.0 cm
- Package 1 Length
- 26.5 cm
- Package 1 Weight
- 1.161 kg
- Country of origin
- CN
- Warranty (in months)
- 18
- Supply voltage DC
- 12–24 V
- Voltage type (supply voltage)
- AC/DC
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-422
- 1
- Number of HW-interfaces RS-485
- 2
- Number of HW-interfaces USB
- 4
- Number of HW-interfaces parallel
- 1
- Number of HW-interfaces other
- 2
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- Operating temperature
- 0–60 °C
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- Yes
- Suitable for safety functions
- Yes
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606480687211
- SAP 1000713392
- Code 8679352
Product Documentation
Document preview: Schneider Electric HMIG5U — OEM Product Page
