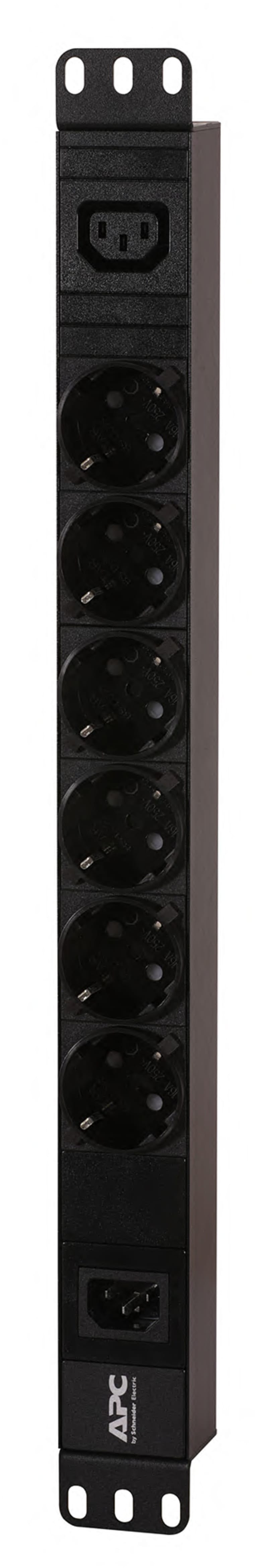

Schneider Electric Easy Rack PDU, Basic, 1U, 1 Phase, 2.3kW, 230V, 10A, 6 SCHUKO and 1 C13 outlets, IEC60320 C14 inlet EPDU1010B-SCH

Schneider Electric EPDU1010B-SCH Easy PDU Basic 1U Rack 10A 230V OUTLET: 6 pcs SCHUKO & 1 pcs C13.

Manufacturer part number (MPN)

EPDU1010B-SCH

EAN / GTIN

0731304424505

Sales unit

pcs

Voltage

230 V

Rated current

10 A

Colour

Black

Product or component type

PDU

PDU type

Basic

Cord length

2.5 m

Number of cables

1

Provided equipment

Installation guide; Toolless mounting kit; Rack mounting brackets

Input Voltage

200...240 V

Height

44.4 mm

Width

482 mm

Output Voltage

200...240 V

Depth

44.4 mm

Product weight

0.6 kg

Mounting location

Front; Rear

Mounting preference

No preference

Input Plug Type

IEC 320 C14 10 A

mounting mode

Rack-mounted

Rack units

1U

Mounting position

Horizontal

Input current limits

10 A

Load capacity

2300 VA

Network frequency

50/60 Hz

Number of input connectors

1

Outlet type and quantity

6Schuko CEE 7 10 A; 1IEC 320 C13 10 A

Product certifications

CE

Ambient air temperature for operation

-5…45 °C

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…15240 m

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

24

Country of origin

CN

Warranty (in months)

12

With surge protection module

No

Mounting direction

Horizontal

Electrical connection

Connection cable with plug

Type of electric connection

C14

Cable length

2.5 m

Number of height units

1

Length

44.4 mm

Supply voltage

240 V

Overvoltage category

2

Mains filter

No

Switchable

No

With meter

No

Control function

No

SNMP

No

Interface ethernet

No

With display

No

With LED indication

No

With fuse

No

Ampere meter

No

Temperature measurement

No

With mounting material

Yes

HS Code

8537.10
