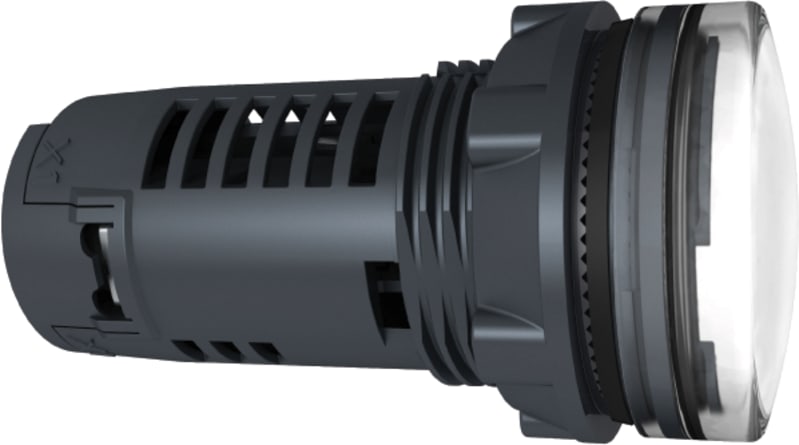

Schneider Electric Harmony XB5 Monolithic Pilot Light White LED 24 V AC/DC Ø22 mm

Schneider Electric XB5EVB1 is a Harmony XB5 monolithic pilot light with a plain white lens and integral universal LED, sized for a 22.5 mm panel cutout. The dark-grey plastic bezel and plastic fixing collar house a steady-signal indicator supplied from 24 V AC/DC (19.2–30 V DC, 21.6–26.4 V AC) at 18 mA. Rated 100,000 h service life, with screw-clamp terminals suited to control-panel indication in industrial machinery.

Manufacturer part number (MPN)

XB5EVB1

EAN / GTIN

3389119041317

Sales unit

pcs

Voltage

24 V

Range of product

Harmony XB5

Product or component type

Pilot light

Device short name

XB5

Bezel material

Dark grey plastic

Fixing collar material

Plastic

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

White

Operator additional information

With plain lens

Light source

Universal LED

Bulb base

Integral LED

Light source colour

White

[Us] rated supply voltage

24 V AC/DC at 50/60 Hz

Device presentation

Monolithic product

Height

29 mm

Width

29 mm

Depth

54 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.038 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Signalling type

Steady

Compatibility code

XB5

Supply voltage limits

19.2…30 V DC; 21.6…26.4 V AC

Current consumption

18 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 50102

Standards

IEC 60947-1; IEC 60947-5-4; JIS C8201-5-1; CSA C22.2 No 14; UL 508; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; UL listed

Vibration resistance

5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 30 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Electromagnetic compatibility

Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electromagnetic emission class B conforming to IEC 55011

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.900 cm

Package 1 Width

3.400 cm

Package 1 Length

3.400 cm

Package 1 Weight

23.000 g

Unit Type of Package 2

S01

Number of Units in Package 2

88

Package 2 Height

15.000 cm

Package 2 Width

15.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

2.368 kg

Country of origin

ID

Warranty (in months)

18

Hole diameter

22.5 mm

Voltage type

AC/DC

Colour lens

White

Number of indicator lights

1

Rated operating voltage Ue

24 V

Colour front ring

Chrome

Type of electric connection

Screw connection

Degree of protection (IP)

IP66

With light source

Yes

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of lamp socket

LED

Type of lens

Flat

HS Code

8531.80
