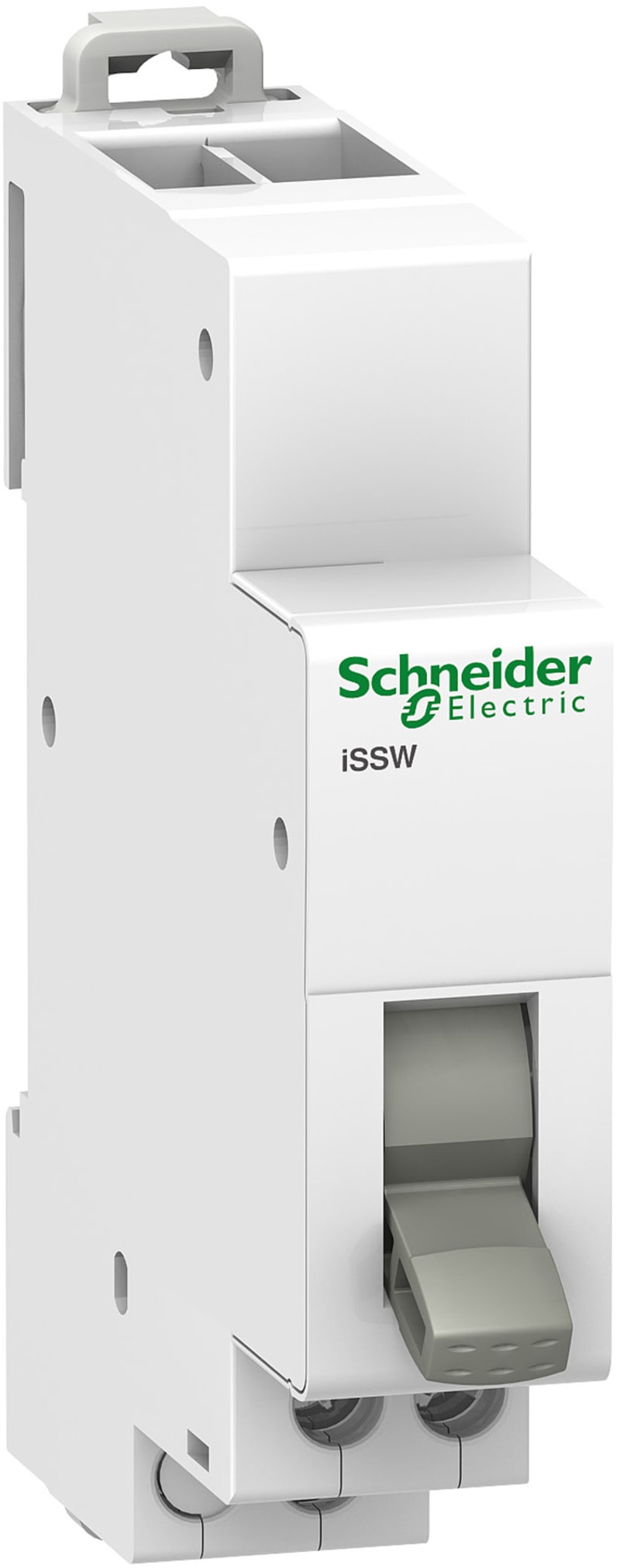

Schneider Electric linear switch - iSSW - 1 NO + 1 NC - 20A - 250 V AC - 2 positions A9E18072

Schneider Electric A9E18072 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Selector switch iSSW 20A 1 No+ 1 NC.

Manufacturer part number (MPN)

A9E18072

EAN / GTIN

3606480088490

Sales unit

pcs

Package quantity

12 pcs

Rated current

20 A

Contact configuration

1 NO + 1 NC

range of product

Acti9

Product name

Acti9 iSSW

Product or component type

Changeover switch

Device short name

iSSW

Device application

Electrical circuit control

Poles description

2P

Contacts type and composition

1 NO + 1 NC

[Ue] rated operational voltage

250 V AC 50/60 Hz

Standards

IEC 60669-1; IEC 60947-5-1

[Ie] rated operational current

20 A

Control type

Toggle 2 positions

Marking

0 - 1

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

2

Height

82 mm

Width

18 mm

Depth

75 mm

Colour

White

Electrical durability

AC-22: 30000 cycles cos Phi = 0.8

Connections - terminals

Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² flexible; Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² rigid without cable end

Wire stripping length

9 mm

Tightening torque

1 N.m

IP degree of protection

IP20 conforming to IEC 60529

Tropicalisation

2

Pollution degree

3

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…70 °C

Country of origin

BE

Warranty (in months)

18

Number of contacts as normally open contact

1

Number of contacts as normally closed contact

1

Number of poles

1

Rated voltage

250 V

Min. rated voltage

250 V

Voltage type

AC

With signal lamp

No

Colour calotte

White

Width in number of modular spacings

1

Built-in depth

75 mm

Degree of protection (IP)

IP40

Imprint/indication

None

HS Code

8536.50
