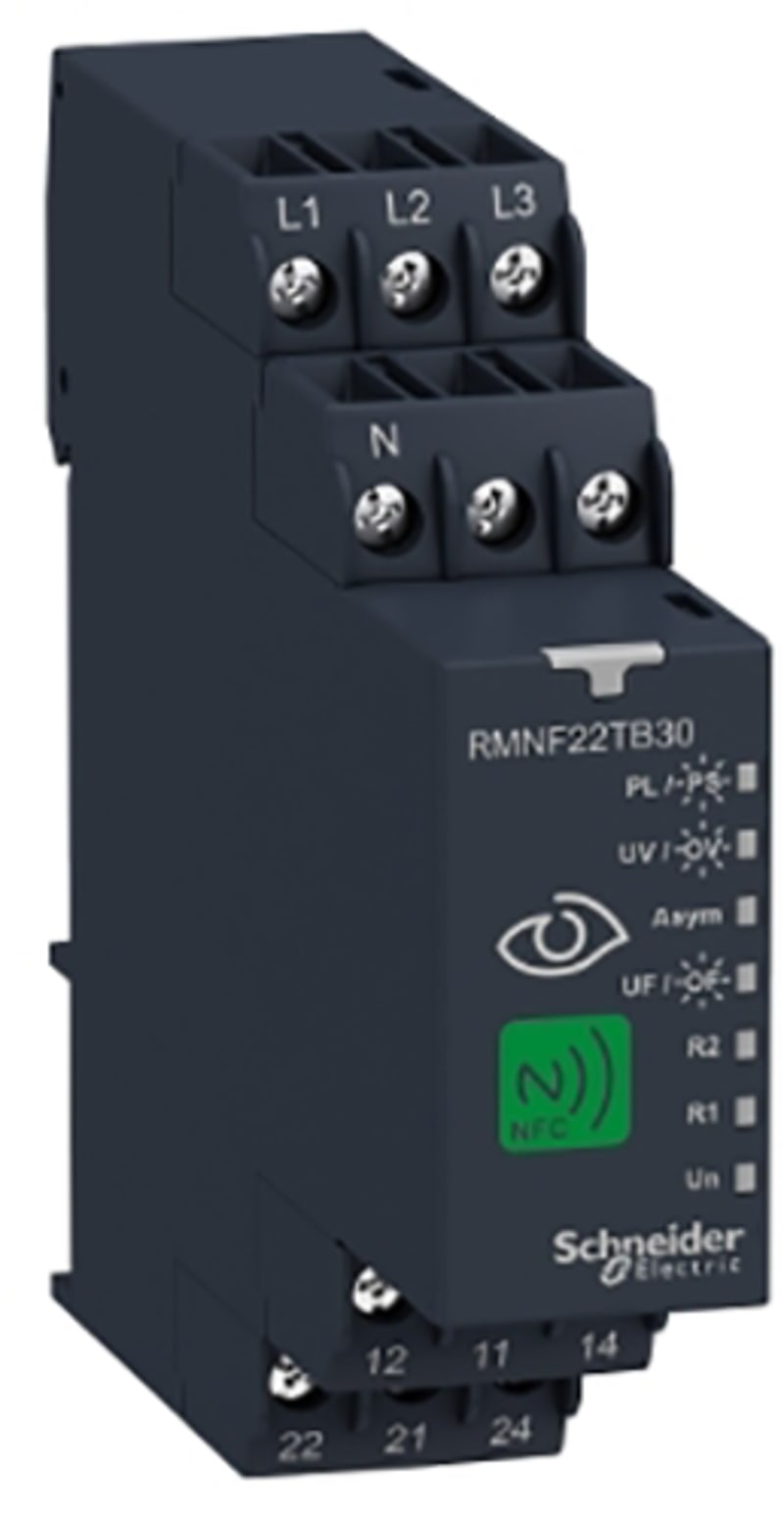

Schneider Electric Harmony, NFC 3-Phase monitoring relay, 8 A, 2CO, multifunction, 208…480 V AC RMNF22TB30

Schneider Electric RMNF22TB30 Kontrollrelé with NFC programmering 3x230-400V multifunction 2 C/O 8A.

Manufacturer part number (MPN)

RMNF22TB30 EAN / GTIN: 3606489591120 Sales unit: pcs Package quantity: 36 pcs Range of product: Harmony Control Relays Relay type: NFC control relay Relay name: RMNF22 Relay monitored parameters: Phase sequence; Phase failure detection; Overvoltage detection; Undervoltage detection; Overfrequency and underfrequency; Asymmetry App for product: Ecostruxure Industrial Device (downloadable from Google Play store or Apple Store) Product compatibility: NFC enabled mobile device Time delay type: Adjustable 0.1 s...60 min Tt- time delay upon fault Switching capacity in VA: 2000 VA NFC operating frequency: 13.56 MHz Maximum RF power transmitted: 0.0002 mW Setting accuracy of time delay: +/- 3 % for 10 s...60 min time delay range; +/- 300 ms for 0...10 s time delay range Reset time: 1500 ms at maximum rated voltage Maximum switching voltage: 250 V AC minimum switching current: 10 mA at 12 V DC Maximum switching current: 8 A AC Supply voltage limits: 166.4…576 V AC line to line; 96…332.4 V AC line to neutral Power consumption in VA: 4 VA at 480 V AC 60 Hz supply voltage frequency: 50...60 Hz +/- 10 % Output contacts: 2 C/O nominal output current: 8 A Measurement range: 208...480 V AC Setting accuracy of the switching threshold: +/- (1.5 % + 1 V) Hysteresis: 3 % fixed of at nominal voltage for phase failure detection Alarm threshold: 166...576 V adjustable overvoltage and undervoltage detection (line to line); 96...332 V adjustable overvoltage and undervoltage detection (line to neutral); 5...150 V adjustable asymmetry; 45...66 Hz adjustable overfrequency or underfrequency Run-up delay at power-up: 650 ms Maximum measuring cycle: 150 ms measurement cycle as true rms value Threshold adjustment voltage: 2...20 % of Un selected Adjustment of asymmetry threshold: 2...20 % of Un selected Repeat accuracy: +/- 0.5 % for input and measurement circuit; +/- 3 % for time delay Measurement error: +/- 0.05 %/°C with temperature variation; +/- 0.05 %/Hz with frequency variation Response time: <= 300 ms (in the event of a fault) Marking: WEEE; China RoHS; ROHS Insulation resistance: > 100 MOhm at 500 V DC conforming to IEC 60255-27 [Ui] rated insulation voltage: 400 V conforming to IEC 60664-1 [Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 60664-1 Dielectric test voltage: 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27 Operating position: Any position without derating Connections - terminals: Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end; Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...12 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1; 0.6…1.006 N.m Housing material: Polycarbonate Local signalling: LED Un: (steady), green for power ON; LED R1: (steady), amber for relay energised; LED R1: (blinking), amber for timing in progress; LED R2: (steady), amber for relay energised; LED R2: (blinking), amber for timing in progress; LED PL: (steady), red for alarm phase failure triggered; LED PS: (blinking), red for alarm phase sequence failure triggered; LED UV: (steady), red for alarm undervoltage failure triggered; LED OV: (blinking), red for alarm overvoltage failure triggered; LED UF: (steady), red for alarm underfrequency failure triggered; LED OF: (blinking), red for alarm overfrequency failure triggered; LED ASYM: (steady), red for alarm asymmentry failure triggered Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Electrical durability: 100000 cycles Mechanical durability: 10000000 cycles Utilisation category: AC-15 250 V AC 3 A conforming to IEC 60947-5-1; DC-13 24 V DC 2 A conforming to IEC 60947-5-1; AC-1 250 V AC 8 A conforming to IEC 60947-4-1; DC-1 24 V DC 5 A conforming to IEC 60947-4-1 [Us] rated supply voltage: 208...480 V AC 50/60 Hz, non self-powered; 120...277 V AC 50/60 Hz, non self-powered Operating system: Androidversion >= V7.0; IOSversion >= V14.5 Safety reliability data: MTTF = 128.5 years Control type: Without Diagnostic button Width: 22.5 mm; 22.9 mm Height: 90 mm; 88.9 mm Depth: 99 mm; 99.06 mm Product weight: 0.125 kg; 0.13 kg Immunity to microbreaks: 10 ms less than or equal Electromagnetic compatibility: Immunity for industrial environments conforming to IEC 61000-6-2; Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5; Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1; Emission standard for industrial environments conforming to IEC 61000-6-4; Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 Standards: EN/IEC 60255-1 Product certifications: CE; UL; CSA; CCC; EAC; RCM; UKCA Directives: 2014/30/EU - electromagnetic compatibility; 2014/35/EU - low voltage directive; 2014/53/EU - radio equipment directive Ambient air temperature for storage: -40…70 °C; -40…70 °C Ambient air temperature for operation: -30…60 °C; -30…60 °C Relative humidity: 93…97 % at 25…55 °C conforming to IEC 60068-2-30; at 25…55 °C Vibration resistance: 0.075 mm (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6; 1 gn (f= 58.1…150 Hz) not in operation conforming to IEC 60068-2-6; 0.035 mm (f= 10…60.1 Hz) in operation conforming to IEC 60068-2-6; 0.5 gn (f= 60.1…150 Hz) in operation conforming to IEC 60068-2-6 Shock resistance: 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27; 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP40 (housing) conforming to IEC 60529; IP40 (front panel) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1; 3 conforming to UL 508 Overvoltage category: III conforming to IEC 60664-1; III conforming to UL 508 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 3.000 cm Package 1 Width: 10.000 cm Package 1 Length: 10.800 cm Package 1 Weight: 138.000 g Unit Type of Package 2: S02 Number of Units in Package 2: 36 Package 2 Height: 15.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 5.578 kg Unit Type of Package 3: P06 Number of Units in Package 3: 576 Package 3 Height: 75.000 cm Package 3 Width: 60.000 cm Package 3 Length: 80.000 cm Package 3 Weight: 98.000 kg Country of origin: ID Warranty (in months): 18 Type of electric connection: Screw connection With detachable clamps: No Voltage type for actuating: AC Phase sequence monitoring: Yes Phase failure detection: Yes Function under voltage detection: Yes Function overvoltage detection: Yes Phase imbalance monitoring: Yes Min. adjustable delay-on energization time: 0.1 s Max. permitted delay-on energization time: 300 s Min. adjustable off-delay time: 0.1 s Max. permitted off-delay time: 300 s Number of contacts as normally closed contact: 2 Number of contacts as change-over contact: 2

HS Code

8536.49

• EAN 3606489591120
• SAP 1200182741
• Code 82116154
