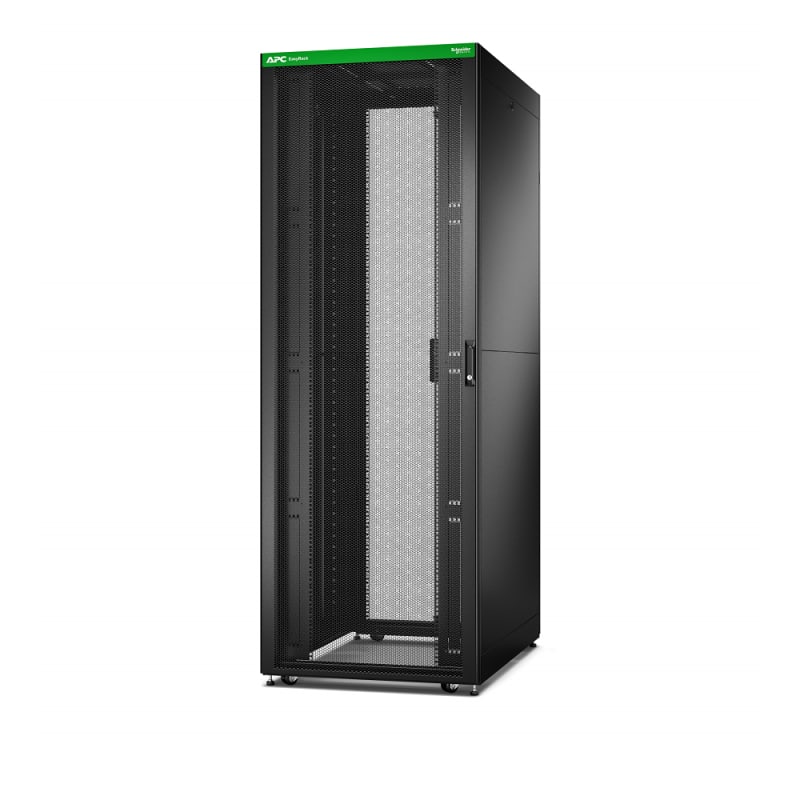

Schneider Electric APC Easy Rack, 48U, Black, with Roof, Castors, Feet, 4 Brackets, and Side Panels, No Bottom, 2258H x 800W x 1200D mm ER8822
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ER8822 Easy Rack 48U B:800mm D:1200mm H:2258mm with wheel,feet, lock, 4 brackets and side panel,without bottom. Black.
Technical Specifications
- Manufacturer part number (MPN)
- ER8822 EAN / GTIN: 0731304427933 Sales unit: pcs Dimensions: 800×1200×2258 Rack units: 48 U Product or component type: Rack enclosure Number of rack unit: 48U Provided equipment: Baying hardware; Key(s); Keyed-alike doors and side panels; Leveling feet; Mounting hardware; Pre-installed casters; Side panels Height: 2258 mm Width: 800 mm Depth: 1200 mm Product weight: 150 kg Colour: Black mounting mode: Not rack-mountable Maximum mounting depth: 1041.4 mm minimum mounting depth: 241.6 mm Rack width: 19" Marking: 18 gauge front door; 19 gauge rear door; 16 gauge post; 14 gauge EIA mounting rail Permanent permissible load: 1199.8 kg static; 599.6 kg dynamic Standards: UL 2416; UL 60950-1; EIA-310E Number of Units in Package 1: 1 Pallet layers: 1 Country of origin: CN Warranty (in months): 60 Mounting level: None Model: With permanent frame Type of profile rail: None Number of doors: 2 Type of ventilation: Passive Number of height units: 48 Max. load capacity: 1200 kg With roof plate: Yes With earthing: Yes With front door: Yes With sidewall: Yes Demountable: No material: Steel Surface finishing: Powder coating RAL-number: 9005 Degree of protection (IP): IP20
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 0731304427933
- SAP 1200510178
- Code 82677541
Product Documentation
More from Schneider Electric
Schneider Electric
3-Phase Easy UPS 40KVA 400V 3:3 Tower
E3SUPS40KHB
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30MA A9D32625
Schneider Electric
PLA55 bakelite mounting plate
NSYPMB55
Schneider Electric
Schneider TeSys D Contactor LC1D40A 40A 3P 100-250V AC/DC Coil
LC1D40AKUE
Schneider Electric
Schneider Electric Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NO ZBE101GEX
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40H, 1P+N, 25A, C curve, 10000A, A type, 30MA A9DC4625
Schneider Electric
Schneider Electric XACB3291 Harmony XAC Pendant Control Station 2-Speed Hoist 2 kW
Schneider Electric

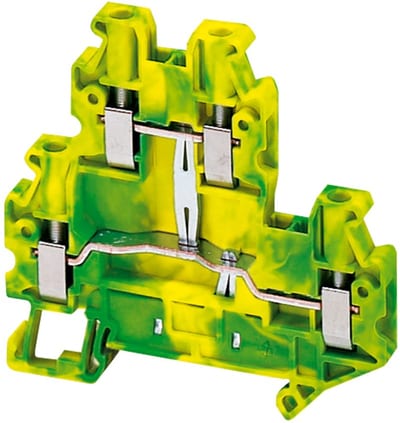

DIN-rail terminal 4mm² PE 4P 2-TIER
NSYTRV44DPE
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ER8822?
- ER8822 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ER8822.
- What is the HS code for ER8822?
- The customs tariff (HS) code for ER8822 is 9403.20.
- Who manufactures ER8822?
- ER8822 is a Schneider Electric product in the Office & Onboard Equipment range.
- Is a datasheet available for ER8822?
- Yes — the ER8822 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ER8822?
- The minimum order quantity is 1.
- Is ER8822 available?
- Yes — ER8822 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
