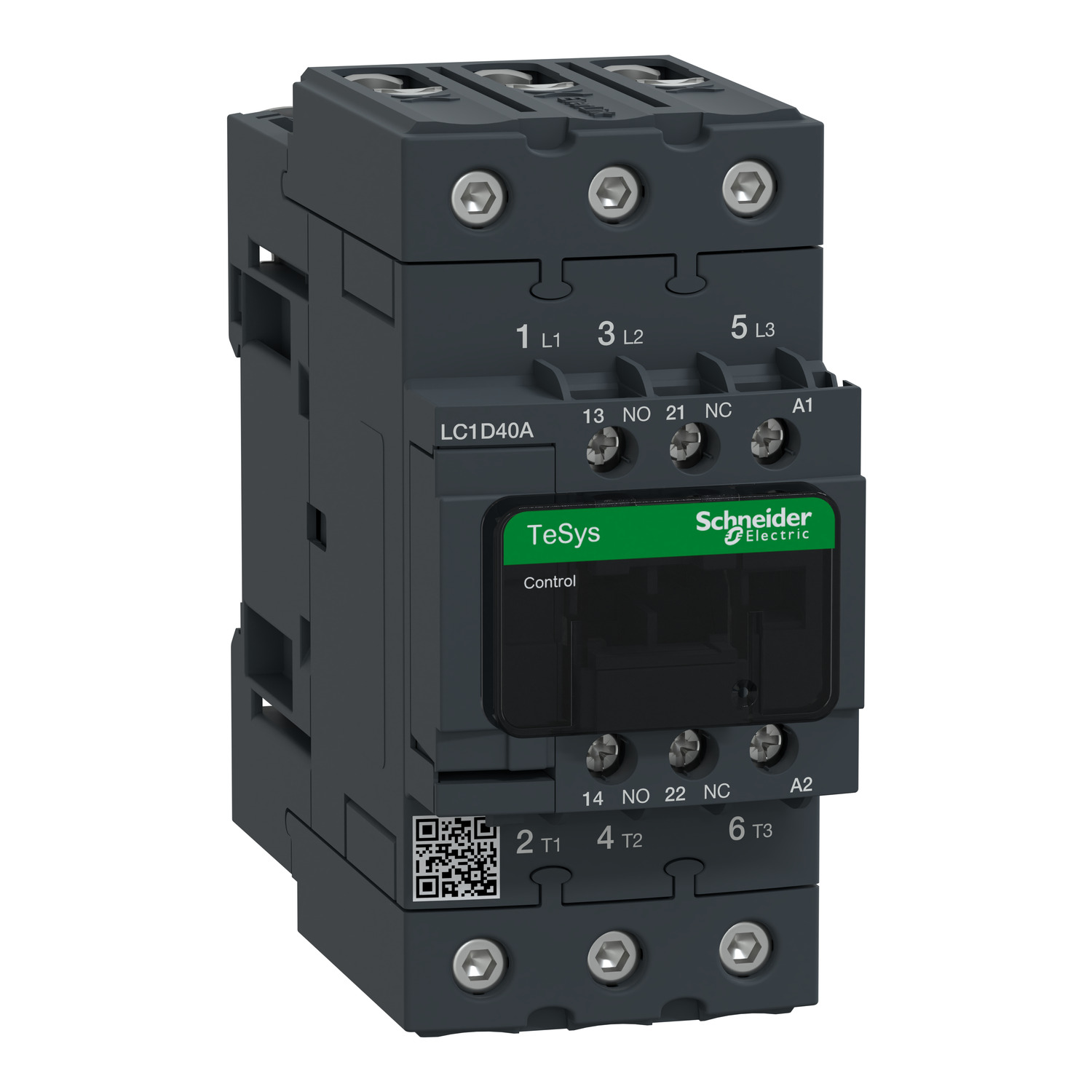

Schneider TeSys D Contactor LC1D40A 40A 3P 100-250V AC/DC Coil
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LC1D40AKUE — TeSys Deca Advanced contactor. Three-pole (3NO) AC-3 rated power contactor with wide-range electronic control coil. TeSys D LC1D40A contactor, 40 A / 18.5 kW at 400 V AC-3 duty (60 A AC-1), 100-250V AC/DC control circuit, 1NO+1NC integrated auxiliary, EverLink screw connectors, 55 mm frame. Applied in low-voltage switchgear panels, main and sub-distribution boards, motor control centres and marine/offshore control systems. Conforms to IEC/EN 60947-4-1, UL 508 and CSA C22.2 No.14.
Technical Specifications
- Series
- TeSys D (Deca Advanced)
- Poles
- 3P (3NO)
- Rated Current AC-3
- 40 A (≤440 V)
- Rated Power AC-3
- 18.5 kW at 400 V
- Rated Current AC-1
- 60 A
- Utilisation Categories
- AC-1 / AC-3 / AC-3e
- Coil Voltage
- 100-250V AC/DC
- Coil Type
- wide-range electronic
- Auxiliary Contacts
- 1NO + 1NC integrated
- Rated Impulse Withstand Uimp
- 6 kV
- Operating Rate
- up to 3600 cycles/h
- Ambient Temperature
- up to 60 °C
- Width
- 55 mm
- Mounting
- 35 mm DIN rail or screw
- Terminals
- EverLink screw connectors
- Standard
- IEC/EN 60947-4-1
- MPN
- LC1D40AKUE
- EAN
- 3606480988226
- Number of poles
- 3
- Rated current
- 40 A
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480988226
- SAP 1200023453
- Code 81438515
