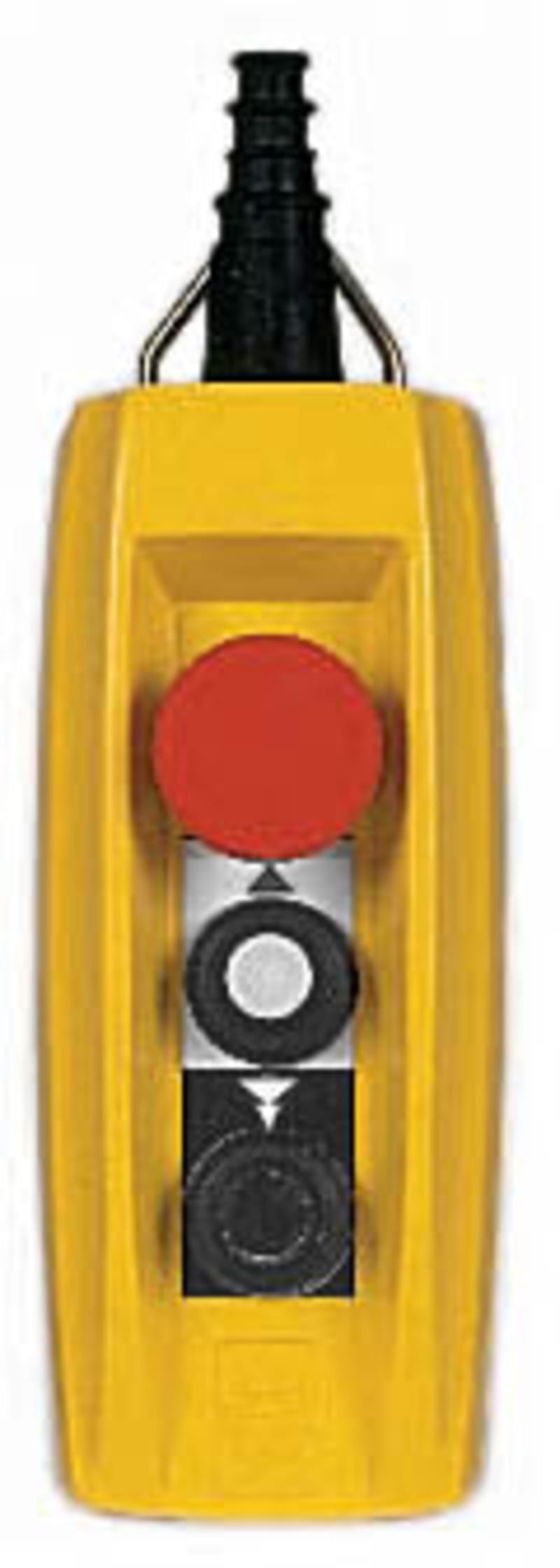

Schneider Electric XACB3291 Harmony XAC Pendant Control Station 2-Speed Hoist 2 kW

Schneider Electric XACB3291 is a Harmony XAC yellow glass-reinforced polyester pendant control station for controlling a 2-speed, 2-pole hoist motor rated 2 kW. It is fitted with two 2-pole raise/lower slow-fast push-buttons and one Ø40 mm 3-NC latching emergency stop, with mechanical interlocking. Screw-clamp terminals 1 x 2.5 mm2 or 2 x 1.5 mm2. Ratings: IP65 per IEC 60529, 1,000,000 mechanical cycles, ambient -25...70 degrees C. Standards IEC 60947-5-1, IEC 60204-32, CSA C22.2 No 14.

Manufacturer part number (MPN)

XACB3291

EAN / GTIN

3389110470772

Sales unit

pcs

Package quantity

12 pcs

Power

2 kW

Number of poles

2

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACB

Control station type

Double insulated

Enclosure material

Glass reinforced polyester

Electrical circuit type

Power circuit

enclosure type

Complete ready for use

Control station application

Control of 2-speed hoist motor

Control station composition

2 push-buttons + 1 emergency stop

Control button type

Stop push-button Ø 40 mm 3 NC latching; First push-button 2-pole raise, slow-fast; Second push-button 2-pole lower, slow-fast

Product compatibility

XESD1291 for reversing operation; XACS499 for emergency stop

Mechanical interlocking

With mechanical interlocking

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

IEC 60947-5-1; IEC 60204-32; CSA C22.2 No 14

Product certifications

CSA type 4

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 10…22 mm

[Ithe] conventional enclosed thermal current

12 A

[Ui] rated insulation voltage

Emergency stop contact: 400 V (pollution degree 3) conforming to IEC 60947-1; 600 V conforming to CSA

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Snap action

Operating force

17 N push-button; 40 N emergency stop

Short-circuit protection

10 A fuse protection by cartridge fuse type aM

Rated power in hp

2 hp at 240 V, CSA certified; 3 hp at 600 V, CSA certified; 5 hp at 400 V, CSA certified

Rated operational power in W

2200 W AC-3 at 240 V conforming to IEC 60947-3 appendix A; 2200 W AC-3 at 400 V conforming to IEC 60947-3 appendix A; 2200 W AC-4 at 240 V conforming to IEC 60947-3 appendix A; 2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A

Electrical durability

300000 cycles AC-3, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 300000 cycles AC-3, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 300000 cycles AC-4, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 300000 cycles AC-4, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 500000 cycles AC-3, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 500000 cycles AC-4, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 800000 cycles AC-3, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 800000 cycles AC-4, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

Terminals description ISO n°1

(51-52-54)OC; (61-62-64)OC; (43-44)NO; (33-34)NO; (13-14)NO; (23-24)NO

Terminals description ISO n°2

(31-32)NC; (11-12)NC; (21-22)NC

Terminal identifier

(11-12)NC; (13-14)NO

Product weight

0.99 kg

Warranty (in months)

18

Width

85 mm

Height

265 mm

Depth

74.5 mm

Number of command positions

2

Colour housing cover

Yellow

Suitable for emergency stop

Yes

Housing material

Plastic

Number of speeds

2

Type of executable motions

Transport - hoist

Degree of protection (IP)

IP65

Country of origin

Czechia

HS Code

8537.10
