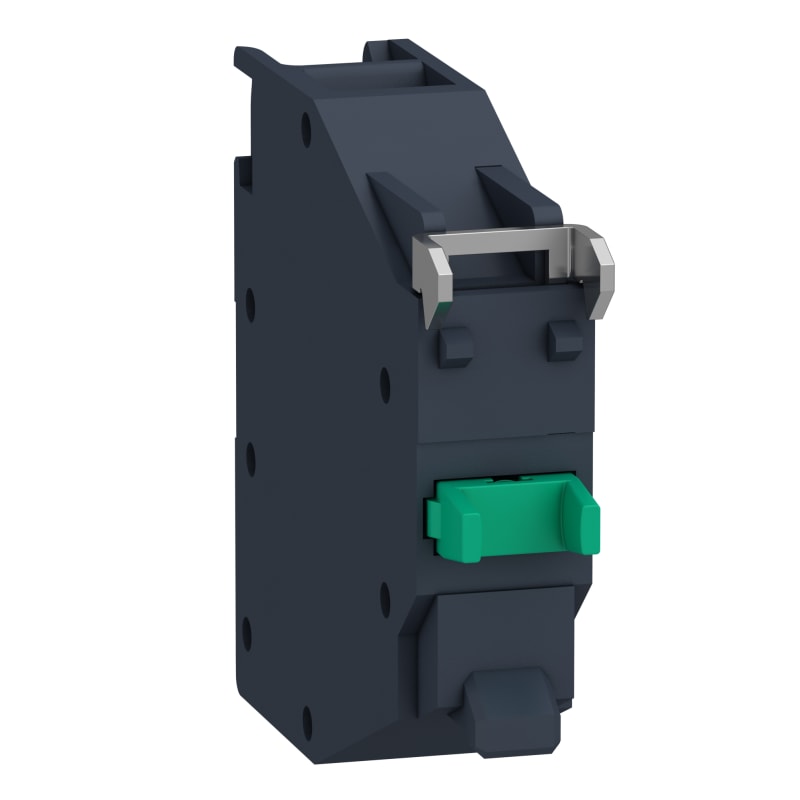

Schneider Electric Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NO ZBE101GEX

Schneider Electric ZBE101GEX Contact Element 1xNO for ATEX push buttons.

Manufacturer part number (MPN)

ZBE101GEX

EAN / GTIN

3606489486112

Sales unit

pcs

Contact configuration

1 NO

Range of product

Harmony XB4

Product or component type

Contact block

Device short name

ZBE

Sale per indivisible quantity

1

Contact operation

Standard

Contact block type

Single

Contacts usage

Gas protected contact

Connections - terminals

Screw clamp terminals, 2 x 1.5 mm² without cable end; Screw clamp terminals, 1 x 2.5 mm² with cable end

CAD overall width

38 mm

CAD overall height

10 mm

CAD overall depth

42.4 mm

Product weight

0.018 kg

Marking

Ex db eb IIC Gb

Contacts type and composition

1 NO

Positive opening

Without

Operating travel

1.657 mm (engagement point); 4.622 mm (changing state point); 4.452 mm (total travel)

Operating force

3.962 N

Mechanical durability

1000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

415 V

[Ie] rated operational current

1.9 A at 380 V, AC, A600 conforming to IEC 60947-5-1; 3 A at 240 V, AC, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC, A600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC, Q300 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC, Q300 conforming to IEC 60947-5-1; 2.87 A at 24 V, DC, Q300 conforming to IEC 60947-5-1

Mounting of block

Front mounting

Protective treatment

TH

Ambient air temperature for storage

-50…70 °C

Ambient air temperature for operation

-50…75 °C

Standards

EN/IEC 60079-7; EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-31; UL 60079-31; UL 60079-0; CSA C22.2 No 213; UL 60079-1; ANSI/ISA 12.12.01

Product certifications

cULus

Environmental characteristic

Hazardous location class I division 2

Number of Units in Package 1

1

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50

• EAN 3606489486112
• SAP 1200288876
• Code 82259598
