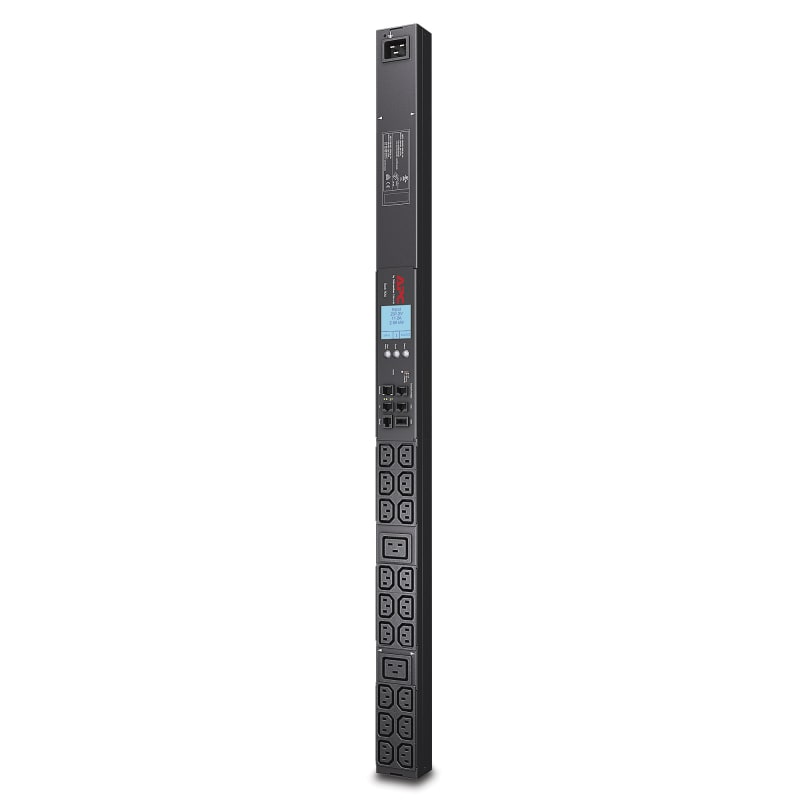

Schneider Electric Rack PDU 2G, Metered, ZeroU, 16A, 230V
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP8858EU3 Rack PDU 2G, Metered, ZeroU, 16A, 230V,.
Technical Specifications
- Manufacturer part number (MPN)
- AP8858EU3
- EAN / GTIN
- 0731304277033
- Sales unit
- pcs
- Voltage
- 230 V
- Rated current
- 16 A
- Presentation
- APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Metered
- Cord length
- 2.9 m
- Number of cables
- 1
- Provided equipment
- Installation guide; Locking input power cord; Rack mounting brackets; Serial configuration cable; Safety guide
- Input Voltage
- 200 V; 208 V; 230 V
- Height
- 902 mm
- Width
- 56 mm
- Output Voltage
- 230 V
- Depth
- 44 mm
- Product weight
- 2.93 kg
- Mounting location
- Side
- Mounting preference
- No preference
- Input Plug Type
- IEC 60309 16 A 2P + E
- mounting mode
- Rack-mounted
- Rack units
- 0U
- Mounting position
- Vertical
- permissible voltage
- 100…240 V
- Max line current
- 16 A
- Input current limits
- 16 A
- Load capacity
- 3700 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 18 IEC 60320 C13 ; 2 IEC 60320 C19
- Product certifications
- METI Denan; VDE
- Standards
- CSA C22.2 No 60950; IEC 60950; UL 60950-1
- Ambient air temperature for operation
- -5…60 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Number of Units in Package 1
- 1
- Country of origin
- IN
- Warranty (in months)
- 24
- Nominal current
- 16 A
- Mounting direction
- Vertical
- Electrical connection
- Connection cable with plug
- Cable length
- 3 m
- Number of C13 socket outlets
- 18
- Number of C19 socket outlets
- 2
- Length
- 44 mm
- Supply voltage
- 230 V
- Overvoltage category
- 1
- Interface ethernet
- Yes
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 0731304277033
- SAP 1000455521
- Code 8795123
Product Documentation
