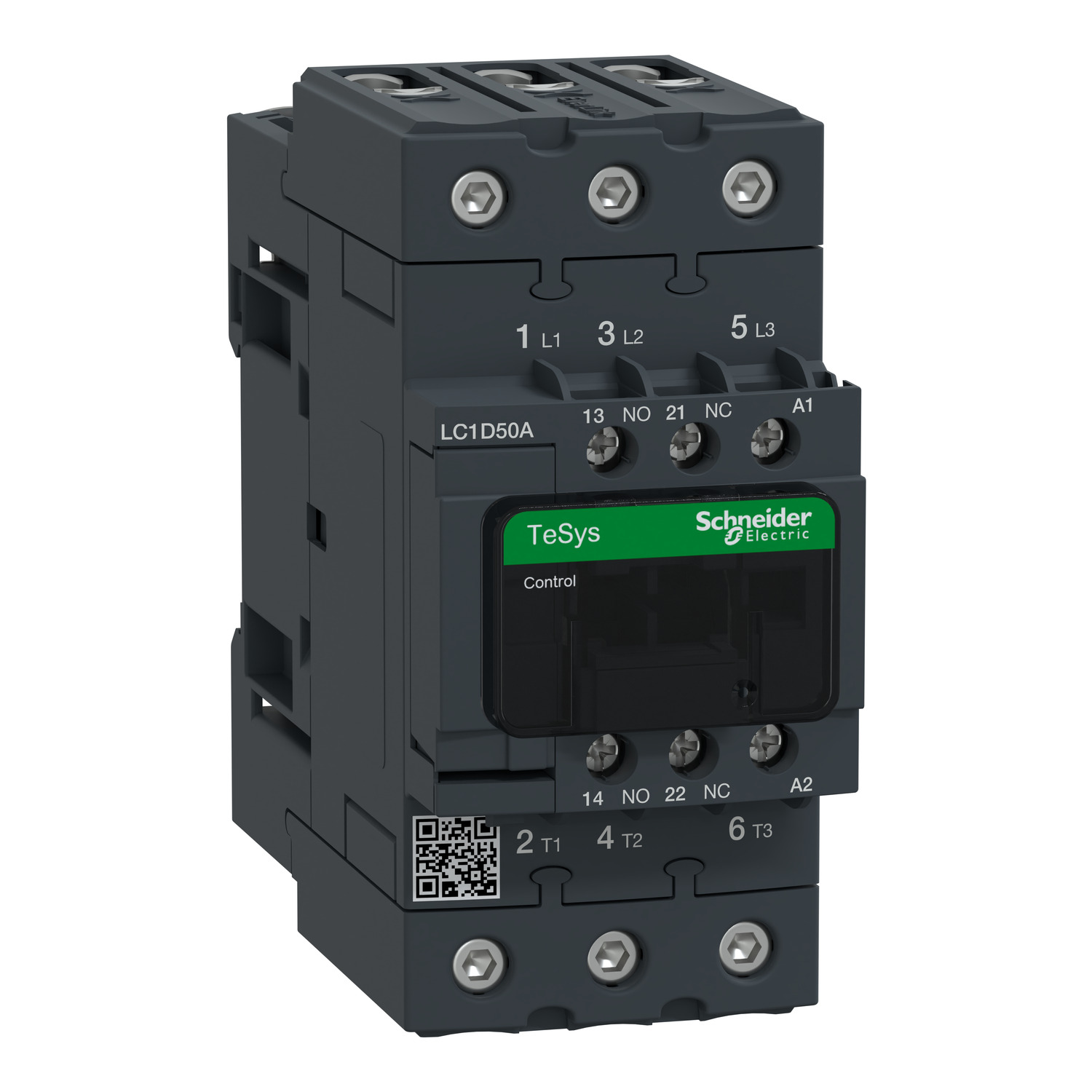

Schneider TeSys D Contactor LC1D50A 50A 3P 100-250V AC/DC Coil

Schneider Electric LC1D50AKUE — TeSys Deca Advanced contactor. Three-pole (3NO) AC-3 rated power contactor with wide-range electronic control coil. TeSys D LC1D50A contactor, 50 A / 22 kW at 400 V AC-3 duty (80 A AC-1), 100-250V AC/DC control circuit, 1NO+1NC integrated auxiliary, EverLink screw connectors, 55 mm frame. Applied in low-voltage switchgear panels, main and sub-distribution boards, motor control centres and marine/offshore control systems. Conforms to IEC/EN 60947-4-1, UL 508 and CSA C22.2 No.14.

Series

TeSys D (Deca Advanced)

Poles

3P (3NO)

Rated Current AC-3

50 A (≤440 V)

Rated Power AC-3

22 kW at 400 V

Rated Current AC-1

80 A

Utilisation Categories

AC-1 / AC-3 / AC-3e

Coil Voltage

100-250V AC/DC

Coil Type

wide-range electronic

Auxiliary Contacts

1NO + 1NC integrated

Rated Impulse Withstand Uimp

6 kV

Operating Rate

up to 3600 cycles/h

Ambient Temperature

up to 60 °C

Width

55 mm

Mounting

35 mm DIN rail or screw

Terminals

EverLink screw connectors

Standard

IEC/EN 60947-4-1

MPN

LC1D50AKUE

EAN

3606480988257

Number of poles

3

Rated current

50 A

HS Code

8536.50
