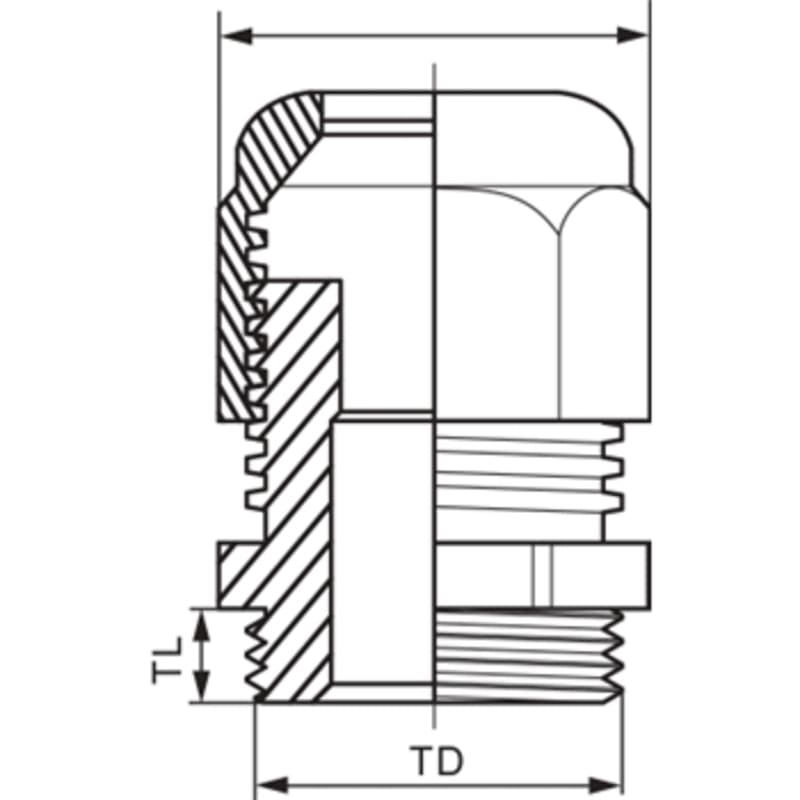

Schneider Electric Thorsman Glands - cable gland - grey - M20 - diameter 6 to 12 ISM71503
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM71503 Thorsman Nipple, M20, 6-12mm, grey.
Technical Specifications
- Manufacturer part number (MPN)
- ISM71503
- EAN / GTIN
- 3606480077203
- Sales unit
- pcs
- Package quantity
- 20 pcs
- IP rating
- IP68
- Thread size
- M20
- product range
- Thorsman Glands
- product type
- Cable gland
- colour
- Grey (RAL 7035)
- quantity per package
- Set of 20
- Material
- PA6
- ISO thread
- M20
- Cable outer diameter
- 6…12 mm
- IP-Class
- IP68
- operating temperature
- -30…80 °C permanently; -30…150 °C intermittently
- Warranty (in months)
- 18
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 20
- Pitch thread
- 2.5 mm
- Thread length
- 9 mm
- Wrench width
- 20 mm
- Hexagon angular dimension
- 14 mm
- Suitable for cable diameter
- 6–12 mm
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Halogen free
- Yes
- Glass-fibre reinforced
- Yes
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- RAL-number
- 7035
- Bend radius protection/trumpet flare
- Yes
- With locknut
- Yes
- Snapping in opening
- No
- Multi seal area
- Yes
- Flat cable coupling
- No
- With strain relief
- Yes
- Type of sealing
- Membrane
- Separable screw gland
- Yes
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480077203
- SAP 1000488745
- Code 8601949
Product Documentation
More from Schneider Electric
Schneider Electric
CP Data cable Cat 6A STP S-One 5M White
VDICP4X00501
Schneider Electric
Patch CORD STP CAT. 6A 5M Yellow
ACTPC6ASFLS50YL
Schneider Electric
MON.Screw TMP-C3 5X41
3764025
Schneider Electric
LED module uni 120VAC push-in
ZBVG15
Schneider Electric
Schneider Electric PratiKa industrial socket - 63 A - 3P + E - 200...250 V AC - IP67
81679
Schneider Electric

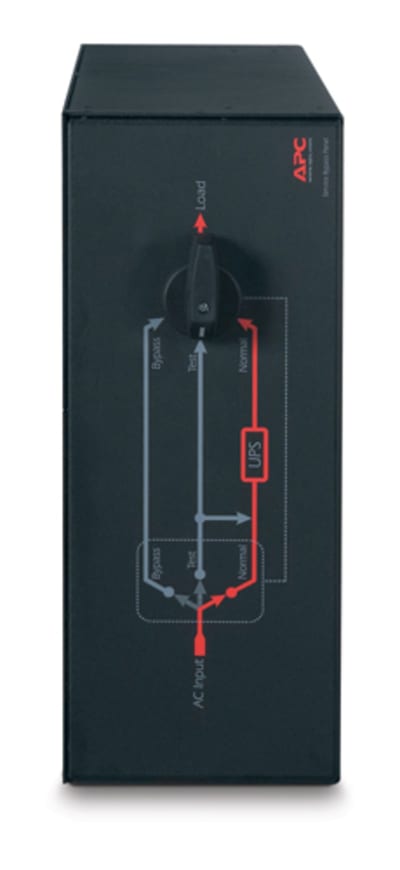

Schneider Electric APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (3) 30A Hardwire Output SBP16KRMI4U
Schneider Electric

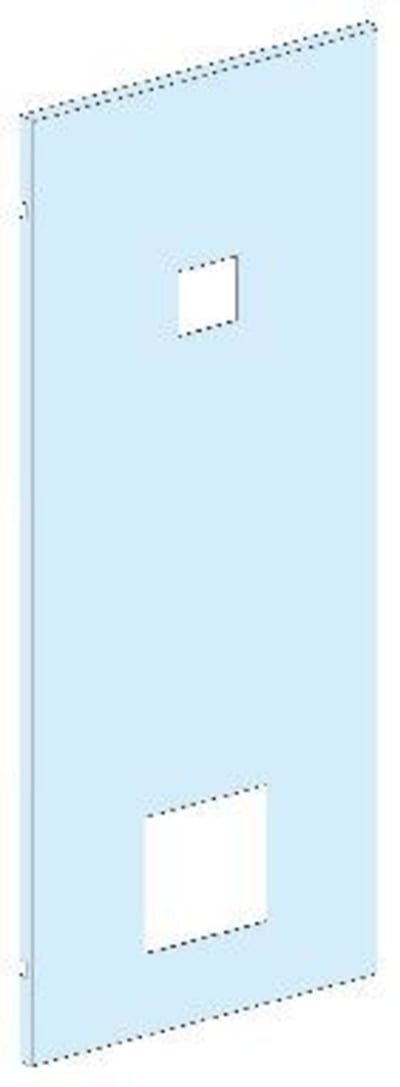

Door for Kondensatorbatteri PrismaSeT G/P
LVS03970
Schneider Electric

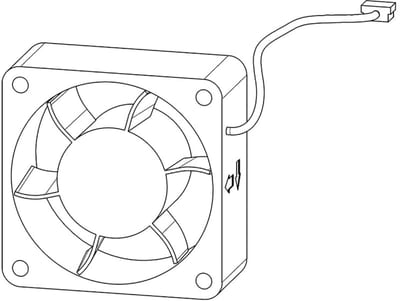

Fan for ATV600/900 0,75-5,5kW
